Wheel 150 mm
Novatech
Rendelési szám:
199804811
EAN:
4031582319903
Termékszám:
ITP 150x50-Ø25 HL60
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Novatech castor wheel features a robust aluminium body construction with a 150mm diameter and 50mm wide casted polyurethane ...
Részletek
Egyedi vagy nagy mennyiség? Kérjen árajánlatot most.
CAD fájlok
Letöltheti a termék műszaki adatait.

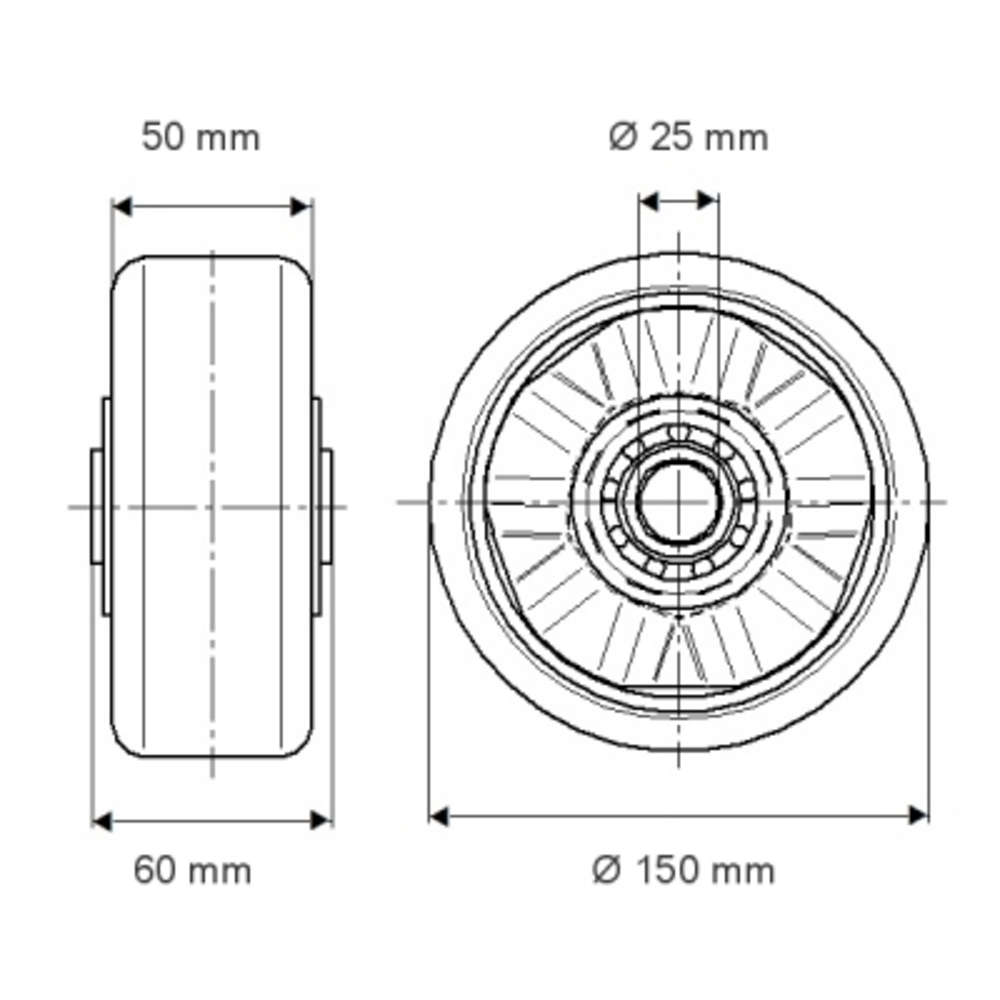

The Novatech castor wheel features a robust aluminium body construction with a 150mm diameter and 50mm wide casted polyurethane tread, incorporating precision ball bearings for smooth operation. The wheel has an axle hole diameter of 25mm and a hub length of 60mm, providing secure mounting capabilities. Load specifications include a static capacity of 1300kg, whilst dynamic load capacity reaches 650kg at speeds up to 4km/h and 520kg at speeds up to 6km/h, making it suitable for demanding industrial applications requiring reliable mobility solutions.
Tekercs teljesítmény
Mozgási zaj
Lemorzsolódás
Korrózióállóság
Cikkszámok
Alapvető attribútumok
Kerék
Special Features
TENTE's OMIKRON castors are engineered for exceptional performance under extreme conditions. Featuring a solid welded steel construction, these castors can transport the heaviest loads with high steering stability and excellent maneuverability.
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Ergonomically friendly use
Wheels with optimised roll resistance to lighten the load for the user.
