CAD files

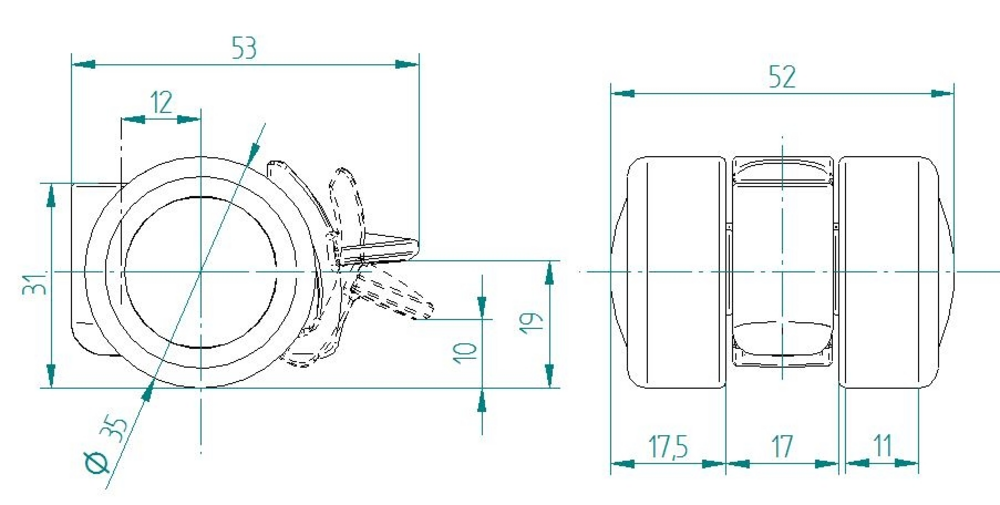

The Stylea is a swivel caster with wheel brake intended for bedside tables, furniture, media furniture, and office furniture. The fitting is a blind hole for a B10 fitting, which provides a secure mounting point for the caster without a through-hole. The housing features a swiveling stem made of polyamide, which allows the caster to change direction during movement and suits furniture that is repositioned regularly. The wheel, with a diameter of 1.57 in, runs on a plain bearing with spacer tube, and its thermoplastic rubber tread is mounted on a polypropylene body that together form the complete wheel assembly. The overall height of the caster is 1.38 in, a compact dimension that suits low-profile furniture designs. The static load capacity is 176.37 lb, and the dynamic load capacity is 88.18 lb at a speed of 3 km/h, or approximately 1.86 mph. Engineers should note that the dynamic rating applies only at the stated speed, while the static rating represents the maximum load at rest.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Article Number
5925PJI040L51-10 LH 9011/9011/9011/7016
EAN
4031582359862
S4 Material Number
990770014
Core attributes
Type
Swivel caster with wheel brake
Overall width
2.05 in
Load capacity at 3 km/h
88.18 lb
Load capacity Static
176.37 lb
Overall Height
1.38 in
Temperature range (Maximum)
140 °F
Temperature range (Minimum)
-4 °F
Overall weight
0.13 lb
Product name
Stylea
Standard
EN12528 - Furniture Castors
Electric conductive
Stainless
Fitting
Fitting type
Blind hole for B10 fitting
Bolt hole diameter
0.39 in
Housing
Housing Color
Graphite black (RAL9011)
Fork shape
Twin wheel housing
Housing Material
Polyamide
Swivel bearing
Stem, swiveling
Dome diameter
0.6 in
Swivel interference
3.54 in
Offset
0.47 in
Swivel radius
1.77 in
Wheel
Hardness of tread (A)
87 Shore A
Body material
Polypropylene
Tread material
Thermoplastic rubber
Axle hole diameter
0 in
Hub length
0 in
Tread width
0.47 in
Diameter
1.57 in
Body width
0.47 in
Threadguards
Without threadguard
Tread color
Anthracite gray (RAL7016)
Axle
Riveted
Bearing
Plain bearing with spacer tube
Wheel color
Graphite black (RAL9011)
special-features-image
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic hydrocarbons or chromium (VI)
Tested quality
Tested in our own laboratory for compliance with European standards
Prevents unintended movement
Wheel lock for manual operation
Variable fitting options
Different fitting dimensions for a wide range of applications
Colour matching
Colors can be adapted to match the product design
Painted surface
Gold, chrome, or glossy colors
Visual integration
Different dome diameters for a perfect transition from the castor to the application
Non-marking movement
Wheels with reduced abrasion and minimal cleaning requirements
Chemical-resistant components
Insensitive to many cleaning agents and chemical substances
Optimised manoeuvrability
Twin wheel castor with high maneuverability due to differential effect
Reduced cleaning
Thanks to mainly smooth surfaces, castors are quick and easy to clean
Skip product gallery

Matching Products

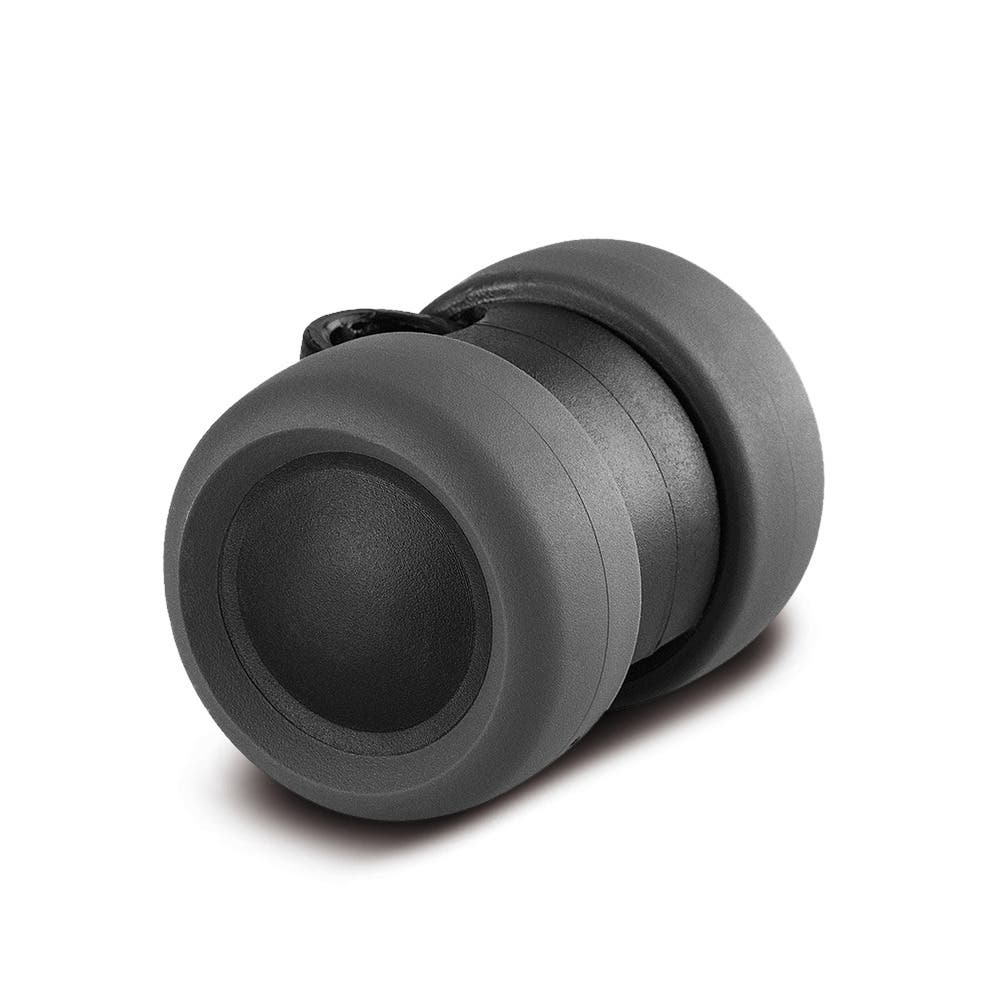

Swivel caster 1.57 in
