Microscopic Equipment
Microscopic Equipment Casters and Wheels
Swivel castor 5.91 in
The Linea clinic load swivel castor has a solid round stem fitting with a polyamide housing containing two ball races and a reinforced or stainless swivel bearing. The polyamide wheel body houses a precision ball bearing wheel with a polyurethane tread injected onto it. This 5.91 inch diameter wheel stands 6.1 inches tall overall and has a load capacity of 440.92 pounds at 3 km/h or 881.85 pounds static.
Swivel castor with central , total lock 5.91 in
The Linea clinic load swivel castor with central total lock has a polyamide housing with a short version stem featuring a cam hole for fitting profile bars. It contains two ball races with a reinforced or stainless swivel bearing. The polyamide wheel body houses a precision ball bearing and has a polyurethane tread that is injection molded. This 5.91 inch diameter wheel has an overall height of 6.1 inches and a load capacity of 440.92 pounds at 3 km/h or 881.85 pounds static.
Swivel castor with central, total or directional lock 5.91 in
The Linea clinic load is a swivel caster with central, total or directional lock designed for demanding medical applications. The caster features a stem with cam hole for profile bars, short version fitting that ensures secure attachment to equipment frames. The housing is constructed from durable polyamide material and incorporates two ball races, reinforced or stainless swivel bearing system for smooth operation and enhanced durability. The wheel assembly consists of a polyamide body with polyurethane, injected tread material that provides excellent floor protection and quiet operation, while precision ball bearing ensures reliable performance with a 5.91 inch diameter. The caster has an overall height of 6.1 inches for optimal clearance. Load specifications include a dynamic capacity of 440.92 lb at speeds up to 1.86 mph and a static load capacity of 881.85 lb, making it ideal for hospital beds, hospitals, microscopic equipment, nursing and retirement homes, surgery robots, and surgery tables.

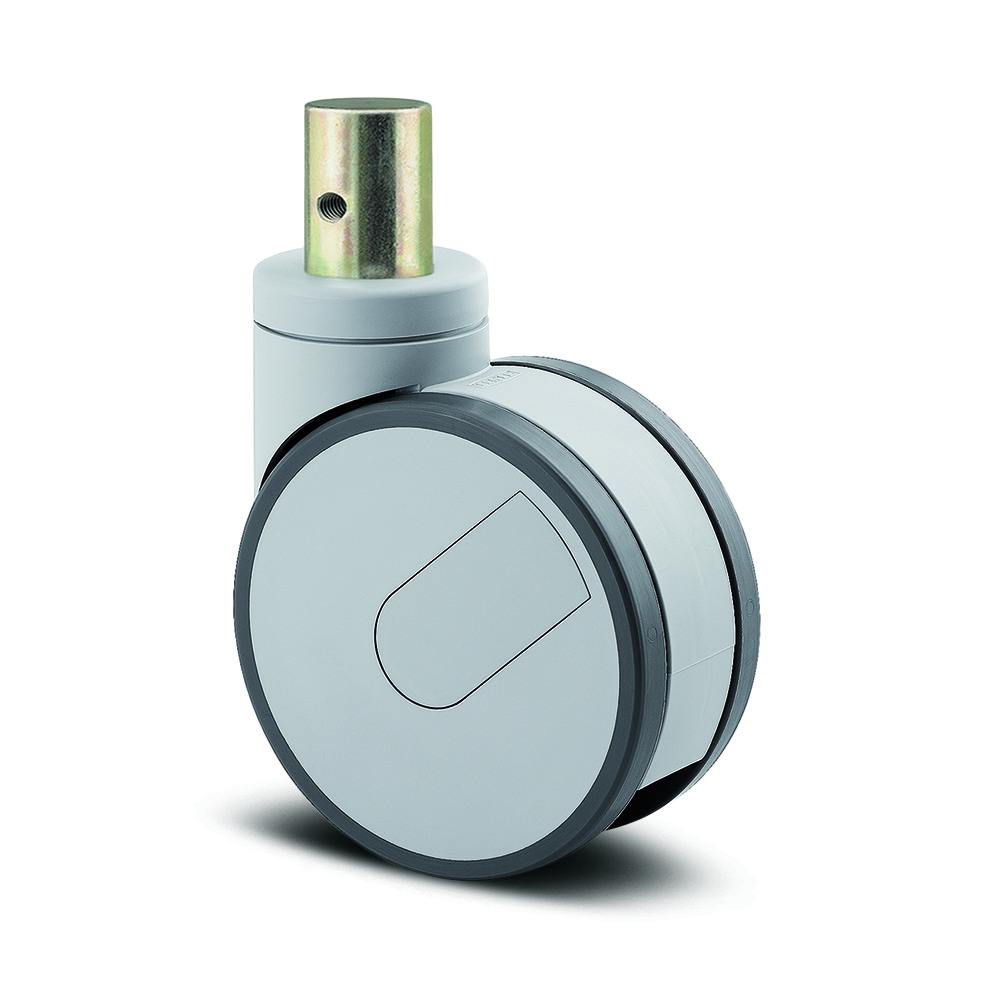

Swivel castor 4.92 in
The Integral twin torsion swivel castor has a solid round stem fitting with a heavy steel sheet housing and precision ball bearing swivel bearing. The wheel body is made of polyamide with a polyurethane injected tread. The wheel has a precision ball bearing and is stainless. This castor has a 4.92 inch diameter wheel and an overall height of 5.91 inches. It has a load capacity of 275.58 lb at 3 km/h and 4 km/h. The static load capacity is 551.16 lb.
Swivel castor with central, total or directional lock 4.92 in
The Integral twin torsion swivel castor has a central total or directional lock, a short version stem with cam holes for fitting profile bars, a heavy steel sheet housing, a precision ball bearing swivel bearing, a polyamide wheel body material, a polyurethane injected tread material, a stainless precision ball bearing wheel, a 4.92 inch wheel diameter, a 5.91 inch overall height, a 275.58 lb load capacity at 3 km/h, a 275.58 lb load capacity at 4 km/h, a 551.16 lb static load capacity. The fitting area on washable beds must be sealed by the hospital bed manufacturer.
Swivel castor with central , total lock 4.92 in
The Integral twin torsion is a swivel castor with central total lock, featuring a steel sheet housing for heavy duty use and a short version stem with cam hole designed for fitting profile bars. The precision ball bearing swivel bearing allows for smooth 360 degree rotation. The wheel has a precision ball bearing and is made of stainless steel with a diameter of 4.92 inches. The castor has a polyurethane tread injected onto the wheel for quiet movement and traction. With an overall height of 5.91 inches, the Integral twin torsion castor has a load capacity of 275.58 pounds at 3 km/h and a static load capacity of 826.73 pounds. The fitting area must be sealed by the hospital bed manufacturer to allow the castors to be washed for use in washable hospital beds.

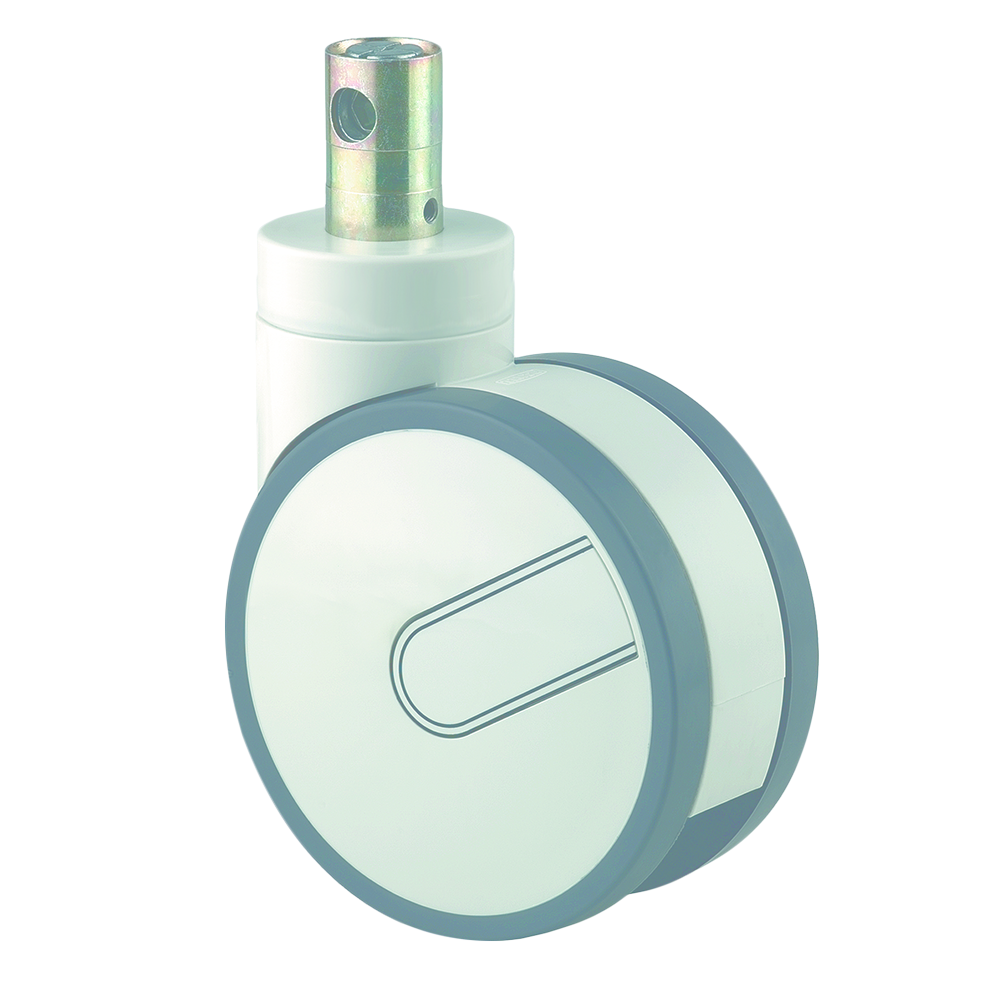

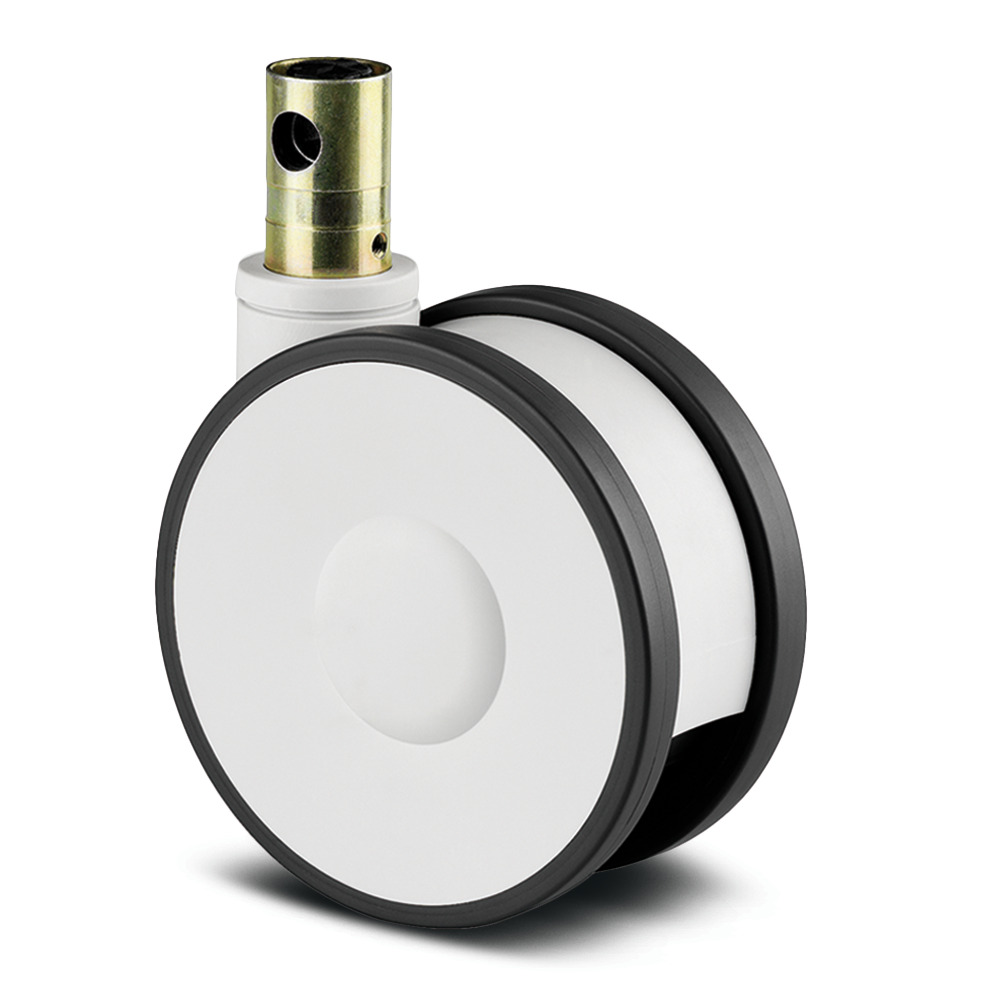

Swivel castor with central , total lock 5.91 in
The Integral twin torsion is a swivel caster with central, total lock designed for precision mobility applications. The caster features a stem with cam hole for profile bars, short version fitting that enables secure attachment to equipment frames. The housing is constructed from steel sheet, heavy material and incorporates a precision ball bearing swivel bearing system for smooth directional changes and enhanced durability. The wheel assembly consists of a polyamide body with polyurethane, injected tread material, mounted on precision ball bearing for optimal rolling performance and longevity. The wheel diameter measures 5.91 inches with an overall height of 7.6 inches. Load capacity specifications include dynamic ratings of 551.16 lb at 1.86 mph and 551.16 lb at 2.49 mph, with a static load capacity of 1653.47 lb, making it suitable for demanding medical and laboratory applications including C-Arms, CT Scanners, MRI, X-Ray equipment, hospital beds, microscopic equipment, surgery robots, and surgery tables.
