Swivel caster 2.56 in
- Non-hazardous materials
- Tested quality
- Colour matching
CAD files
Data sheets
Matching Products

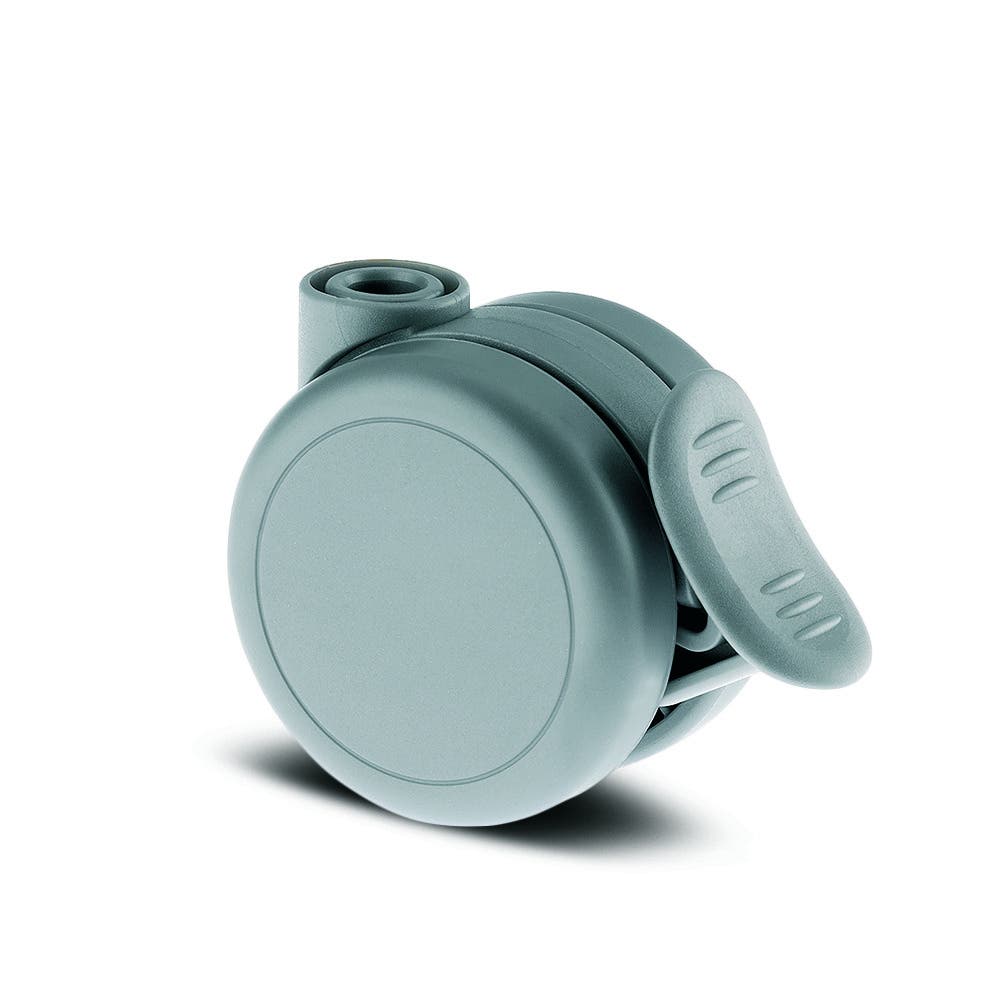

The Stylea is a swivel caster with wheel brake designed for versatile mobility applications including bedside tables, furniture, media furniture, and office furniture. This caster features a blind hole for B10 fitting, enabling secure and straightforward installation on compatible equipment. The housing is constructed from polyamide material and incorporates a stem that swivels, providing multidirectional movement and enhanced maneuverability. The wheel assembly consists of a polyamide body with an identical tread material, ensuring consistent performance and durability across the contact surface. The wheel is equipped with a plain bearing with spacer tube, which facilitates smooth rotation while maintaining structural integrity. The wheel diameter measures 2.56 inches, providing an appropriate size for furniture and light-duty applications. The overall height of the caster is 2.68 inches, which should be considered during installation and clearance planning. The static load capacity is rated at 220.46 pounds, indicating the maximum weight the caster can support when stationary. The dynamic load capacity is 110.23 pounds at a maximum speed of 1.86 miles per hour, establishing the operational limits for mobile applications. These specifications make the Stylea suitable for applications requiring reliable, controlled mobility with integrated braking functionality.
