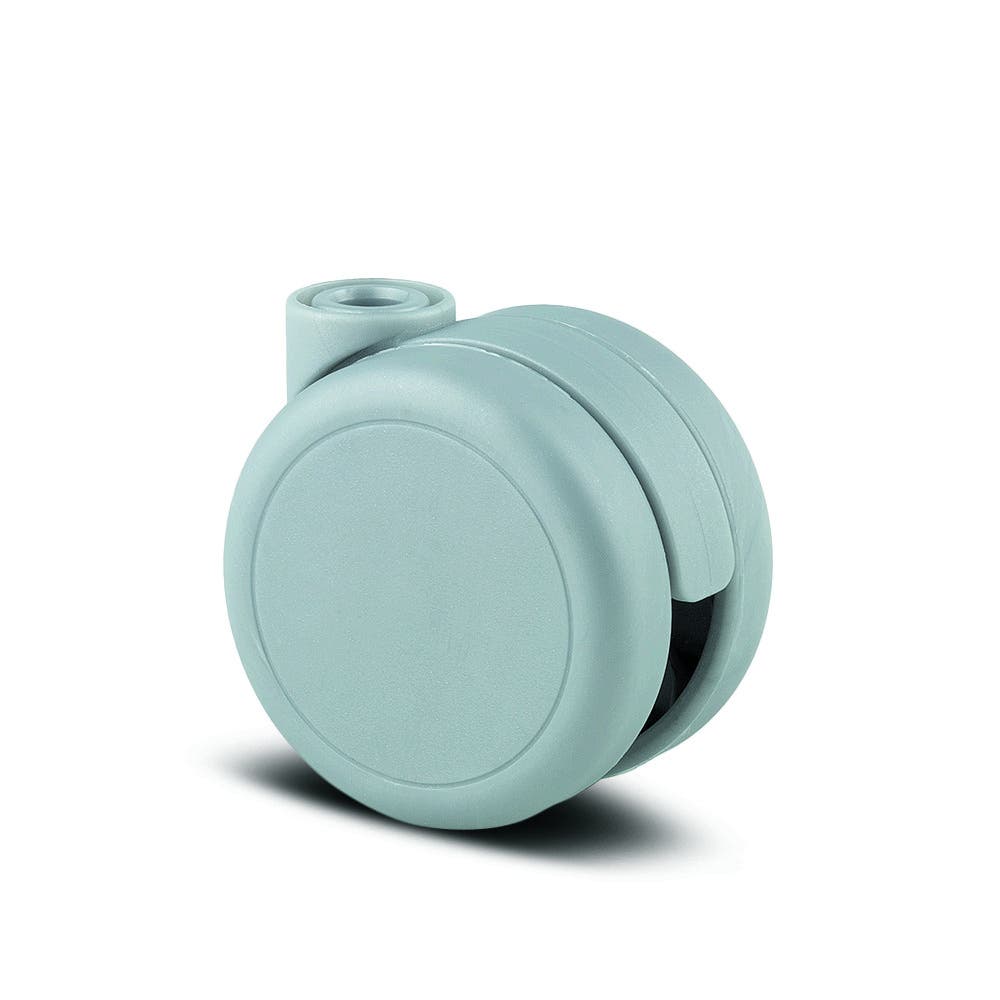

Swivel caster with wheel brake 2.56 in
Stylea
Order number:
990074553
detail.eanLabel
4031582311198
Product number:
5925UOI065L51-10D23 ~9006/~9006/~9006
- Non-hazardous materials
- Tested quality
- Colour matching
The Stylea is a swivel caster with wheel brake, intended for bedside tables, furniture, media furniture, and office furniture ap...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.
The Stylea is a swivel caster with wheel brake, intended for bedside tables, furniture, media furniture, and office furniture applications. The fitting is a blind hole for a B10 fitting, providing a secure mounting interface. The housing consists of a swiveling stem made of polyamide, allowing the caster to align with the direction of travel for smooth directional control. The wheel has a diameter of 2.56 inches and uses a plain bearing with spacer tube. The wheel body is made of polyamide, and the tread material is identical with the wheel body. The overall height is 2.68 inches, which should be considered when planning clearance beneath furniture and mounting layouts. The static load capacity is 220.46 lb, and the dynamic load capacity is 110.23 lb at a speed of 1.86 mph, so both conditions should be considered during specification.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Fitting
Housing
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic hydrocarbons or chromium (VI)
Tested quality
Tested in our own laboratory for compliance with European standards
Prevents unintended movement
Wheel lock for manual operation
Colour matching
Colors can be adapted to match the product design
Painted surface
Gold, chrome, or glossy colors
Visual integration
Different dome diameters for a perfect transition from the castor to the application
Low wear and tear wheels
Durable wheels with extremely low wear
Chemical-resistant components
Insensitive to many cleaning agents and chemical substances
Optimised manoeuvrability
Twin wheel castor with high maneuverability due to differential effect
Reduced cleaning
Thanks to mainly smooth surfaces, castors are quick and easy to clean
