Wheel 9.84 in
Novatech
detail.eanLabel
4031582389548
Product number:
FTP250x80-Ø35 HL90 TFR
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Novatech wheel is a precision-engineered caster wheel designed for demanding industrial applications across aerospace, autom...
Details
Custom or high volume? Request a quote now.
Data sheets

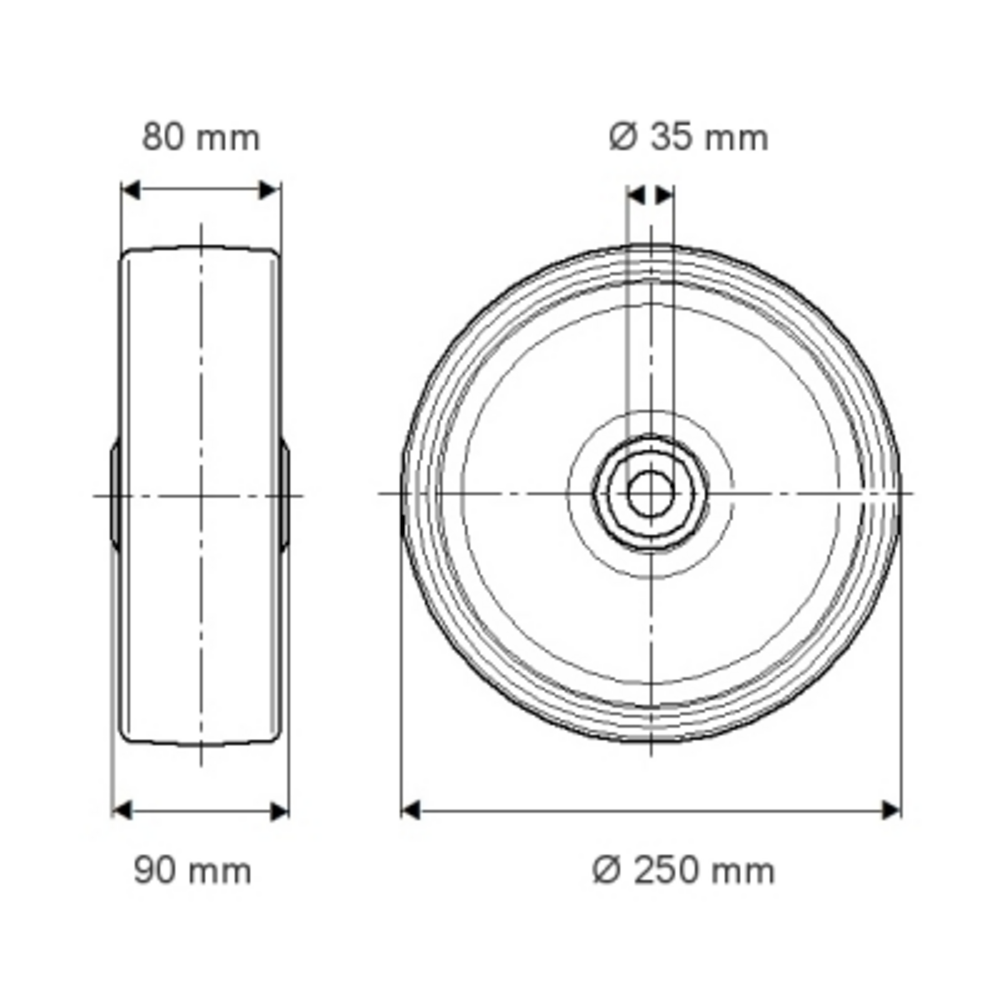

The Novatech wheel is a precision-engineered caster wheel designed for demanding industrial applications across aerospace, automotive, and logistics sectors. This wheel features a diameter of 9.84 inches with a polyurethane casted tread measuring 3.15 inches in width, providing excellent durability and traction. The wheel body is constructed from casting material and is equipped with a precision ball bearing for smooth rotation and extended service life. The hub length measures 3.54 inches, while the axle hole diameter is 1.38 inches, ensuring compatibility with standard caster assemblies. The wheel demonstrates impressive load capacity specifications, supporting a static load of 9523.96 pounds. For dynamic applications, the wheel maintains a load capacity of 3968.32 pounds at speeds up to 3.73 miles per hour, or 4761.98 pounds at 2.49 miles per hour, making it suitable for both high-speed and heavy-load transport scenarios. This versatile caster wheel is engineered for use in production trolleys, automated shuttle systems, heavy AGV systems, forklift trucks, and various material handling equipment across multiple industrial sectors.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic hydrocarbons or chromium (VI)
Tested quality
Tested in our own laboratory for compliance with European standards
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort
Non-marking movement
Wheels with reduced abrasion and minimal cleaning requirements
Ergonomically friendly use
Wheels with optimised rolling resistance to reduce user effort
