Wheel 5.91 in
Duratech
Order number:
199801260
detail.eanLabel
4031582320022
Product number:
MOP 150x50-Ø30 HL60
- Non-hazardous materials
- Tested quality
- Low wear and tear wheels
The Duratech Wheel is a precision caster wheel engineered for heavy-duty industrial applications, featuring a diameter of 5.91 i...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.
Data sheets

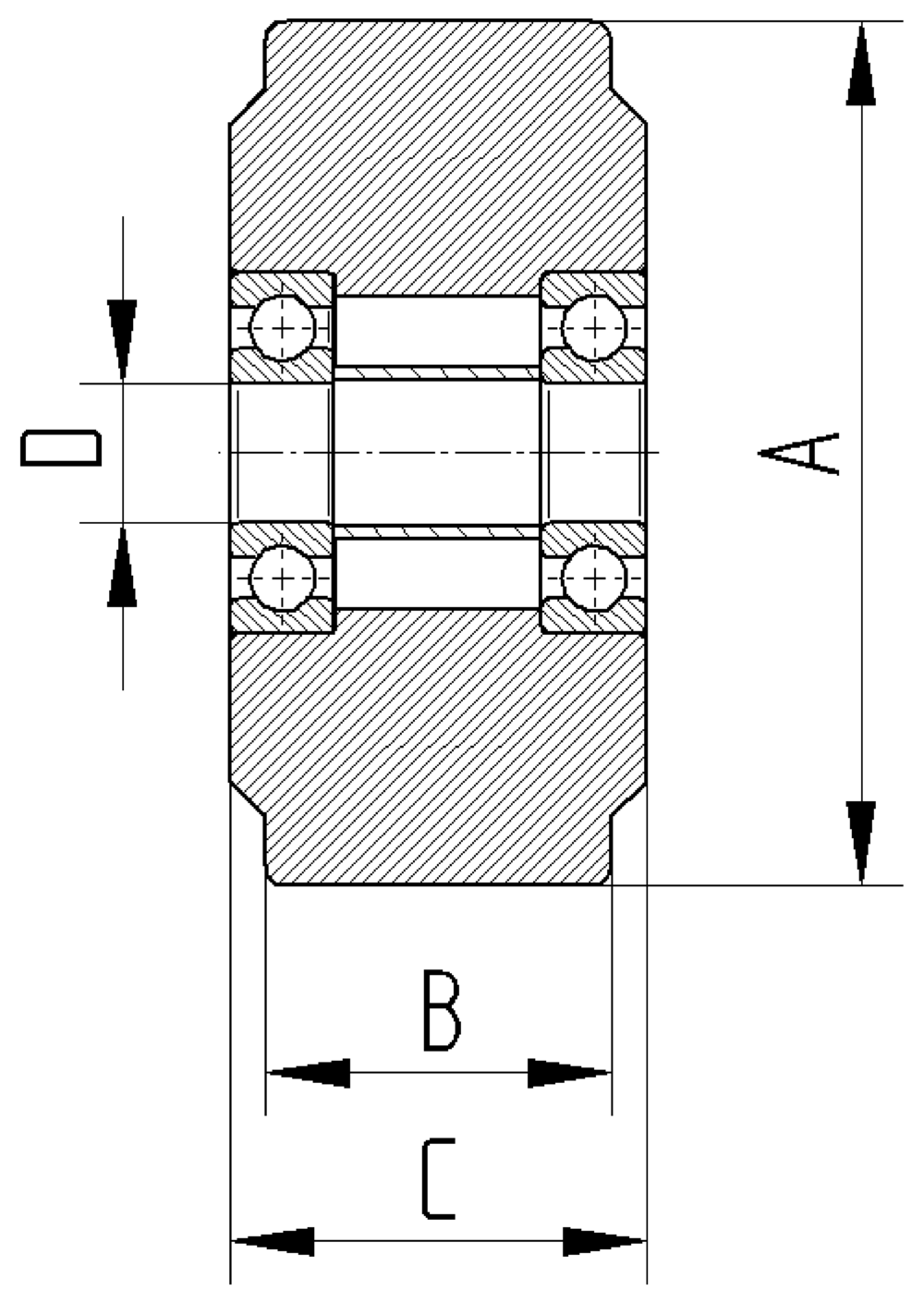

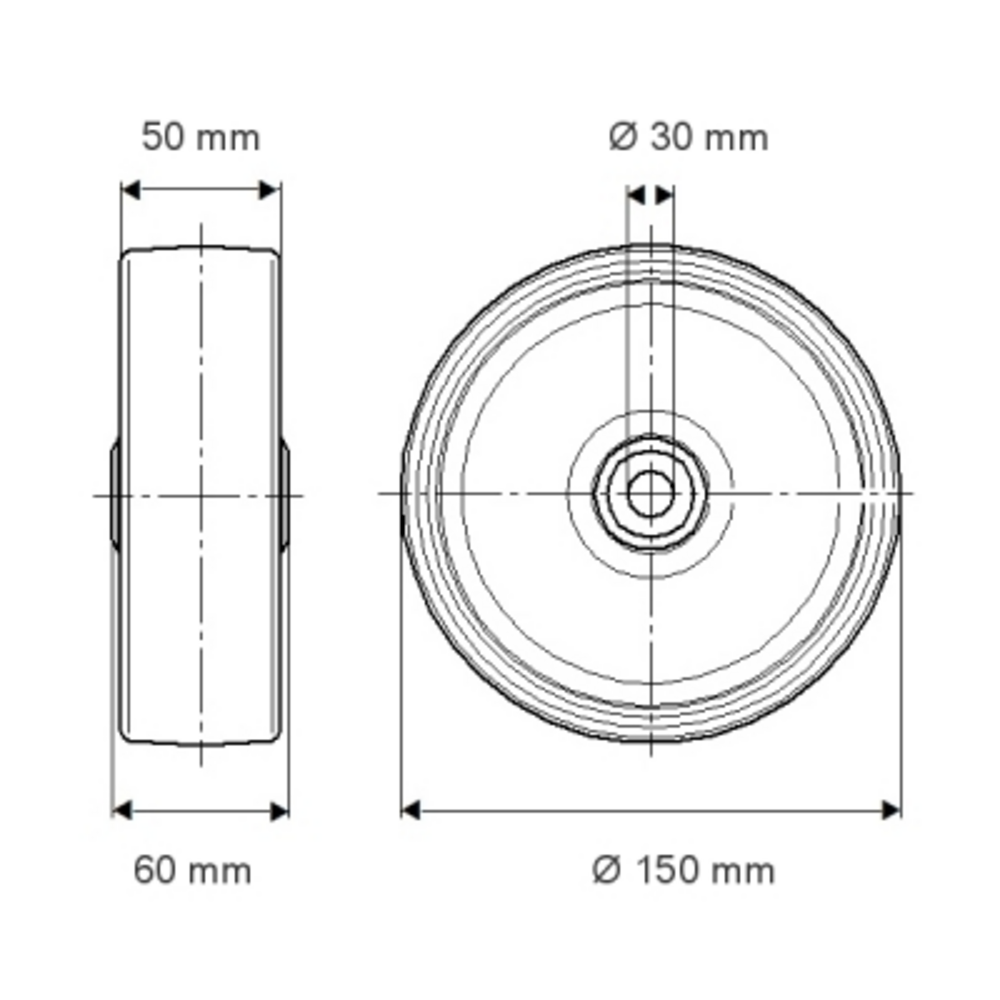

The Duratech Wheel is a precision caster wheel engineered for heavy-duty industrial applications, featuring a diameter of 5.91 inches and a tread width of 1.97 inches. The wheel body is constructed from polyamide, super heavy material, with the tread being identical to the wheel body composition. The hub length measures 2.36 inches, and the axle hole diameter is 1.18 inches, accommodating standard caster mounting configurations. The wheel is equipped with a precision ball bearing for smooth rotation and extended service life. The static load capacity reaches 9,259.4 pounds, while the dynamic load capacity varies depending on operational speed: 4,629.7 pounds at 3.73 miles per hour and 5,555.64 pounds at 2.49 miles per hour. These specifications make the Duratech Wheel suitable for demanding caster applications requiring reliable performance and substantial load-bearing capability.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic hydrocarbons or chromium (VI)
Tested quality
Tested in our own laboratory for compliance with European standards
Low wear and tear wheels
Durable wheels with extremely low wear
