Wheel 3.94 in
Basetech
detail.eanLabel
4031582390599
Product number:
POR100x36-Ø12 white TFR
- Non-hazardous materials
- Tested quality
- Low wear and tear wheels
The Basetech Wheel is a polypropylene caster wheel designed for roll cages and store fixtures and display applications, featurin...
Details
Custom or high volume? Request a quote now.
Data sheets

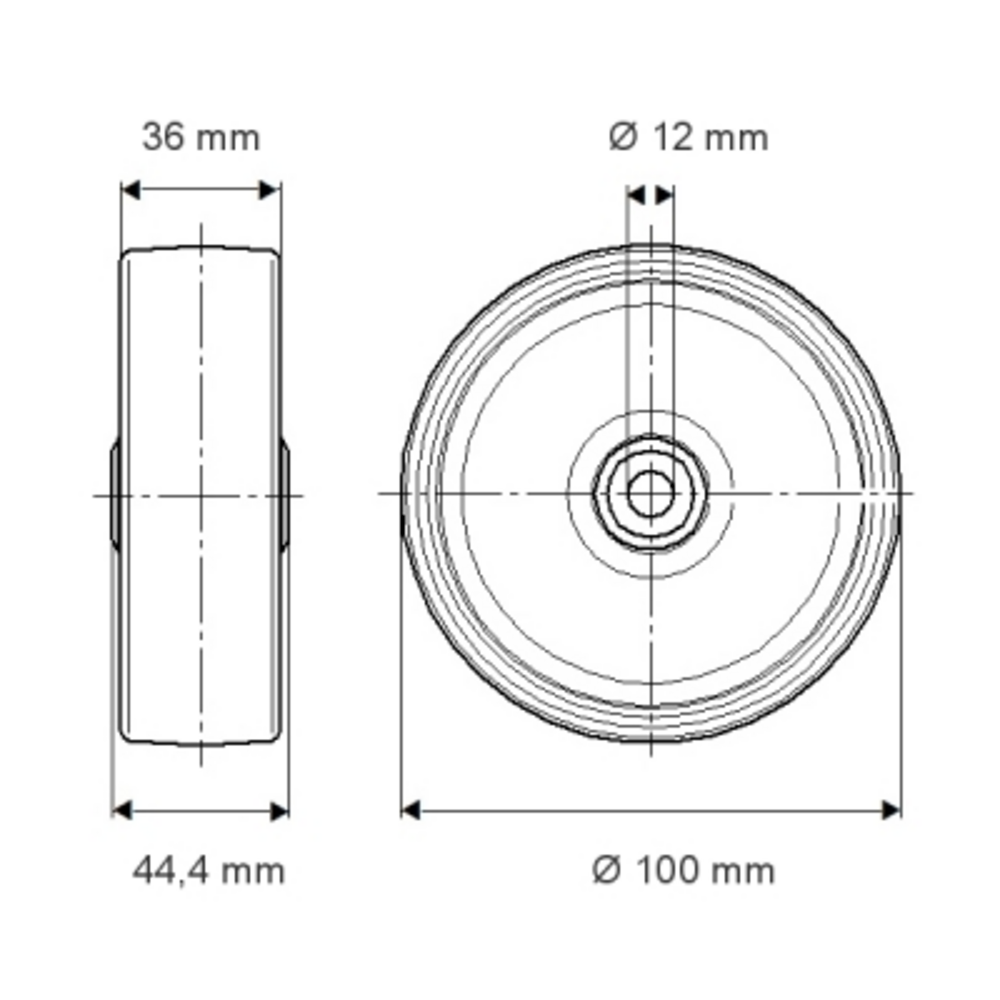

The Basetech Wheel is a polypropylene caster wheel designed for roll cages and store fixtures and display applications, featuring a wheel diameter of 3.94 inches with a tread width of 1.42 inches. The wheel is equipped with a roller bearing and incorporates a hub length of 1.75 inches with an axle hole diameter of 0.47 inches. This wheel delivers a static load capacity of 705.48 pounds and a dynamic load capacity of 352.74 pounds at a speed of approximately 2.5 miles per hour. The tread material is identical with the wheel body, ensuring consistent performance and durability throughout the component.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic hydrocarbons or chromium (VI)
Tested quality
Tested in our own laboratory for compliance with European standards
Low wear and tear wheels
Durable wheels with extremely low wear
