Wheel 3.94 in
Elastech heat
detail.eanLabel
4031582382594
Product number:
IDG100x35-Ø8 (DSG)
- Non-hazardous materials
- Tested quality
- Quiet rolling
The Elastech heat wheel is a specialized caster wheel engineered for demanding industrial applications, featuring a robust alumi...
Details
Custom or high volume? Request a quote now.
Data sheets

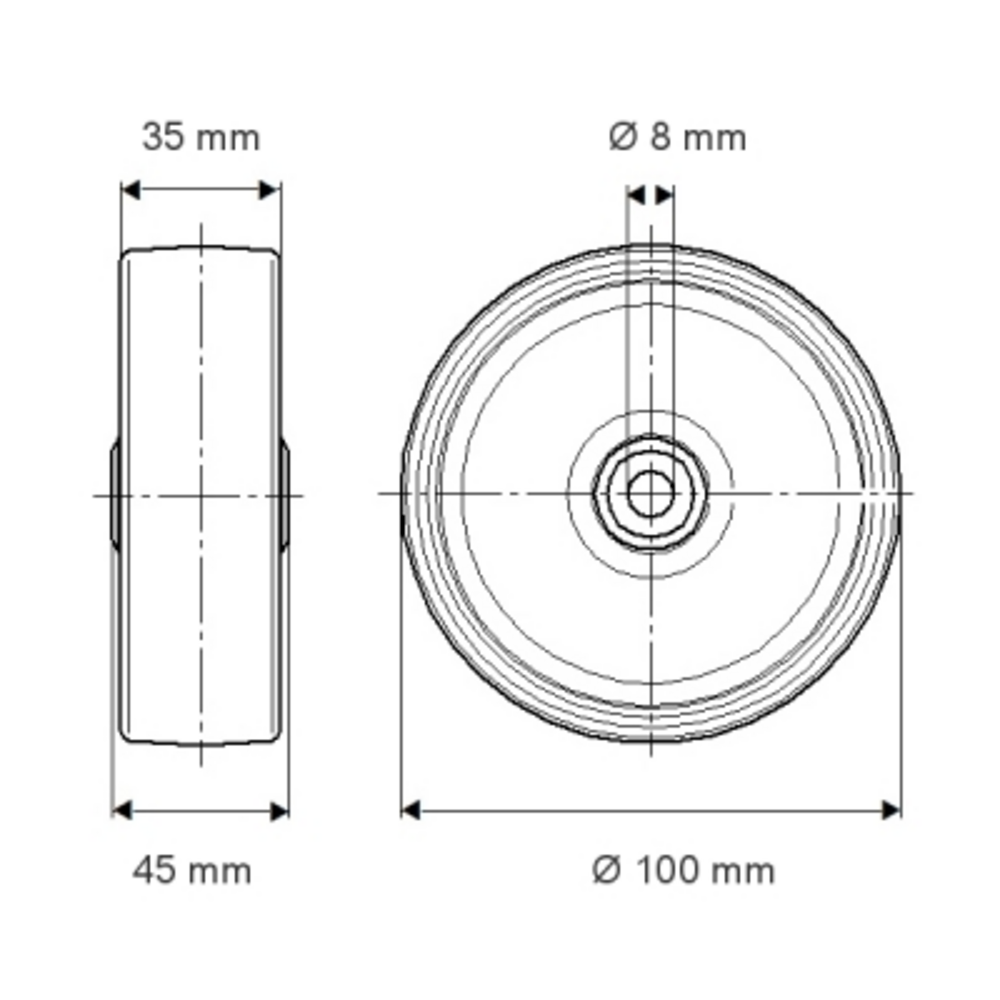

The Elastech heat wheel is a specialized caster wheel engineered for demanding industrial applications, featuring a robust aluminum body construction that provides durability and reliability. This wheel measures 3.94 inches in diameter with a tread width of 1.38 inches, designed to deliver optimal performance in confined spaces while maintaining structural integrity. The hub extends 1.77 inches in length, accommodating standard mounting configurations, and features a 0.31-inch axle hole diameter for secure fastening to caster assemblies. The tread is constructed from damping, heat-resistant material that effectively absorbs shock loads and maintains performance in elevated temperature environments, making it ideal for applications requiring thermal stability. The wheel incorporates a dry bearing bush system that ensures smooth rotation with minimal maintenance requirements. With a static load capacity of 352.74 pounds, this wheel is rated to support substantial weight loads while maintaining consistent performance characteristics. The combination of aluminum construction, heat-resistant tread material, and dry bearing technology makes the Elastech heat wheel an excellent choice for industrial caster applications where thermal resistance and load-bearing capability are critical operational requirements.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic hydrocarbons or chromium (VI)
Tested quality
Tested in our own laboratory for compliance with European standards
Quiet rolling
Soft wheel versions for a quiet working environment
Low-vibration transport
Extra soft wheels with good shock-absorbing properties
Certified conductivity
Conductive version to protect users and electrical devices from electrostatic discharge
Constant heat resistance
Wheels made of heat-resistant material for use in extreme environments
