Wheel 3.15 in
Duratech heat
detail.eanLabel
4031582393842
Product number:
WOO080x31 Ø12 TFR
- Non-hazardous materials
- Tested quality
- Constant heat resistance
The Duratech heat wheel is a caster wheel engineered for demanding industrial applications, featuring a compact diameter of 3.15...
Details
Custom or high volume? Request a quote now.
Data sheets

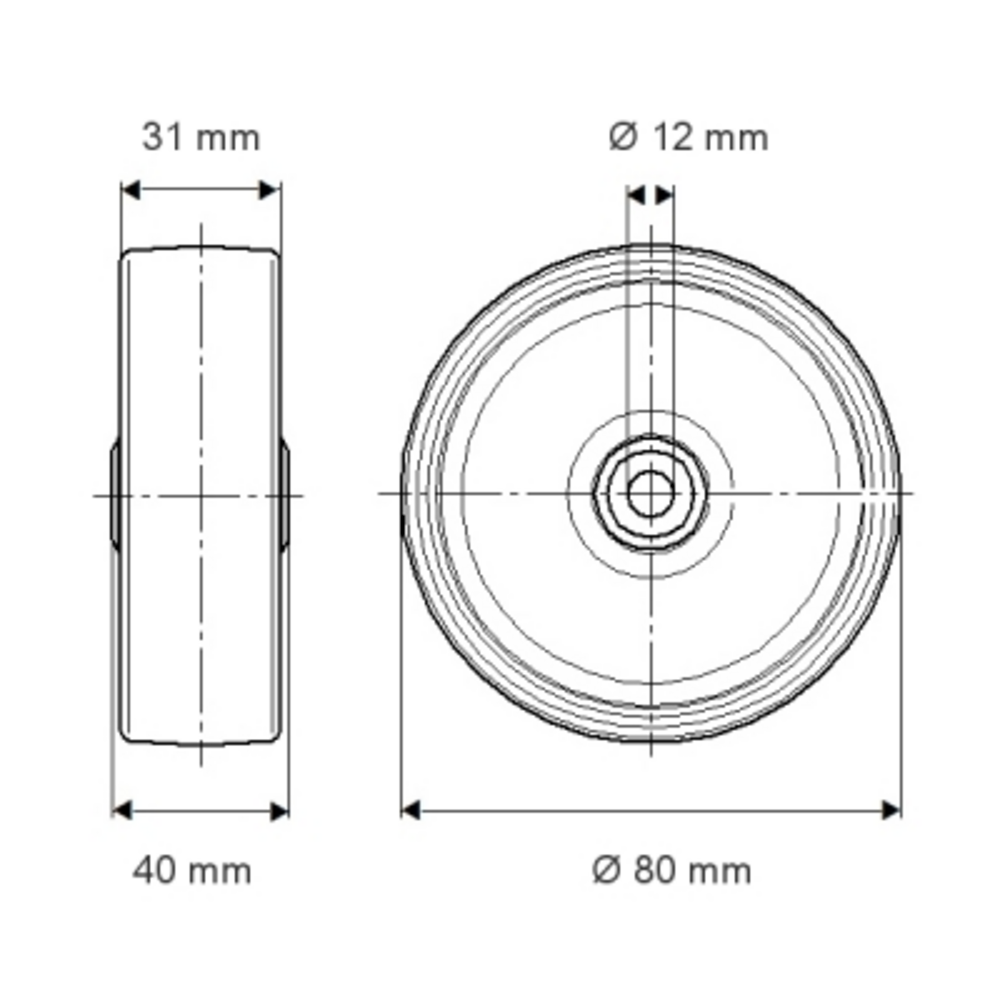

The Duratech heat wheel is a caster wheel engineered for demanding industrial applications, featuring a compact diameter of 3.15 inches with a tread width of 1.22 inches. The wheel body is constructed from thermoplastic synthetics with heat-resistant properties, and the tread material is identical with the wheel body for consistent performance and durability. The hub length measures 1.57 inches, while the axle hole diameter is 0.47 inches, accommodating standard mounting configurations. This wheel is equipped with a plain bearing for smooth rotation and reliable operation. The load capacity specifications indicate a static load rating of 881.85 pounds and a dynamic load capacity of 440.92 pounds at a speed of approximately 2.5 miles per hour, making it suitable for heavy-duty caster applications requiring both stability and controlled mobility in high-temperature environments.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic hydrocarbons or chromium (VI)
Tested quality
Tested in our own laboratory for compliance with European standards
Low wear and tear wheels
Durable wheels with extremely low wear
Constant heat resistance
Wheels made of heat-resistant material for use in extreme environments
