Wheel 15.75 in
Elastech
detail.eanLabel
4031582394412
Product number:
SEP400x80-Ø40 HL80 TFR
- Non-hazardous materials
- Tested quality
- Quiet rolling
The Elastech wheel is a precision caster wheel engineered for demanding industrial applications including AMR systems, automated...
Details
Custom or high volume? Request a quote now.
Data sheets

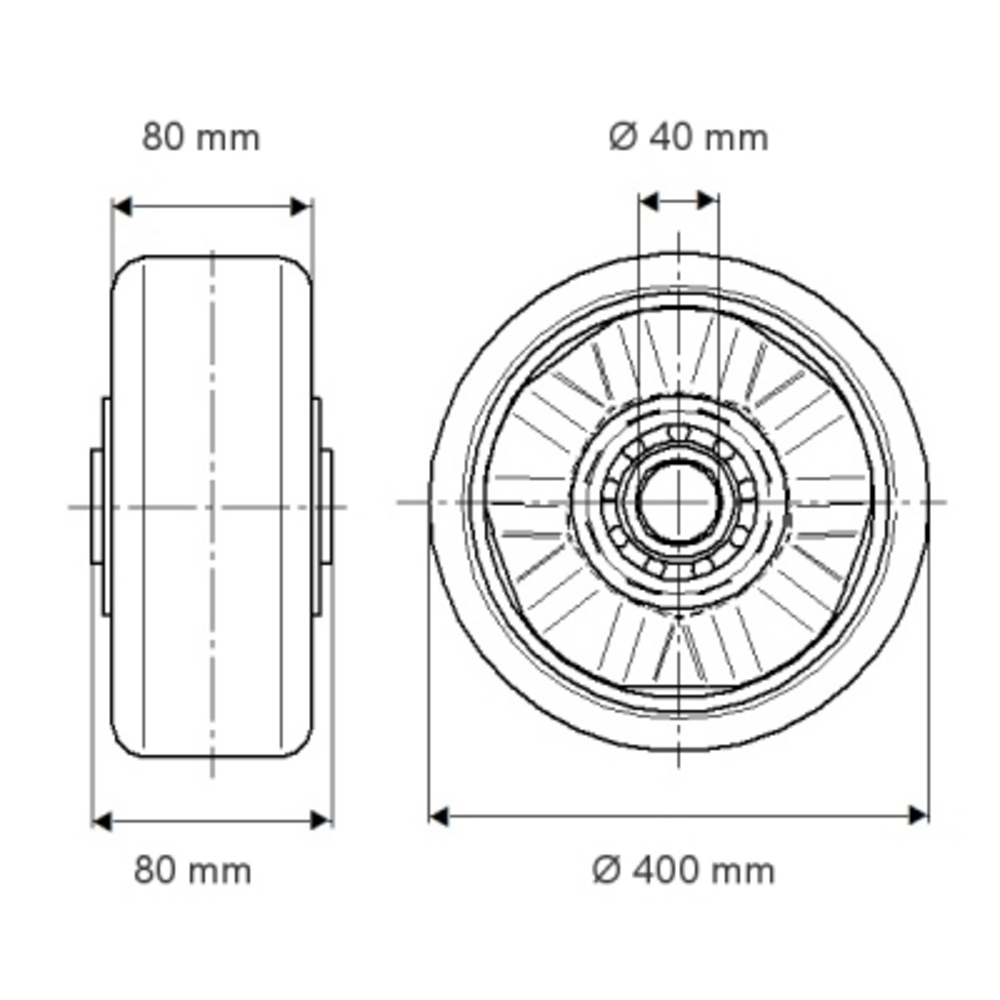

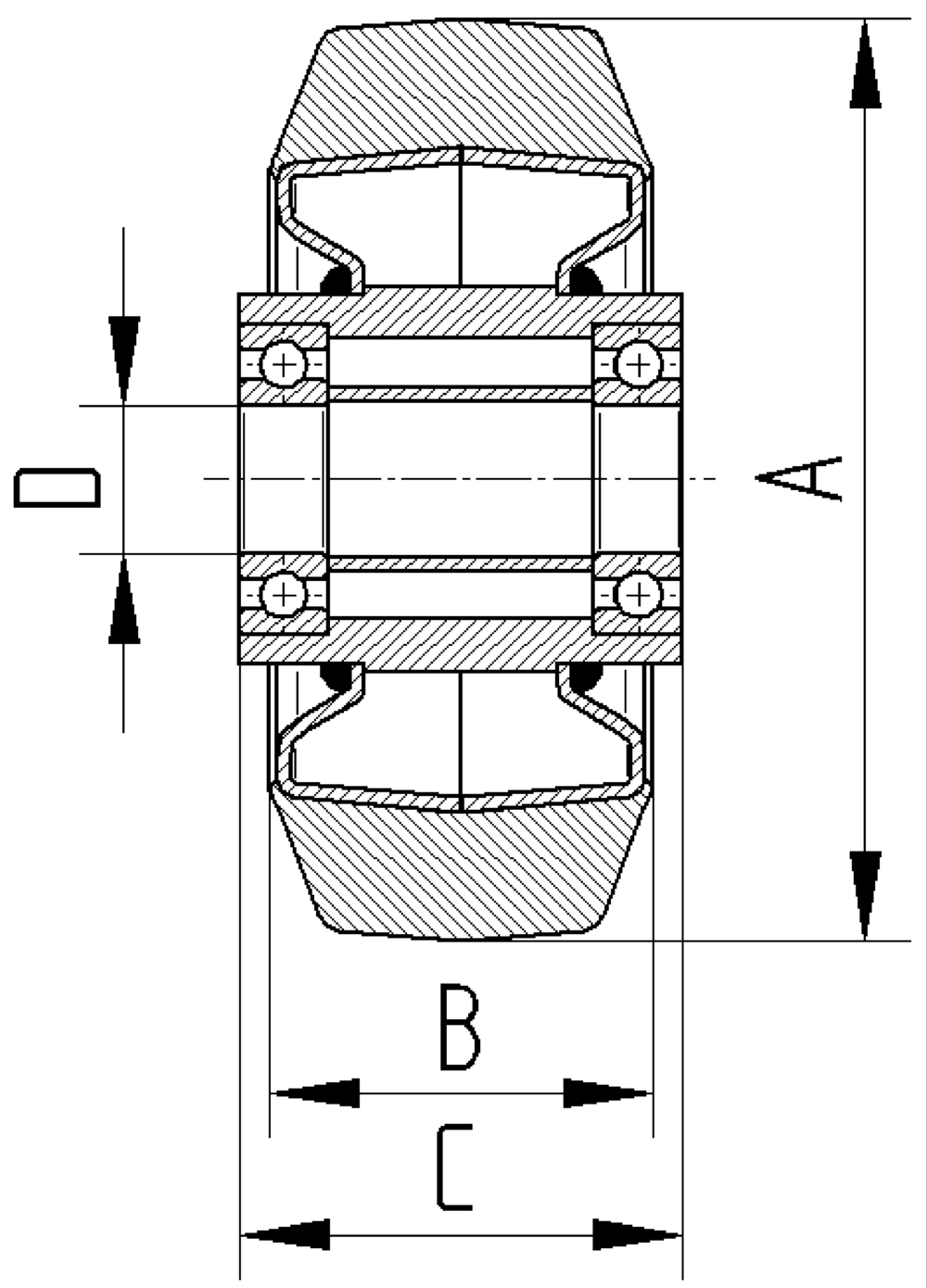

The Elastech wheel is a precision caster wheel engineered for demanding industrial applications including AMR systems, automated shuttle systems, automotive OEM, catering carts and meal delivery systems, container construction, fire fighting technology, machine construction, post logistic systems, production and platform trolleys, professional cleaning carts, roll cages, scaffolding, tool cabinets, transport equipment, and work benches. This wheel features a 15.75 inch diameter with a 3.15 inch wide elastic tire in black vulcanized material mounted on a sheet steel heavy body hub measuring 3.15 inches in length. The wheel is equipped with a precision ball bearing and accommodates an axle hole diameter of 1.57 inches. The static load capacity reaches 6349.31 pounds, while dynamic load capacity is rated at 2645.54 pounds at 3.73 miles per hour or 3174.65 pounds at 2.49 miles per hour, making it suitable for both high-speed and heavy-load applications in professional industrial environments.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic hydrocarbons or chromium (VI)
Tested quality
Tested in our own laboratory for compliance with European standards
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort
Quiet rolling
Soft wheel versions for a quiet working environment
Low-vibration transport
Extra soft wheels with good shock-absorbing properties
