Wheel 15.75 in
Puretech air
detail.eanLabel
4031582410877
Product number:
PPO400x100-Ø25 HL74 4PR
- Non-hazardous materials
- Tested quality
The Puretech air is a wheel designed for use in caster applications, featuring a 15.75 inch diameter with a tread width of 3.94 ...
Details
Custom or high volume? Request a quote now.
Data sheets

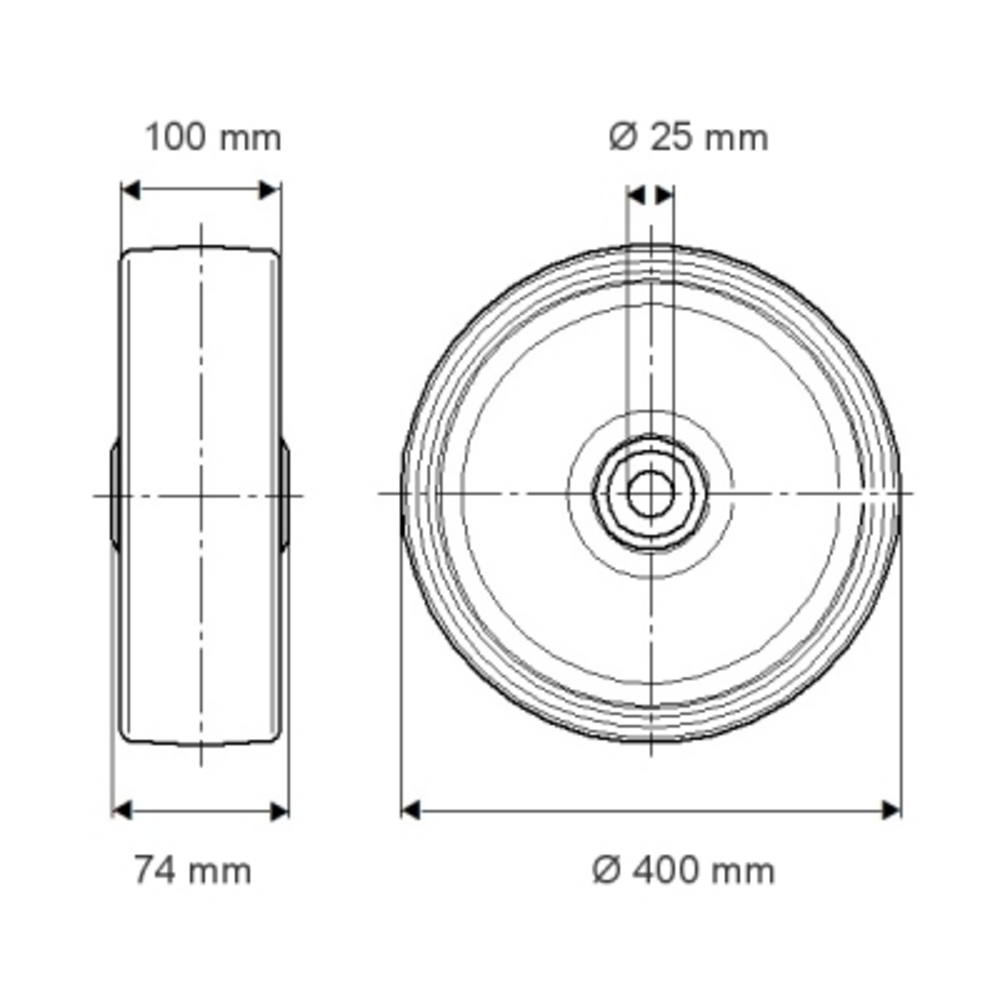

The Puretech air is a wheel designed for use in caster applications, featuring a 15.75 inch diameter with a tread width of 3.94 inches and a hub length of 2.91 inches. The wheel is constructed from polypropylene and is equipped with a plain bearing, utilizing a 0.98 inch axle hole diameter for secure mounting. The tread features a pneumatic tire with a line profile that provides reliable performance across various surfaces. This wheel is rated for a static load capacity of 617.29 pounds and a dynamic load capacity of 308.65 pounds at speeds up to 1.86 miles per hour, making it suitable for moderate-duty material handling and transport applications where pneumatic suspension and shock absorption are beneficial.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic hydrocarbons or chromium (VI)
Tested quality
Tested in our own laboratory for compliance with European standards
