Wheel 15.75 in
Puretech air
detail.eanLabel
4031582410860
Product number:
PPO400x100-Ø20 HL74 4PR
- Non-hazardous materials
- Tested quality
The Puretech air wheel is a pneumatic tire caster wheel designed for versatile material handling applications. This wheel featur...
Details
Custom or high volume? Request a quote now.
Data sheets

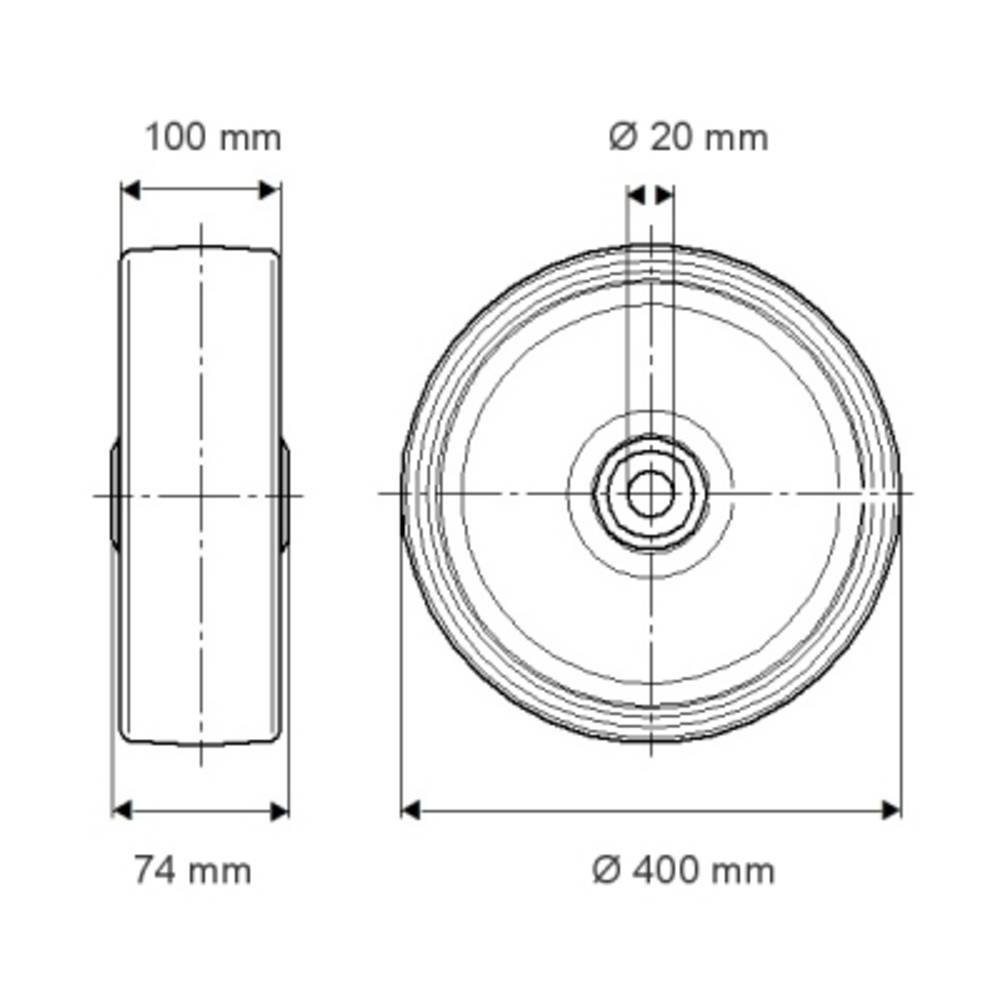

The Puretech air wheel is a pneumatic tire caster wheel designed for versatile material handling applications. This wheel features a 15.75 inch diameter with a tread width of 3.94 inches and incorporates a pneumatic tire with line profile for optimal traction and shock absorption. The hub length measures 2.91 inches, while the axle hole diameter is 0.79 inches, accommodating standard caster mounting hardware. The wheel body is constructed from polypropylene, providing durability and corrosion resistance, and is equipped with a plain bearing for smooth rotation. The static load capacity reaches 617.29 pounds, while the dynamic load capacity is rated at 308.65 pounds at a speed of approximately 1.86 miles per hour, making this wheel suitable for both stationary and mobile caster applications requiring reliable performance and substantial weight support.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic hydrocarbons or chromium (VI)
Tested quality
Tested in our own laboratory for compliance with European standards
