Wheel 11.81 in
Novatech
Order number:
199801175
detail.eanLabel
4031582319439
Product number:
FTP 300x100-Ø40 HL120
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Novatech wheel is a precision caster wheel engineered for demanding industrial applications, featuring a casting body constr...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.
Data sheets

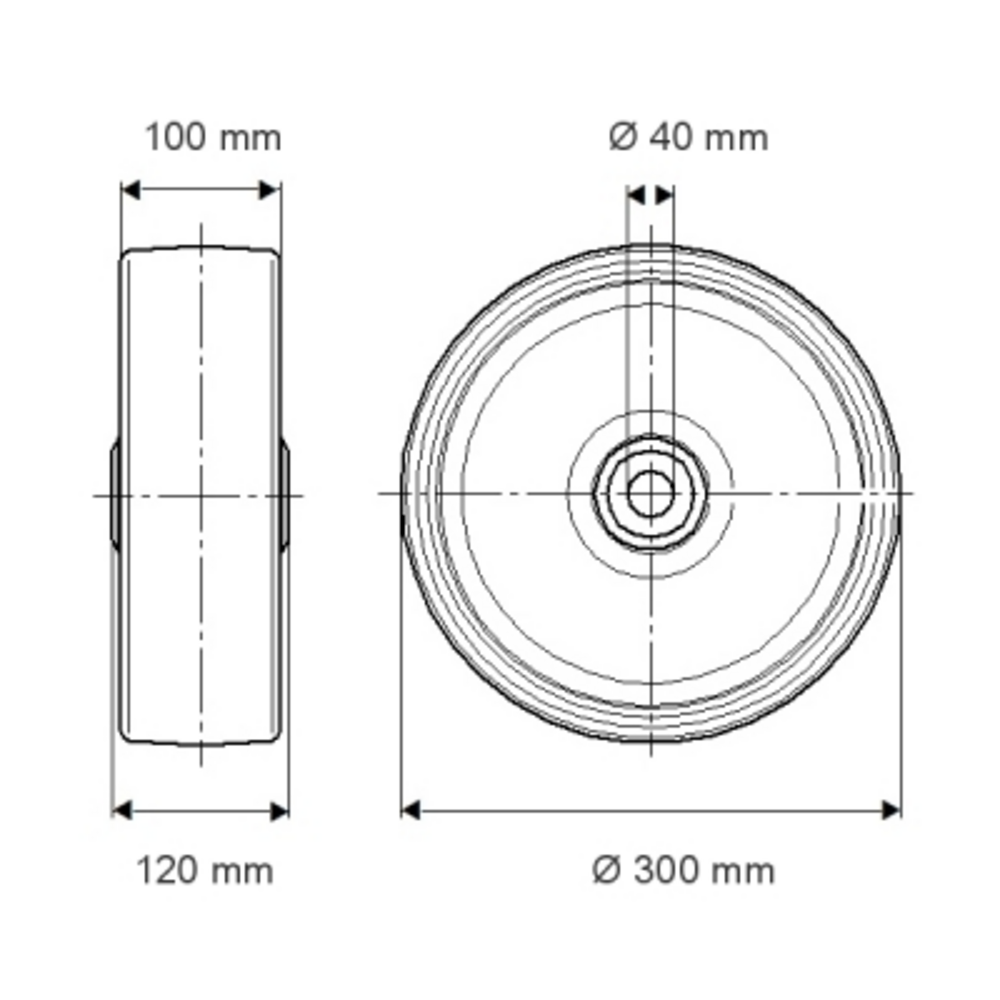

The Novatech wheel is a precision caster wheel engineered for demanding industrial applications, featuring a casting body construction with a polyurethane, casted tread measuring 3.94 inches in width. The wheel has an overall diameter of 11.81 inches with a hub length of 4.72 inches and an axle hole diameter of 1.57 inches, accommodating standard caster mounting configurations. Equipped with a precision ball bearing for smooth rotation and reliable performance, this wheel delivers exceptional load-carrying capabilities with a static load capacity of 11,464.02 pounds. The dynamic load capacity reaches 5,732.01 pounds at speeds up to 3.73 miles per hour and 6,878.41 pounds at speeds up to 2.49 miles per hour, making it suitable for both high-speed and heavy-load caster applications across various industrial environments.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic hydrocarbons or chromium (VI)
Tested quality
Tested in our own laboratory for compliance with European standards
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort
Non-marking movement
Wheels with reduced abrasion and minimal cleaning requirements
Ergonomically friendly use
Wheels with optimised rolling resistance to reduce user effort
