The new benchmark in workplace safety
Greater safety through flexible foot protection – with no compromises
Why flexible foot protection?
With TENTE's foot protection system, you can prevent workplace accidents and ensure maximum occupational safety. The special feature: The flexible rubber guards can be used even on uneven floors and ramps, allowing for smooth transportation without interruptions.
Safety meets flexibility
- Prevents contusions: The flexible rubber guards compress inwards toward the wheel when they come into contact with a foot, providing reliable protection against injury.
- Overcomes uneven surfaces: Perfect for industrial environments – no snagging or blocking on grooves, ramps, or edges. Even raised manhole covers or tripping hazards at freight elevators are no longer a problem. Suitable for crossing ramps and barriers with an incline of up to 15°.
- All-round protection: The foot guard provides not only frontal but also lateral protection, also around the wheel axle. A side-mounted, rigid steel guide rail ensures the foot is safely guided past the wheel. Even the wheel axles no longer pose an injury risk.
- Reduced downtime and resulting costs: Foot injuries caused by wheels are among the most common workplace accidents. Our flexible foot guards significantly reduce this risk – and thus your downtime and associated costs.
Tailored to your application
Benefit from a pre-assembled foot guard on your new heavy-duty casters, or retrofit your existing TENTE casters on-site – without complex modifications.
- For our heavy-duty series: Delta, Zeta & Kappa
- Quick and easy retrofitting: A customized fork allows for easy installation by the customer – no realignment or new holes on the caster required.
- Also available pre-assembled: No additional assembly or adjustment needed.
- For wheels up to ⌀ 250 mm – larger sizes available on request.
Technical Data
Width: 151 mm
Ground clearance: 19 mm – maintains a safe distance from the floor
Material: Flexible rubber, Shore A 75
Temperature resistance: −4 °F to +140 °F

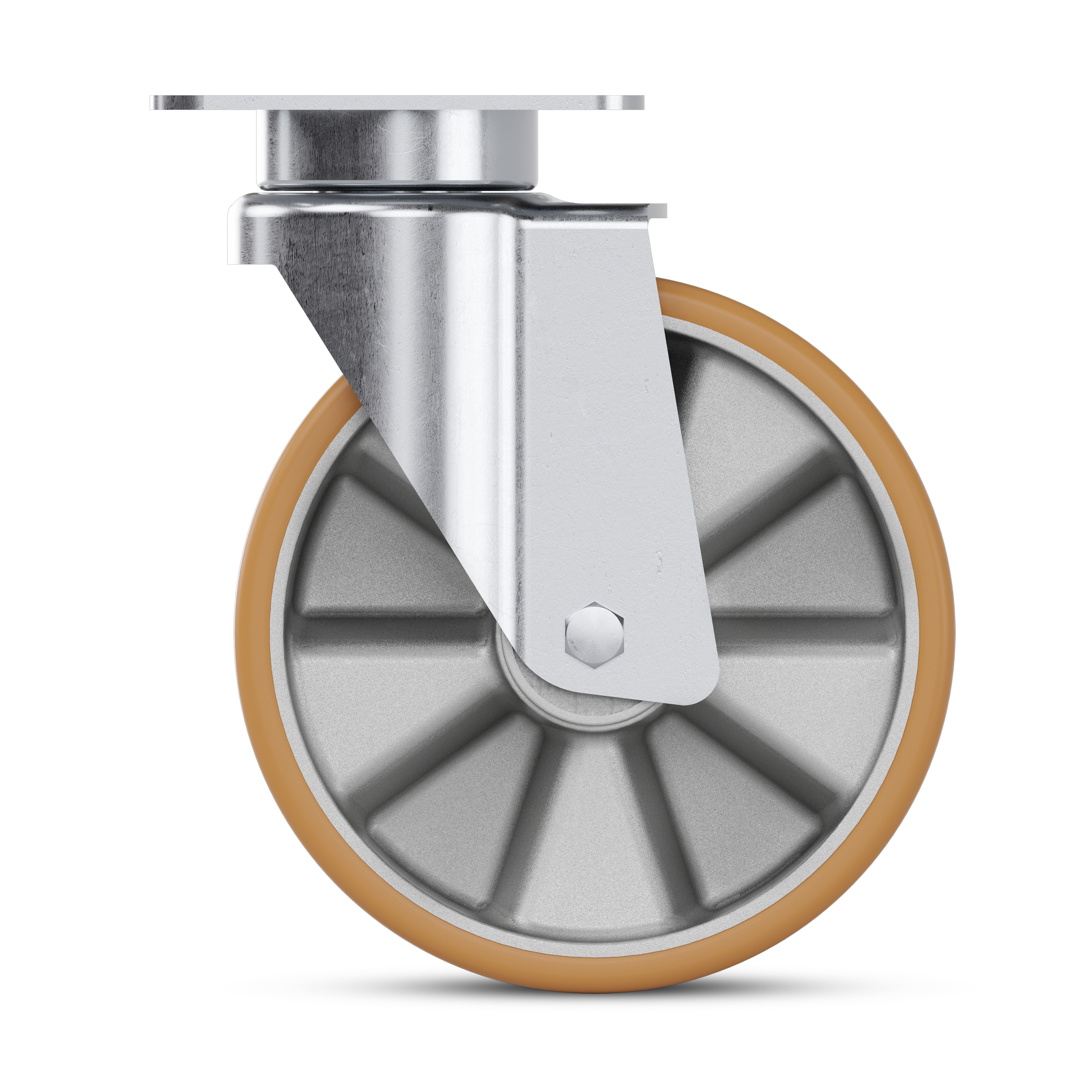

Delta
Delta is one of our most popular heavy duty casters predominantly used to ensure easy maneuverability in industrial settings. Our Delta product family offers load capacities of up to 750 kg per caster, featuring wheel diameters from 125 mm to 200 mm.
The housing of our Delta heavy duty casters is made of heavy duty pressed steel, bright zinc plated and blue passivated. This product family is offered with two types of housings, as single wheel and twin wheel casters. Delta swivel casters are maintenance-free, featuring a sealed precision ball bearing.
Delta features durable wheels with extremely low wear and tear properties. Soft wheel versions are available, helping to create a quiet working environment. Only non-hazardous materials are used to comply with RoHS and REACH regulations.
Get more information about Delta in our product brochure.

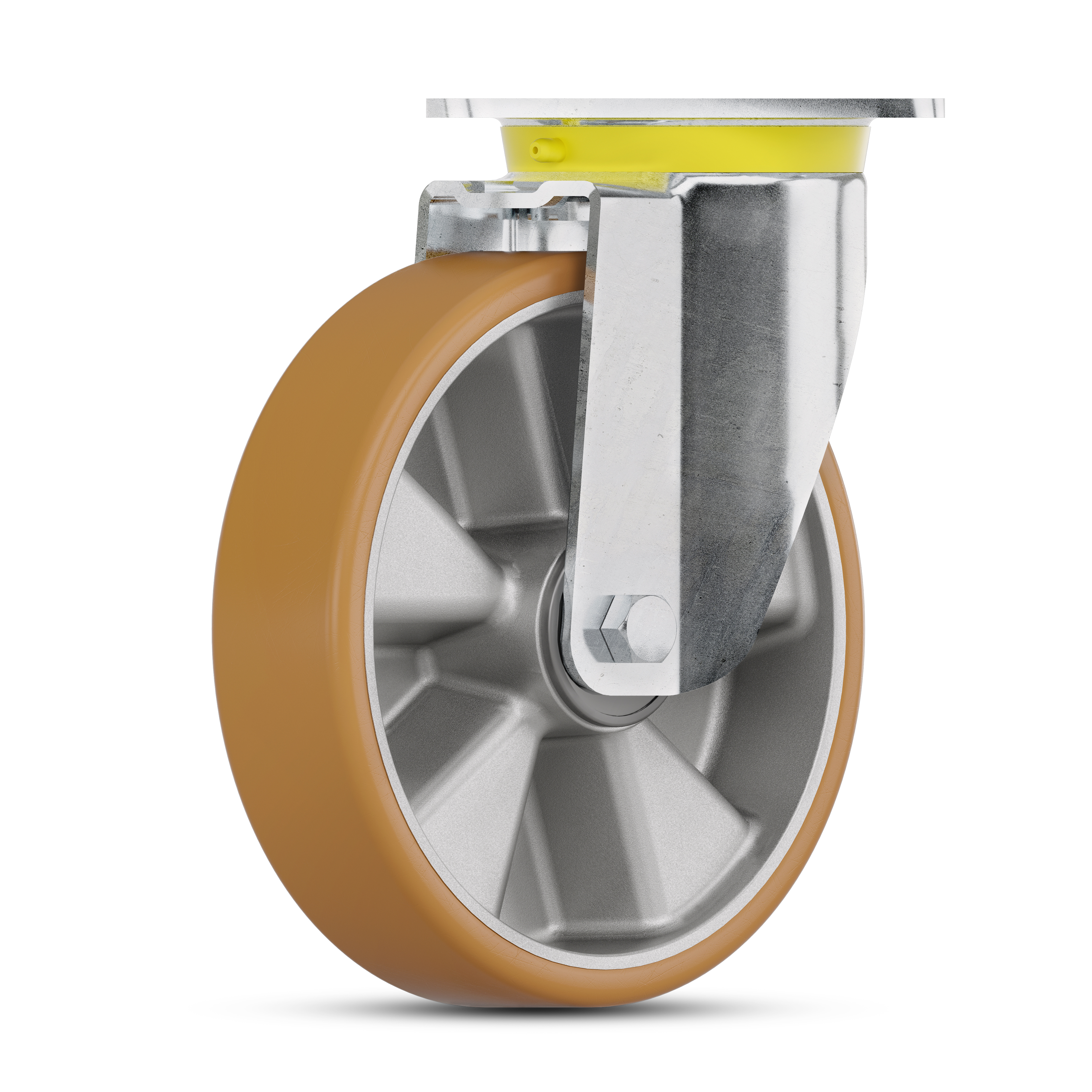

Zeta
Our heavy duty caster Zeta offers load capacities of up to 800 kg per caster, featuring wheel diameters from 125 mm to 250 mm.
The housing of Zeta is made of reinforced extra heavy pressed steel, available as fixed casters, swivel casters with total lock, and self-aligning casters. Our Zeta product family is also available as Zeta stainless, featuring a stainless steel housing, this way ensuring permanent washability and corrosion resistance.
Zeta guarantees easy steering by two hardened ball races in the swivel head which are lubricated with long-life grease and fitted with a grease dispenser for easy maintenance. The swivel bearing features a dust ring for continuous, uninterrupted movement. Our heavy duty caster Zeta can be equipped with different types of wheels: extra soft wheels with good shock-absorbing and noise-reducing properties, wheels with optimized roll resistance to lighten the load for the user, as well as wheels with reduced abrasion for minimized cleaning efforts.
You can read more about our Zeta in the dedicated product brochure.
Kappa
Our heavy-duty caster Kappa is designed for maximum durability and tough conditions. It offers load capacities of up to 1,200 kg per caster in the standard version and up to 3,000 kg in the Kappa load version. The product family covers wheel diameters from 80 mm to 300 mm.
The housing of Kappa casters is made of a solid steel welded construction with electroplated surfaces for highest load capacity and maximum rust protection. It is available in different versions: as a fixed caster, swivel caster, swivel caster with total lock, or with directional lock. For particularly high demands, the Kappa load version with reinforced housing and zinc-iron coating is available.
The swivel bearings are equipped with deep groove ball thrust bearings and tapered roller bearings, lubricated with long-life grease and equipped with grease nipples for easy maintenance. A dust ring ensures trouble-free operation.
You can read more about our Kappa in the dedicated product brochure.
