Swivel castor 3.94 in

ICS
detail.eanLabel 4031582404159
Product number: 5320PJP100S70-9.4x25
  • Non-hazardous materials
  • Tested quality
  • Colour matching
The ICS swivel caster features a threaded stem with hexagon neck, top fitting for secure mounting applications. The housing is c... Details
Features
  • 3.94 mm
  • 5.39 mm
  • 220.4600 kg
Custom or high volume? Request a quote now.
You have saved products in your offer list Request now

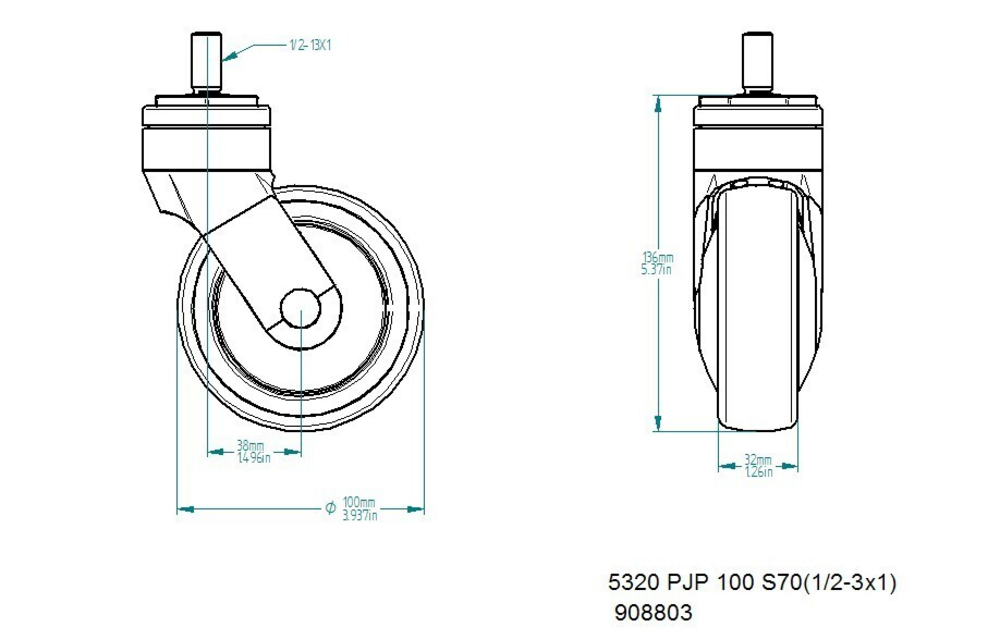

The ICS swivel caster features a threaded stem with hexagon neck, top fitting for secure mounting applications. The housing is constructed from durable polyamide material and incorporates a stem, swiveling bearing system that enables smooth directional changes under load. The wheel assembly consists of a polypropylene body with thermoplastic rubber tread material, providing excellent floor protection and quiet operation, while precision ball bearing ensures reliable performance and extended service life. The wheel measures 3.94 inches in diameter, and the caster has an overall height of 5.39 inches. Load specifications include a dynamic capacity of 220.46 pounds at speeds up to 1.86 miles per hour and a static load capacity of 440.92 pounds. This caster is specifically designed for care beds applications where mobility and reliability are essential requirements.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Article Number
5320PJP100S70-9.4x25
EAN
4031582404159
Core attributes
Type
Swivel castor
Load capacity at 3 km/h
220.46 lb
Load capacity Static
440.92 lb
Overall height
5.39 in
Temperature range (Maximum)
104 °F
Temperature range (Minimum)
14 °F
Product name
ICS
Standard
EN12530 - Devices Castors
Electric conductive
Stainless
Fitting
Fitting type
Threaded stem with hexagon neck, top
Stem diameter
0.37 in
Stem length
0.98 in
Housing
Fork shape
Slim
Material
Polyamide
Swivel bearing
Stem, swiveling
Swivel interference
6.85 in
Offset
1.46 in
Swivel radius
3.43 in
Thread diameter
0.37 in
Wheel
Hardness of tread (A)
87 Shore A
Body material
Polypropylene
Tread material
Thermoplastic rubber
Tread width
1.26 in
Diameter
3.94 in
Threadguards
Integrated threadguard
Bearing
Precision ball bearing

IF Design Award

IF Design Award

special-features-image
Special Features
detail.specialFeatures.subtitle
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic hydrocarbons or chromium (VI)
Tested quality
Tested in our own laboratory for compliance with European standards
Colour matching
Colors can be adapted to match the product design
Award-winning design
Awarded with prestigious prizes by international juries
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort
Non-marking movement
Wheels with reduced abrasion and minimal cleaning requirements
Skip product gallery

Crossselling

Variants

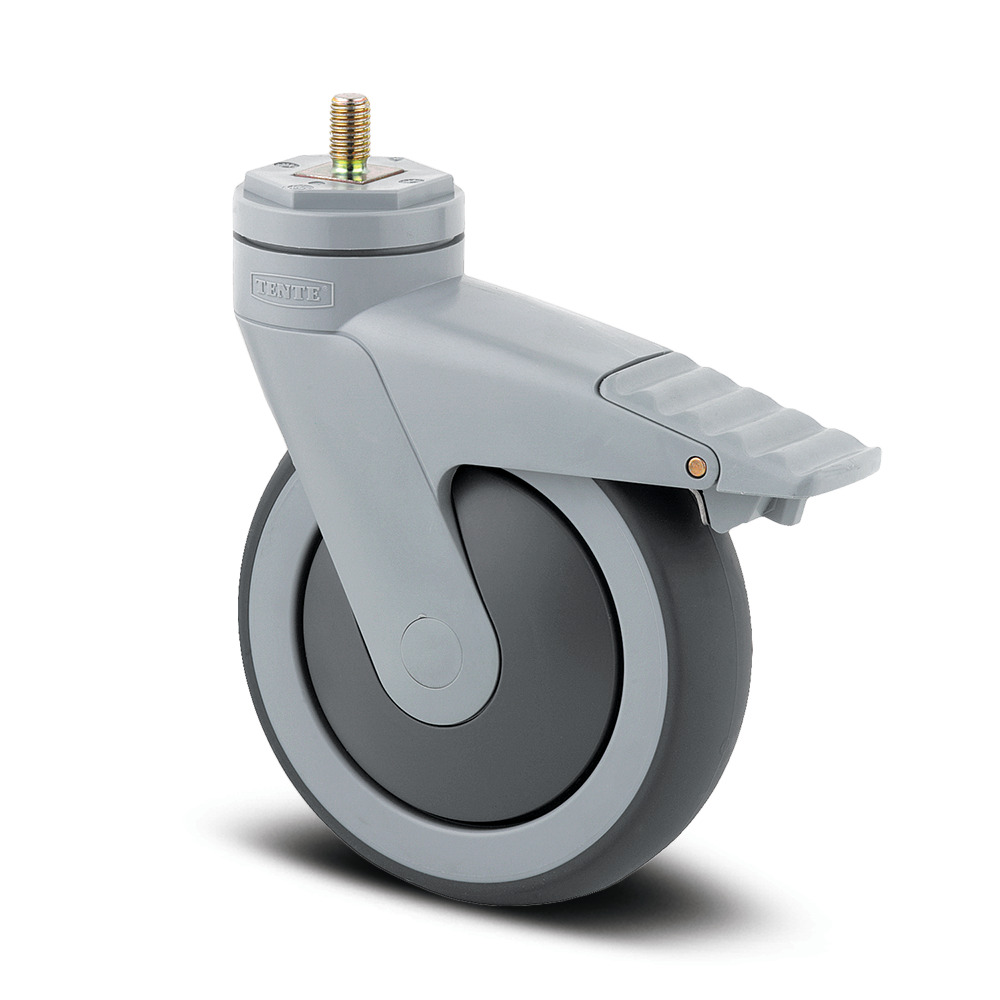

Swivel castor with total lock 3.94 in
