Swivel castor with total lock 3.94 in

ICS
detail.eanLabel 4031582384864
Product number: 5327PJP100S70-1/2-13X1
  • Non-hazardous materials
  • Tested quality
  • Colour matching
The ICS is a swivel caster with total lock functionality, designed for industrial applications requiring secure positioning and ... Details
Features
  • 3.94 mm
  • 5.39 mm
  • 220.4600 kg
Custom or high volume? Request a quote now.
You have saved products in your offer list Request now

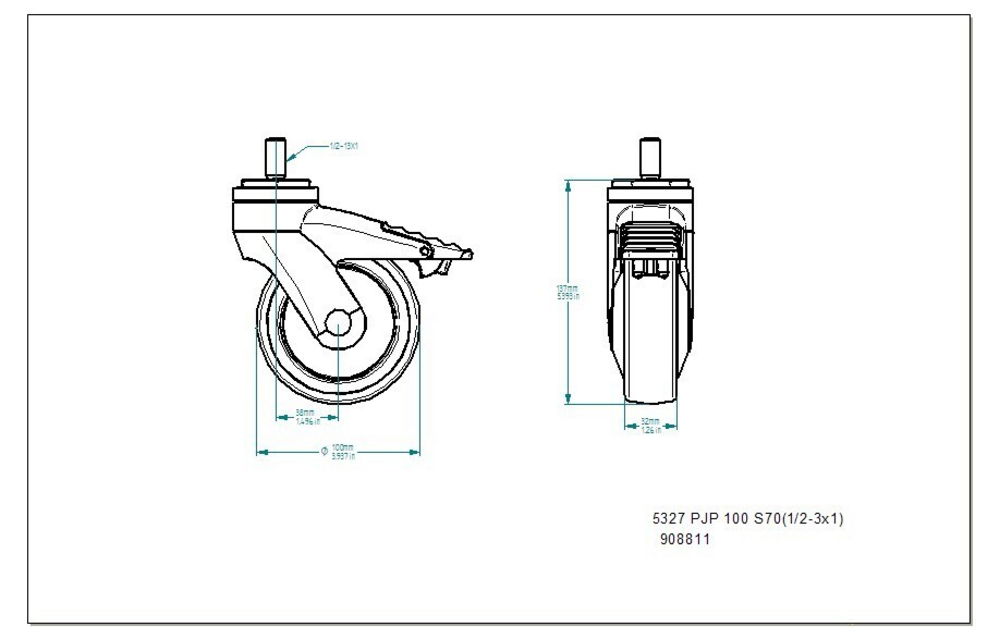

The ICS is a swivel caster with total lock functionality, designed for industrial applications requiring secure positioning and mobility. The unit features a threaded stem with hexagon neck fitting positioned at the top for straightforward installation and enhanced grip during mounting. The housing is constructed from durable polyamide material and incorporates a stem-based swiveling bearing system that enables smooth directional changes while maintaining structural integrity. The wheel assembly consists of a polypropylene body with thermoplastic rubber tread material, providing excellent floor protection and quiet operation, while precision ball bearings ensure smooth rolling performance and extended service life. The wheel measures 3.94 inches in diameter, and the caster has an overall height of 5.39 inches. Load specifications include a dynamic capacity of 220.46 pounds at speeds up to 1.86 miles per hour and a static load capacity of 440.92 pounds, making it suitable for medium-duty applications.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Article Number
5327PJP100S70-1/2-13X1
EAN
4031582384864
Core attributes
Type
Swivel castor with total lock
Load capacity at 3 km/h
220.46 lb
Load capacity Static
440.92 lb
Overall height
5.39 in
Temperature range (Maximum)
104 °F
Temperature range (Minimum)
14 °F
Product name
ICS
Standard
EN12530 - Devices Castors
Electric conductive
Stainless
Fitting
Fitting type
Threaded stem with hexagon neck, top
Stem length
0.98 in
Housing
Fork shape
Slim
Material
Polyamide
Swivel bearing
Stem, swiveling
Swivel interference
7.83 in
Offset
1.46 in
Thread diameter
0.49 in
Wheel
Hardness of tread (A)
87 Shore A
Body material
Polypropylene
Tread material
Thermoplastic rubber
Tread width
1.26 in
Diameter
3.94 in
Threadguards
Integrated threadguard
Bearing
Precision ball bearing

IF Design Award

IF Design Award

special-features-image
Special Features
detail.specialFeatures.subtitle
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic hydrocarbons or chromium (VI)
Tested quality
Tested in our own laboratory for compliance with European standards
Prevents unintended movement
Wheel lock for manual operation
Secured stand
Total lock for simultaneously locking the wheel and swivel housing
Colour matching
Colors can be adapted to match the product design
Award-winning design
Awarded with prestigious prizes by international juries
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort
Non-marking movement
Wheels with reduced abrasion and minimal cleaning requirements
