Wheel 5 in
Supratech
detail.eanLabel
4031582436150
Product number:
PJP5x1.25-Ø9.8 HL41
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Supratech wheel is a precision caster component engineered for demanding industrial and commercial applications including ro...
Details
Custom or high volume? Request a quote now.
Data sheets

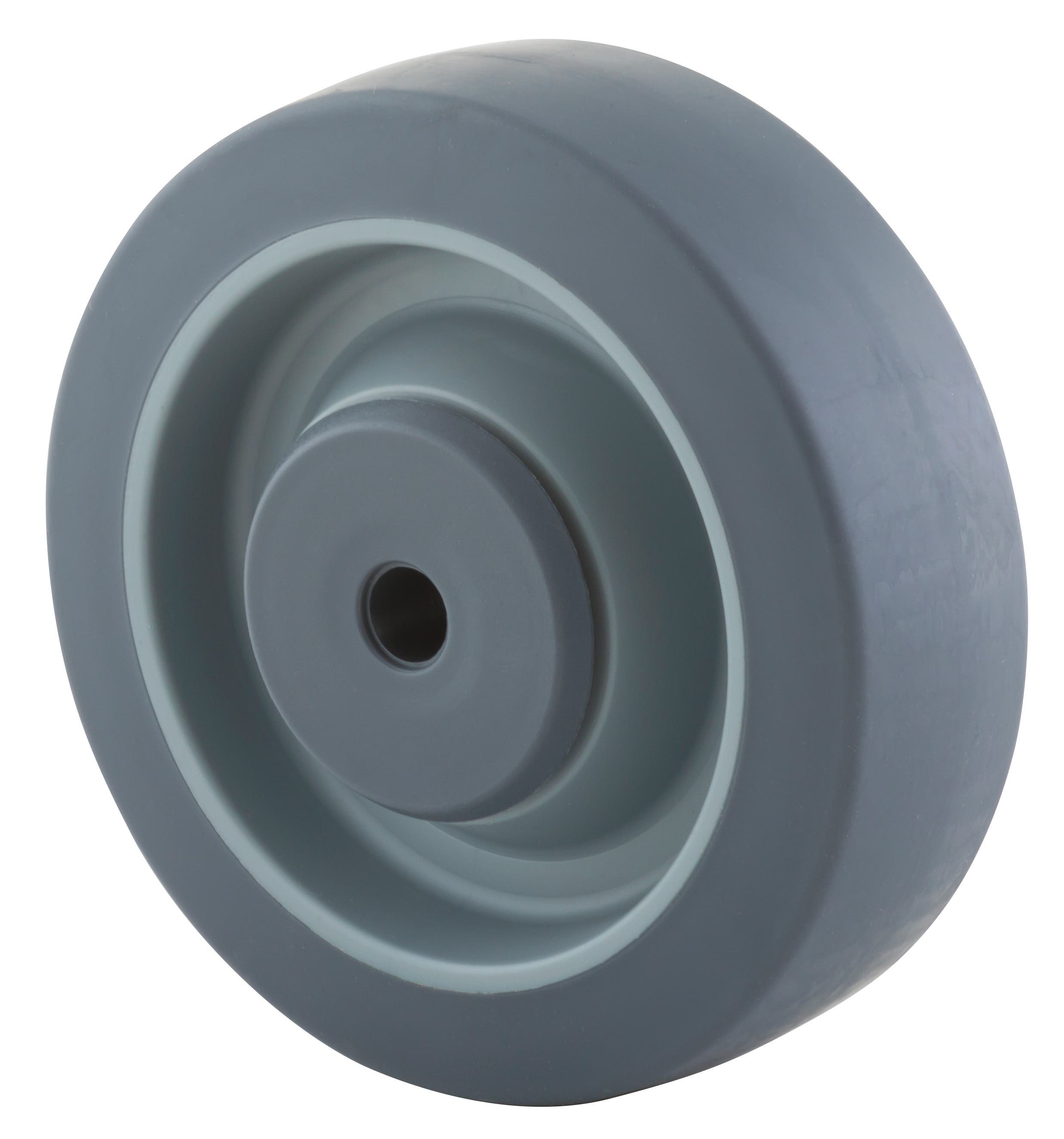

The Supratech wheel is a precision caster component engineered for demanding industrial and commercial applications including roll cages, shopping trolleys, store fixtures and displays, tool cabinets, work benches, and transport equipment. This wheel features a 5-inch diameter with a 1.25-inch wide tread constructed from thermoplastic rubber, providing excellent durability and traction across various surfaces. The hub measures 1.61 inches in length, while the axle accommodates a 0.39-inch hole diameter for secure mounting. The wheel body is manufactured from polypropylene and incorporates a precision ball bearing for smooth, reliable rotation. The load capacity specifications are rated at 551.16 pounds static load and 275.58 pounds dynamic load at 1.86 miles per hour, making this wheel suitable for applications requiring robust performance and consistent reliability in demanding environments.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic hydrocarbons or chromium (VI)
Tested quality
Tested in our own laboratory for compliance with European standards
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort
Non-marking movement
Wheels with reduced abrasion and minimal cleaning requirements
