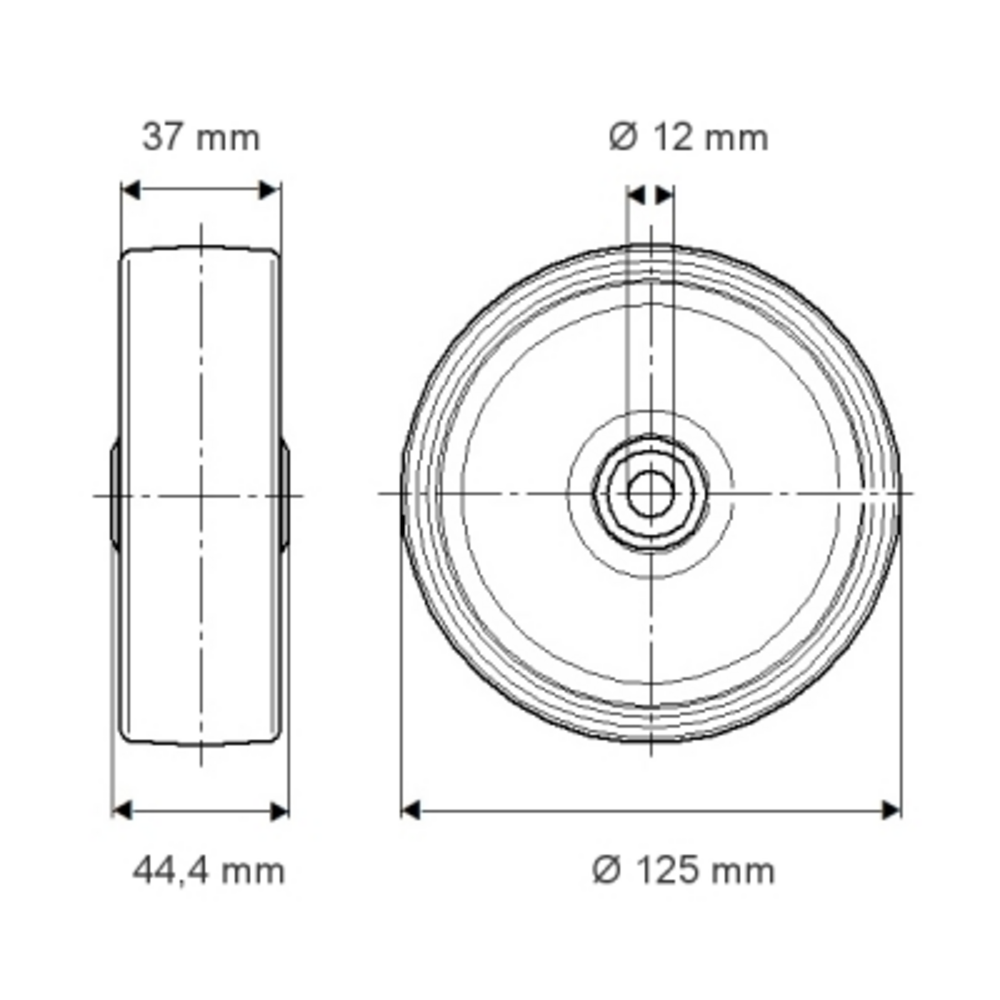

The Puretech Wheel is a precision caster wheel engineered for demanding industrial applications, featuring a 4.92 inch diameter with a 1.46 inch tread width and a 1.75 inch hub length designed to accommodate a 0.47 inch axle hole diameter. The wheel construction utilizes a sheet steel body combined with a wound tread made of canvas and phenolic resin, ensuring durability and reliable performance in high-traffic environments. Equipped with a roller bearing for smooth rotation, this wheel delivers a static load capacity of 440.92 pounds and a dynamic load capacity of 220.46 pounds at speeds up to 2.49 miles per hour, making it suitable for heavy-duty caster applications requiring robust load-bearing capabilities and consistent operational reliability.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Artikelnummer
DRR125x37-Ø12
EAN
4031582410822
Core attributes
Gehäusetyp
Wheel
Tragfähigkeit bei 4 km/h
220.46 lb
Statische Tragfähigkeit
440.92 lb
Temperaturbereich (Maximum)
140 °F
Temperaturbereich (Minimum)
-4 °F
Gesamtgewicht
1.27 lb
Produktname
Puretech
Norm
EN12532 - Transport Equipment
Elektrisch-leitfähig
Rostfrei
Wheel
Härte der Lauffläche (A)
85 Shore A
Material des Radkörpers
Sheet Steel
Material der Lauffläche
Wound tread made of canvas and phenolic resin
Achsloch Durchmesser
0.47 in
Nabenlänge
1.75 in
Breite der Lauffläche
1.46 in
Durchmesser
4.92 in
Fadenschutz
Without threadguard
Lager
Roller bearing
special-features-image
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic hydrocarbons or chromium (VI)
Tested quality
Tested in our own laboratory for compliance with European standards
