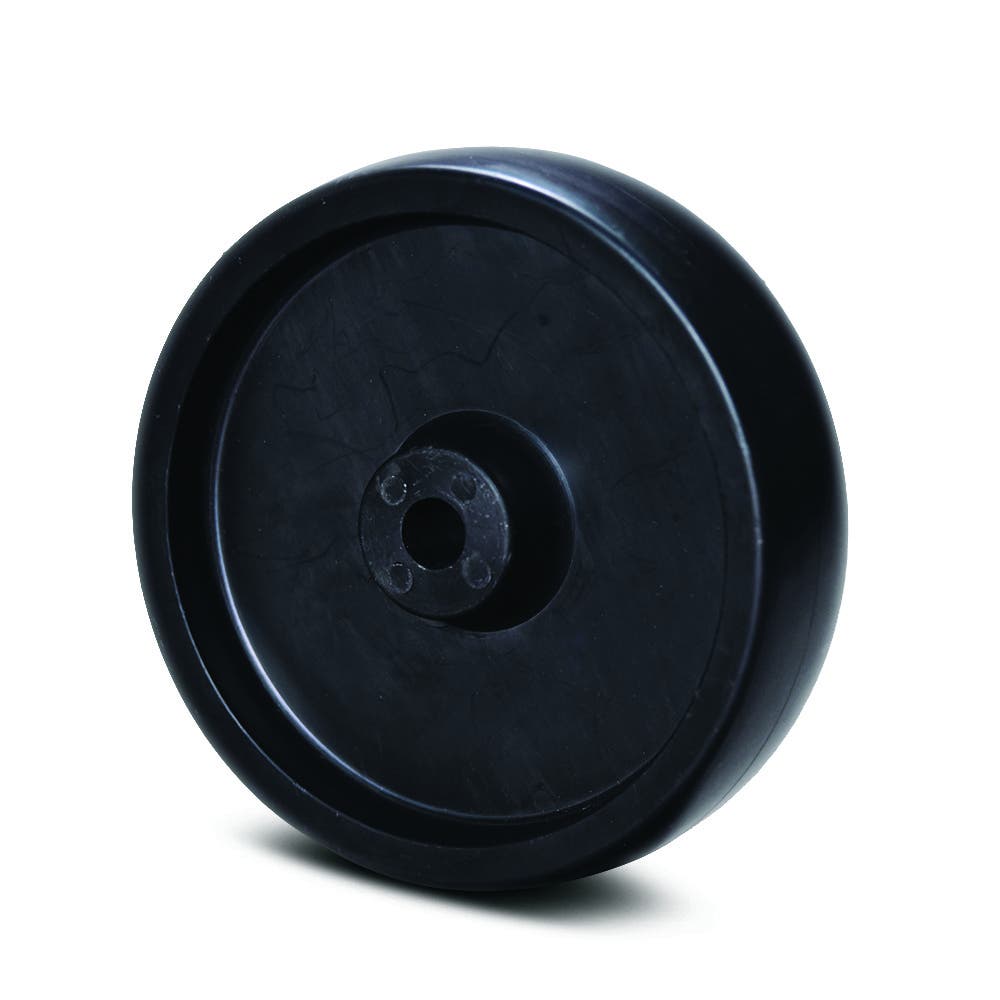

The Basetech Wheel is a 4-inch diameter caster wheel engineered for demanding industrial applications including roll cages and store fixtures and display systems. The wheel features a tread width of 1.25 inches composed of material identical with the wheel body, constructed from polypropylene for durability and reliability. The hub length measures 1.57 inches, while the axle hole diameter is 0.48 inches, accommodating standard mounting configurations. The wheel is equipped with a plain bearing for smooth rotation and consistent performance. Load capacity specifications indicate a static load rating of 661.39 pounds and a dynamic load rating of 330.69 pounds at 1.86 miles per hour, making this wheel suitable for both stationary and mobile applications requiring robust weight distribution and operational stability.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Article Number
POO4x1.25-Ø0.5 HL 40
EAN
4031582436105
Core attributes
Type
Wheel
Load capacity at 3 km/h
330.69 lb
Load capacity Static
661.39 lb
Product name
Basetech
Standard
Institute of Casters and Wheel Manufacturers
Electric conductive
Stainless
Wheel
Hardness of tread (D)
66 Shore D
Body material
Polypropylene
Tread material
Identical with wheel body
Axle hole diameter
0.48 in
Hub length
1.57 in
Tread width
1.25 in
Diameter
4 in
Threadguards
Without threadguard
Bearing
Plain bearing
special-features-image
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic hydrocarbons or chromium (VI)
Tested quality
Tested in our own laboratory for compliance with European standards
Low wear and tear wheels
Durable wheels with extremely low wear
