Wheel 3.5 in
Supratech
detail.eanLabel
4031582436136
Product number:
PJP3.5x1.25-Ø9.8 HL41
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Supratech wheel is a precision caster component engineered for demanding industrial and commercial applications including ro...
Details
Custom or high volume? Request a quote now.
Data sheets

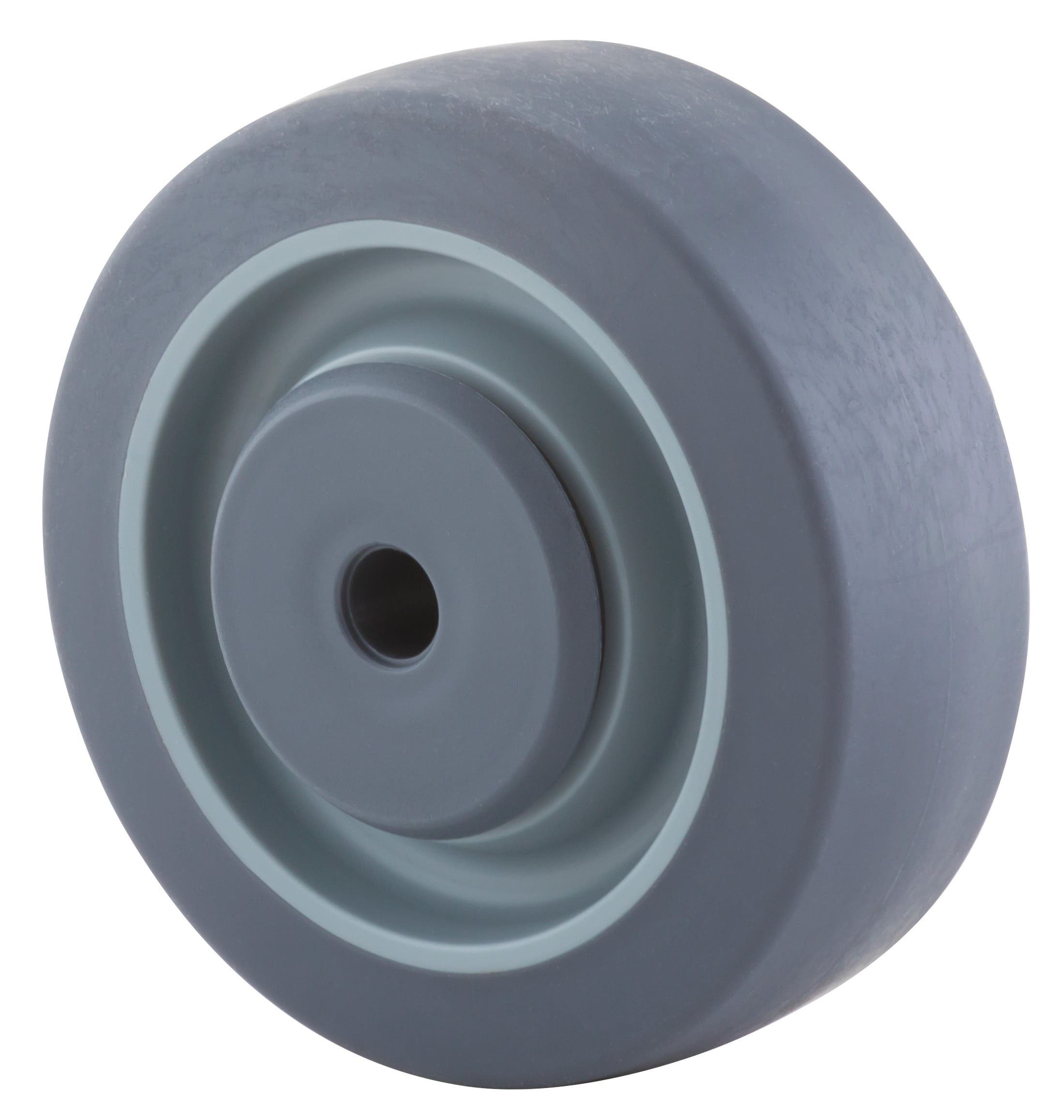

The Supratech wheel is a precision caster component engineered for demanding industrial and commercial applications including roll cages, shopping trolleys, store fixtures and displays, tool cabinets, work benches, and transport equipment. This wheel features a 3.5 inch diameter with a 1.25 inch wide tread constructed from thermoplastic rubber, providing excellent durability and traction across various surfaces. The wheel body is manufactured from polypropylene, offering lightweight performance without compromising structural integrity. The hub measures 1.61 inches in length and accommodates a 0.39 inch diameter axle hole for secure mounting. Equipped with a precision ball bearing for smooth rotation and minimal friction, this wheel delivers reliable performance in demanding environments. The static load capacity reaches 418.88 pounds, while the dynamic load capacity is rated at 209.44 pounds at speeds up to 1.86 miles per hour, making it suitable for both stationary and mobile applications requiring dependable load support and maneuverability.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic hydrocarbons or chromium (VI)
Tested quality
Tested in our own laboratory for compliance with European standards
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort
Non-marking movement
Wheels with reduced abrasion and minimal cleaning requirements
