Wheel 3.15 in
Basetech
detail.eanLabel
4031582414325
Product number:
POR080x30-Ø12 RAL9011 TFR
- Non-hazardous materials
- Tested quality
- Low wear and tear wheels
The Basetech Wheel is a polypropylene caster wheel engineered for demanding commercial applications including roll cages and sto...
Details
Custom or high volume? Request a quote now.
Data sheets

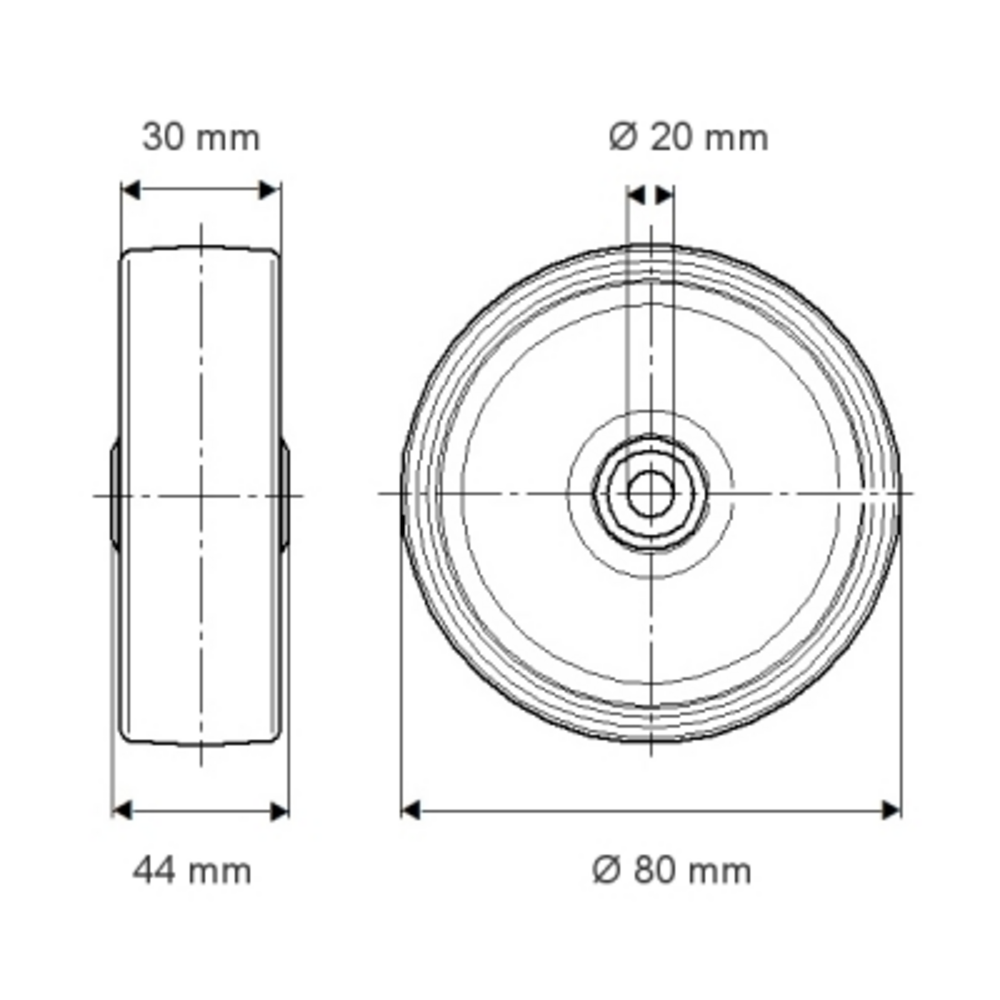

The Basetech Wheel is a polypropylene caster wheel engineered for demanding commercial applications including roll cages and store fixtures and display systems. This wheel features a diameter of 3.15 inches with a tread width of 1.18 inches, identical in material composition to the wheel body for consistent performance and durability. The hub length measures 1.73 inches, and the axle hole diameter is 0.79 inches, accommodating standard caster mounting configurations. Equipped with a roller bearing for smooth operation, this wheel delivers a static load capacity of 440.92 pounds and a dynamic load capacity of 220.46 pounds at speeds up to 2.49 miles per hour, making it suitable for both stationary and mobile applications requiring reliable load support and maneuverability in retail and industrial environments.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic hydrocarbons or chromium (VI)
Tested quality
Tested in our own laboratory for compliance with European standards
Low wear and tear wheels
Durable wheels with extremely low wear
