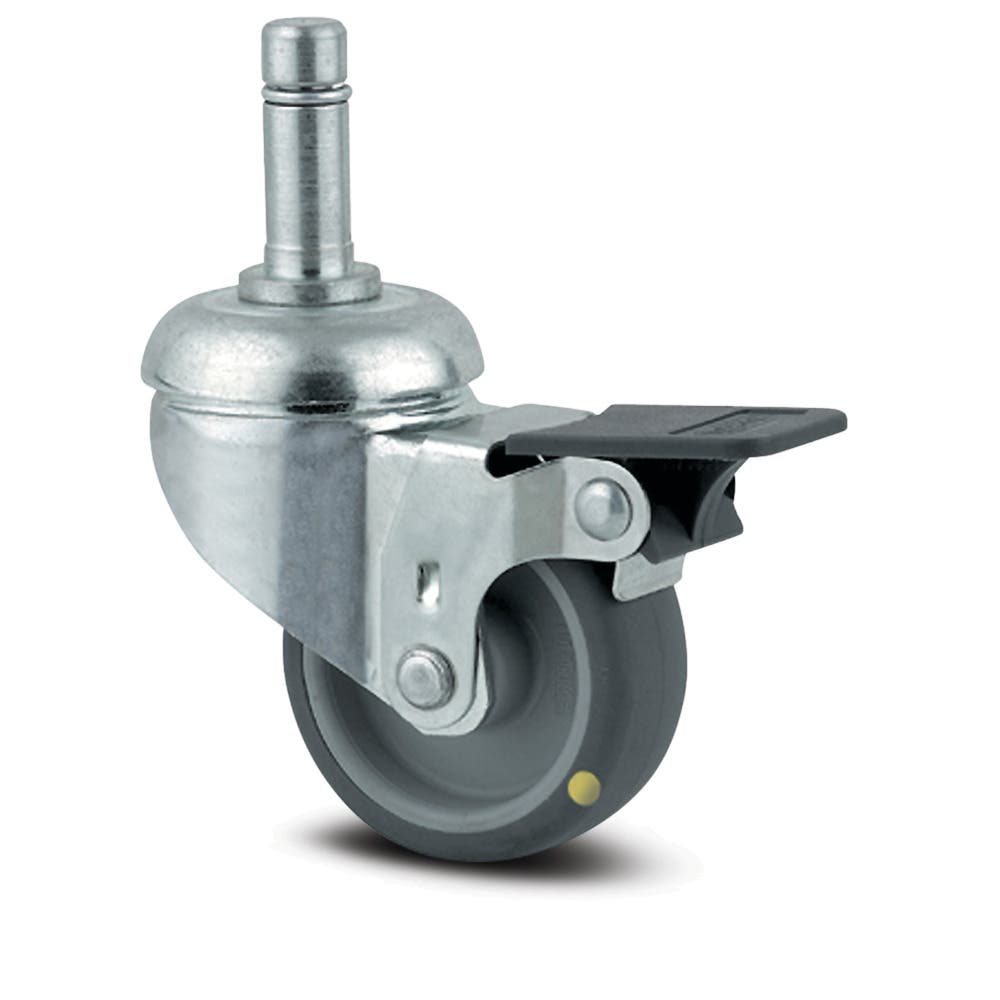

Swivel castor with wheel brake 1.97 in

Agila
detail.eanLabel 4031582356366
Product number: 2475YGO050B10-11x31
  • Non-hazardous materials
  • Tested quality
  • Variable fitting options
The Agila is a swivel caster with wheel brake designed for industrial applications. The fitting features a stem with grip ring a... Details
Features
  • 1.97 mm
  • 2.83 mm
  • 110.2300 kg
Custom or high volume? Request a quote now.
You have saved products in your offer list Request now

CAD files

Data sheets

The Agila is a swivel caster with wheel brake designed for industrial applications. The fitting features a stem with grip ring and collar configuration for secure mounting. The housing is constructed from medium-grade steel sheet and incorporates a dual ball race swivel bearing system for smooth directional movement. The wheel assembly consists of an electric-conductive polypropylene body with electric-conductive thermoplastic rubber tread, utilizing a plain bearing system. The wheel diameter measures 1.97 inches. Overall caster height is 2.83 inches. Load specifications include a dynamic capacity of 110.23 pounds at speeds up to 1.86 miles per hour, with a static load capacity of 220.46 pounds. The electric-conductive properties of both wheel body and tread material provide electrostatic discharge protection, making this caster suitable for environments requiring static control.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Article Number
2475YGO050B10-11x31
EAN
4031582356366
Core attributes
Type
Swivel castor with wheel brake
Load capacity at 3 km/h
110.23 lb
Load capacity Static
220.46 lb
Overall height
2.83 in
Temperature range (Maximum)
140 °F
Temperature range (Minimum)
-4 °F
Overall weight
0.41 lb
Product name
Agila
Standard
EN12530 - Devices Castors
Electric conductive
Stainless
Fitting
Fitting type
Stem with grip ring, with collar
Stem diameter
0.43 in
Housing
Fork shape
Broad
Material
Steel sheet, medium
Swivel bearing
Two ball races
Offset
0.94 in
Wheel
Hardness of tread (A)
87 Shore A
Body material
Polypropylene, electric conductive
Tread material
Thermoplastic rubber, electric-conductive
Tread width
0.75 in
Diameter
1.97 in
Threadguards
Without threadguard
Bearing
Plain bearing
special-features-image
Special Features
detail.specialFeatures.subtitle
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic hydrocarbons or chromium (VI)
Tested quality
Tested in our own laboratory for compliance with European standards
Solid housing
Made of pressed steel, zinc plated
Prevents unintended movement
Wheel lock for manual operation
Variable fitting options
Different fitting dimensions for a wide range of applications
Resource-conserving part replacement
Threaded axles allow effortless wheel change
Non-marking movement
Wheels with reduced abrasion and minimal cleaning requirements
Easy steering
Swivel head with double ball bearings
Fast assembly
Faster assembly process with plug-in fittings
Certified conductivity
Conductive version to protect users and electrical devices from electrostatic discharge
Skip product gallery

Crossselling

Variants

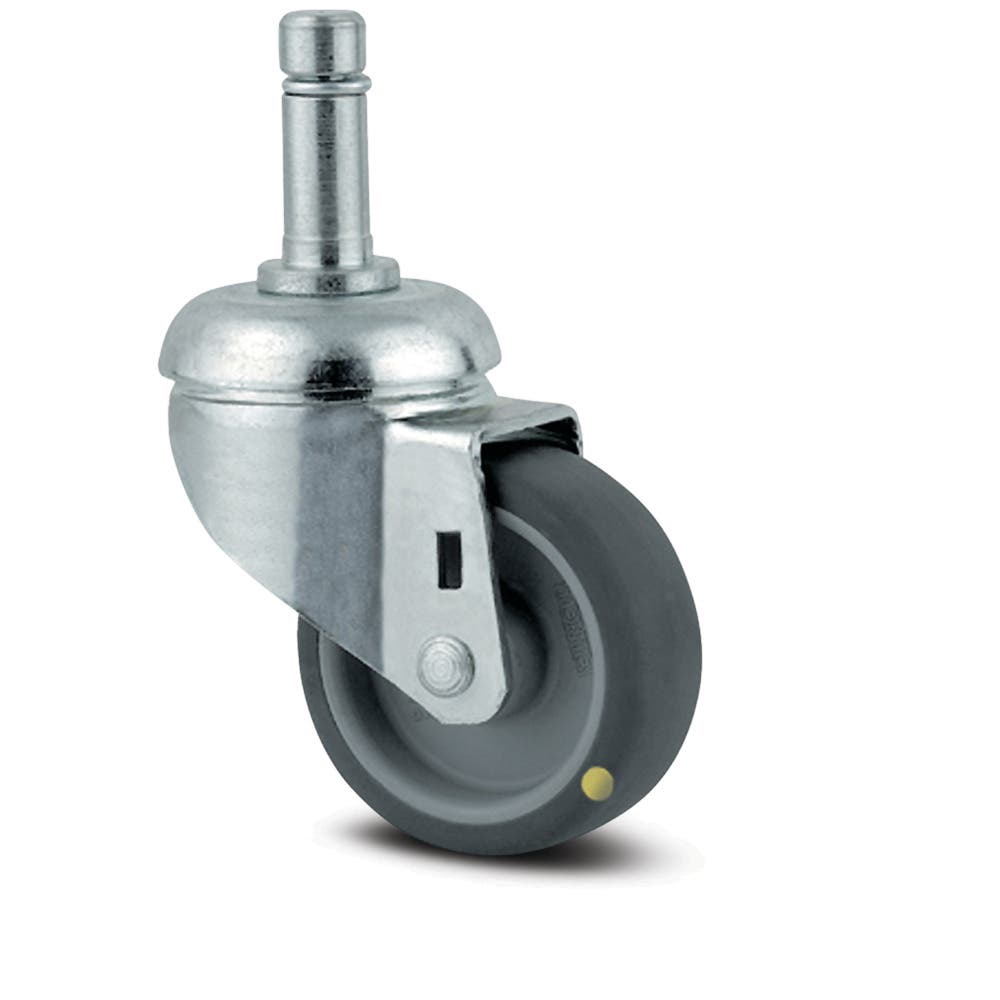

Swivel castor 1.97 in
