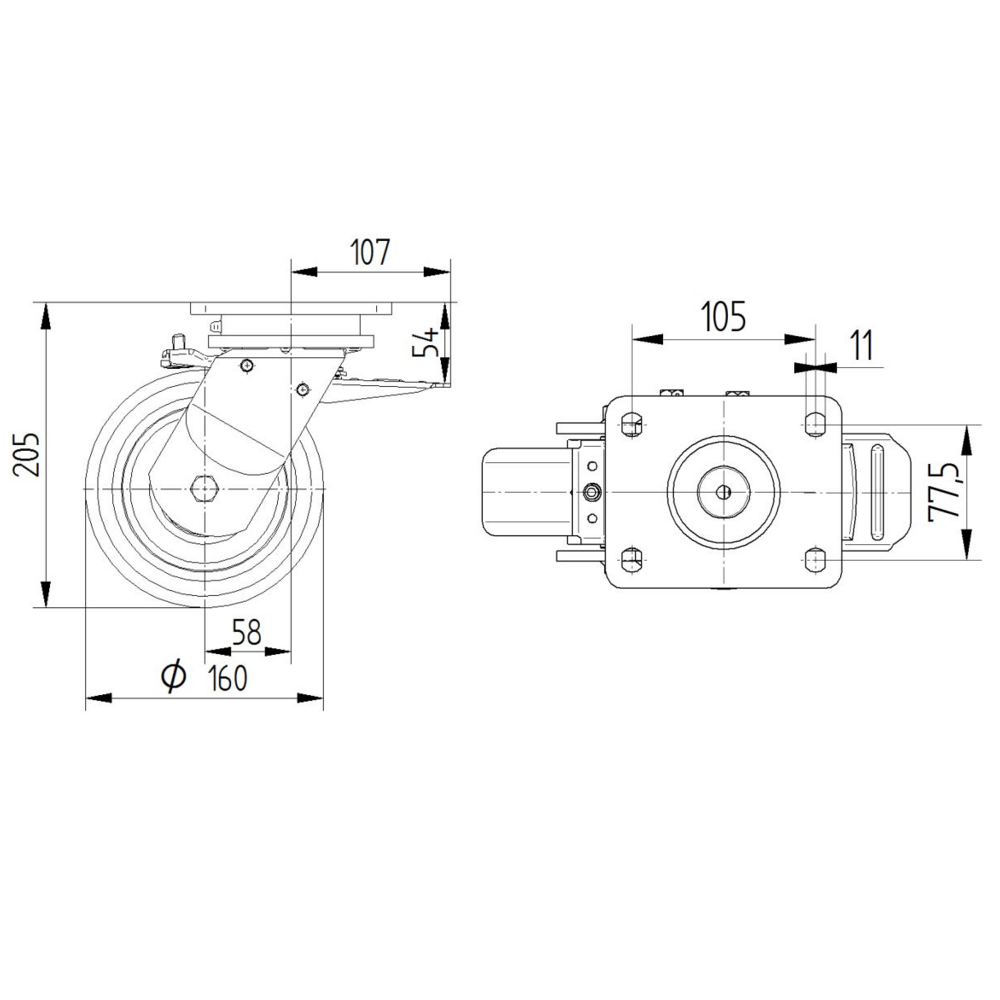

Swivel castor with total lock, head end of castor 6.3 in
- Non-hazardous materials
- Tested quality
- Strong construction
Accessories
This Accessory is designed as a specialized component for caster applications, engineered to enhance functionality and performance in mobile equipment systems. Weighing 1.48 lb, this accessory provides reliable integration with standard caster assemblies while maintaining optimal weight distribution for smooth operation. The unit's construction ensures compatibility with various caster configurations.
The Novatech caster wheel features a casting body construction with a casted polyurethane tread measuring 1.97 inches in width and 6.3 inches in diameter, equipped with precision ball bearing technology and a hub length of 2.36 inches with an axle hole diameter of 0.79 inches. This wheel delivers exceptional load performance with a static load capacity of 3968.32 lb and dynamic load capacities of 2425.08 lb at speeds up to 2.49 mph and 1984.16 lb at speeds up to 3.73 mph, making it ideal for demanding industrial applications.
Crossselling

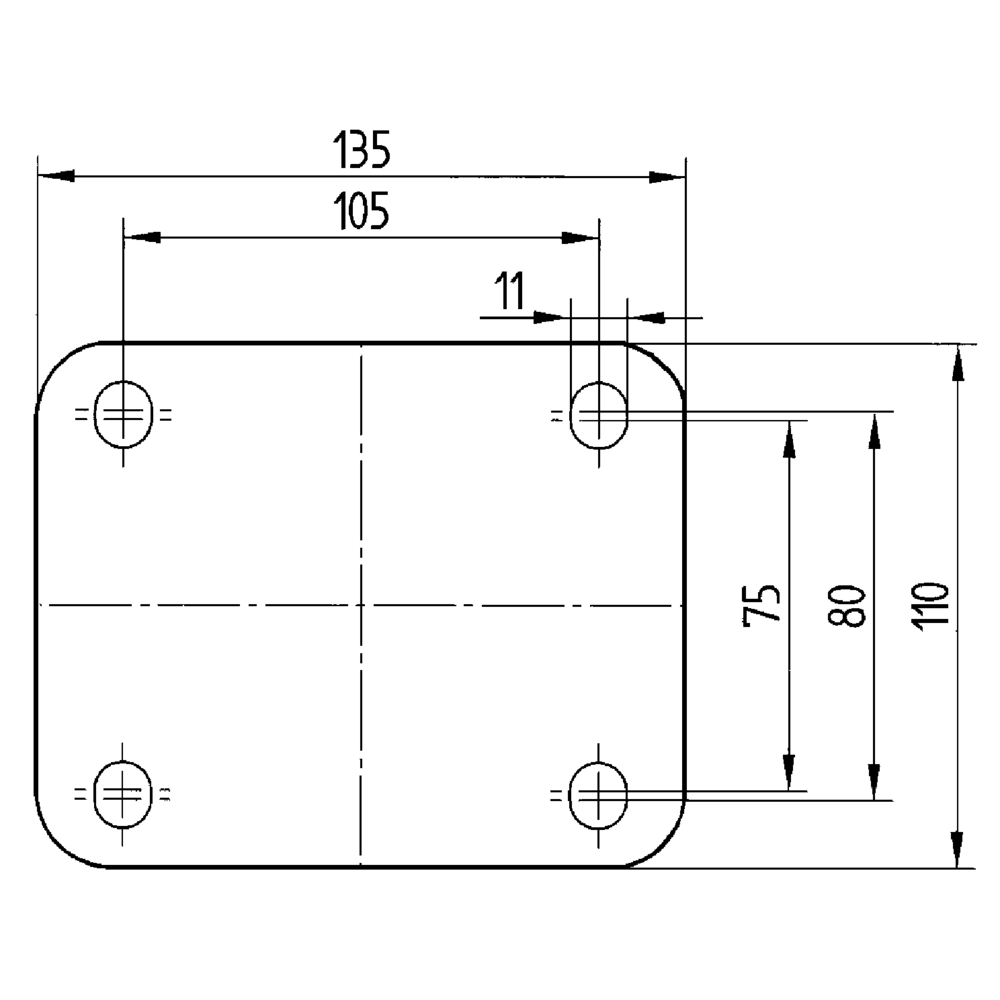

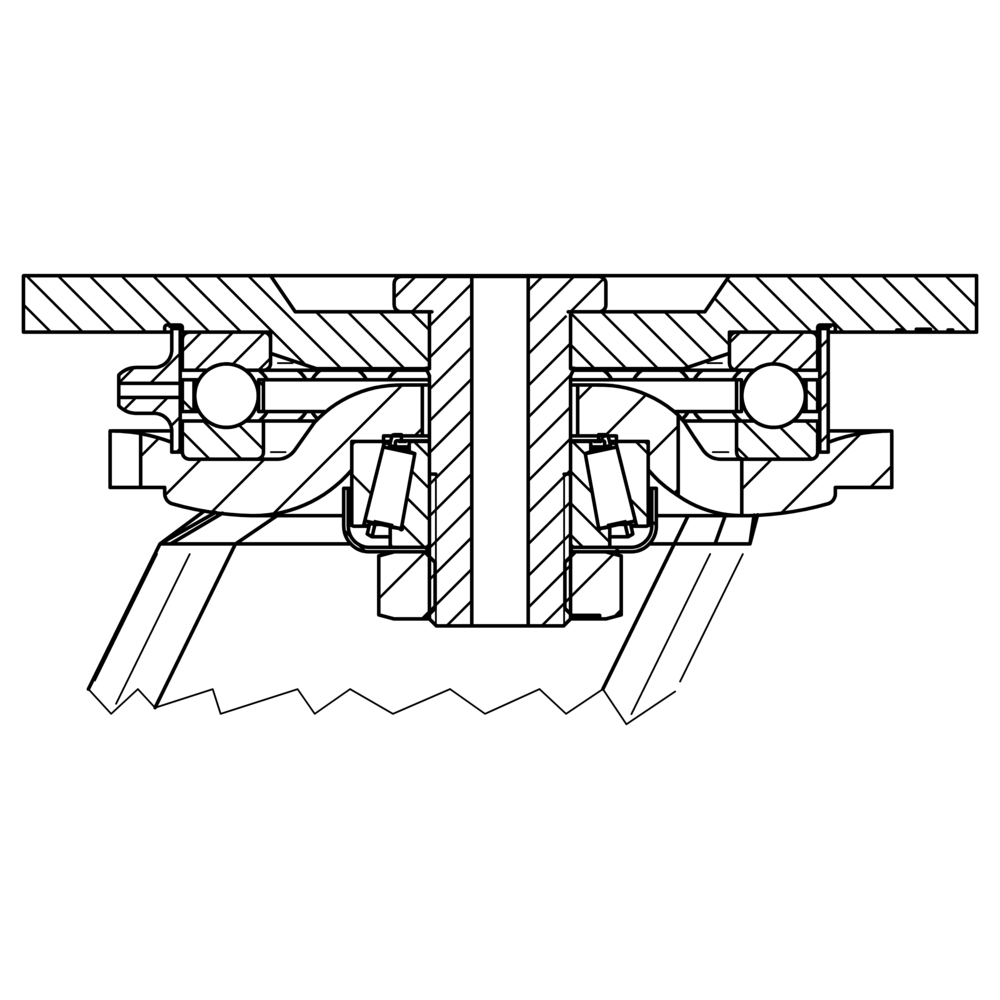

The Kappa load swivel caster features a rectangular plate fitting for secure mounting applications. The housing is constructed from cast iron, or iron forged, heavy material and incorporates a deep-groove ball thrust roller bearing swivel mechanism for smooth directional changes under load. The wheel assembly consists of a casting body with polyurethane, casted tread material and precision ball bearing for optimal performance and durability. The wheel measures 6.3 inches in diameter, with an overall height of 8.07 inches. Load specifications include dynamic capacities of 1984.16 lb at 2.5 mph and 1653.47 lb at 3.7 mph, plus a static load capacity of 3306.93 lb. This heavy-duty caster is engineered for demanding applications including aerospace industry and airport equipment, AMR systems, automotive OEM, ceramic and glass manufacturers, production and platform trolleys, and heavy AGV systems.
The Kappa load is a swivel caster with directional lock designed for heavy-duty industrial applications. It features a rectangular plate fitting for secure mounting to equipment and platforms. The housing is constructed from cast iron or iron forged heavy material and incorporates a deep-groove ball thrust roller bearing swivel mechanism for smooth directional movement and reliable locking functionality. The wheel assembly consists of a casting body with polyurethane casted tread material and precision ball bearing for optimal performance and durability. The wheel diameter measures 6.3 inches with an overall height of 8.07 inches. Load specifications include a dynamic capacity of 1984.16 lb at 2.5 mph and 1653.47 lb at 3.7 mph, with a static load capacity of 3306.93 lb. This heavy-duty caster is specifically engineered for demanding applications including aerospace industry and airport equipment, AMR systems, automotive OEM, ceramic and glass manufacturers, production and platform trolleys, and heavy AGV systems.
