Swivel castor with total lock 4.92 in

ICS
detail.eanLabel 4031582367737
Product number: 5327XSX125R05-28x45
  • Non-hazardous materials
  • Tested quality
  • Colour matching
The ICS swivel caster with total lock features a solid stem, round fitting that provides secure mounting capabilities. The housi... Details
Features
  • 4.92 mm
  • 6.38 mm
  • 220.4600 kg
Custom or high volume? Request a quote now.
You have saved products in your offer list Request now

CAD files

Data sheets

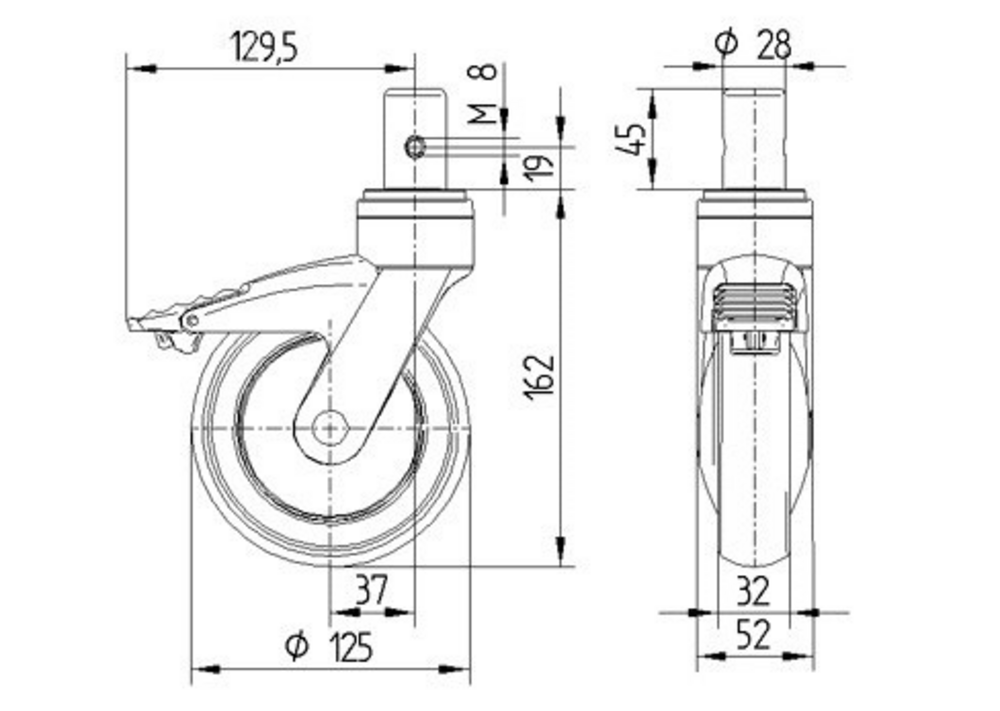

The ICS swivel caster with total lock features a solid stem, round fitting that provides secure mounting capabilities. The housing is constructed from durable polyamide material and incorporates a stem, swiveling swivel bearing mechanism for smooth directional changes. The wheel assembly consists of a polyamide, electric conductive body paired with polyurethane, injected, electric-conductive tread material, ensuring reliable electrical conductivity throughout operation. The wheel is equipped with precision ball bearing, sealed for enhanced durability and performance, with a diameter of 4.92 inches. The caster has an overall height of 6.38 inches, making it suitable for various industrial applications. Load specifications include a dynamic capacity of 220.46 lb at speeds up to 1.86 mph and a static load capacity of 440.92 lb. This caster is specifically designed for care beds applications where electrical conductivity and reliable locking functionality are essential requirements.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Article Number
5327XSX125R05-28x45
EAN
4031582367737
Core attributes
Type
Swivel castor with total lock
Load capacity at 3 km/h
220.46 lb
Load capacity Static
440.92 lb
Overall height
6.38 in
Temperature range (Maximum)
104 °F
Temperature range (Minimum)
14 °F
Overall weight
1.88 lb
Product name
ICS
Standard
EN12530 - Devices Castors
Electric conductive
Stainless
Fitting
Fitting type

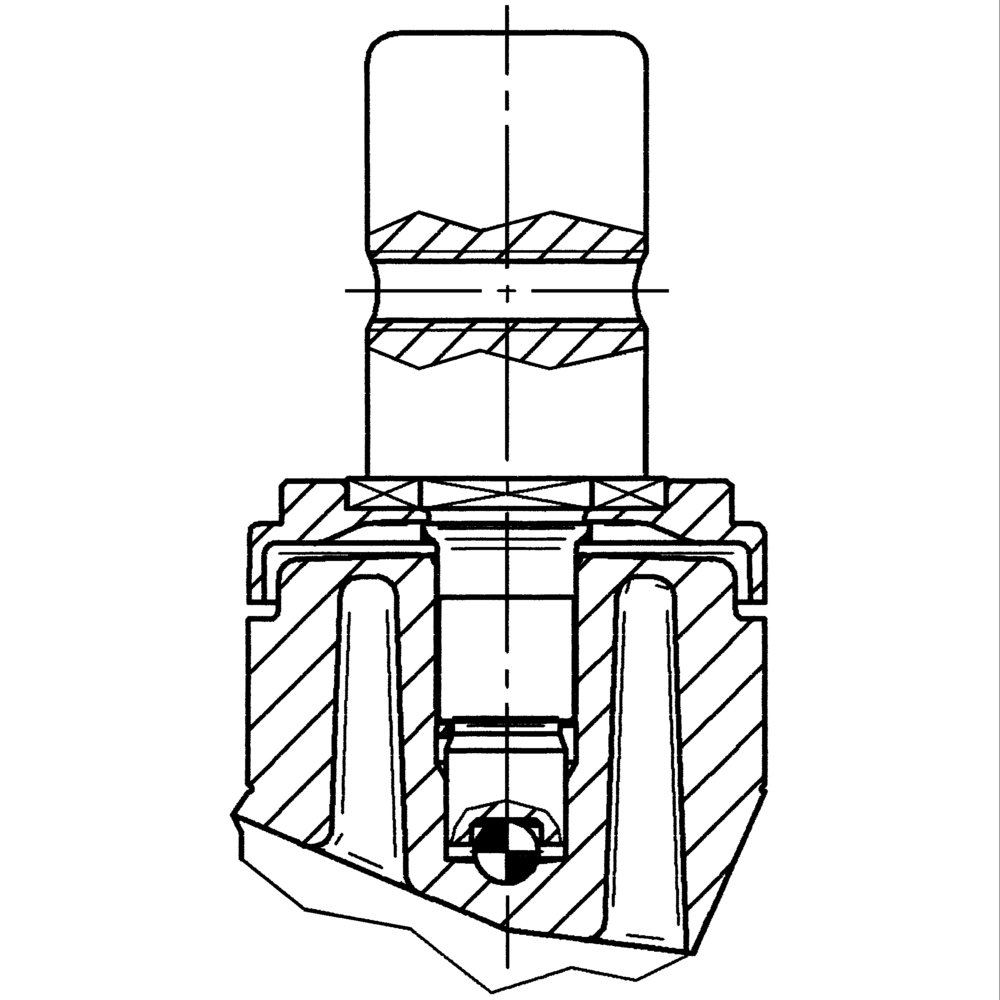

Solid stem, round
Bolt diameter
1.1 in
Bolt length
1.77 in
Housing
Fork shape
Slim
Material
Polyamide
Swivel bearing
Stem, swiveling
Swivel interference
10.2 in
Offset
1.5 in
Wheel
Hardness of tread (A)
92 Shore A
Hardness of tread (D)
40 Shore D
Body material
Polyamide, electric conductive
Tread material
Polyurethane, injected, electric-conductive
Tread width
1.26 in
Diameter
4.92 in
Threadguards
Integrated threadguard
Bearing
Precision ball bearing, sealed

IF Design Award

IF Design Award

special-features-image
Special Features
detail.specialFeatures.subtitle
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic hydrocarbons or chromium (VI)
Tested quality
Tested in our own laboratory for compliance with European standards
Prevents unintended movement
Wheel lock for manual operation
Secured stand
Total lock for simultaneously locking the wheel and swivel housing
Colour matching
Colors can be adapted to match the product design
Award-winning design
Awarded with prestigious prizes by international juries
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort
Non-marking movement
Wheels with reduced abrasion and minimal cleaning requirements
Ergonomically friendly use
Wheels with optimised rolling resistance to reduce user effort
Certified conductivity
Conductive version to protect users and electrical devices from electrostatic discharge
Protective seal
Wheels with sealed bearings to protect against spray water and dirt
