Swivel castor with total lock 3.15 in

Alpha stainless
detail.eanLabel 4031582377187
Product number: 8477UOD080P30-11
  • Non-hazardous materials
  • Tested quality
  • Uninterrupted use
The Alpha stainless swivel castor with total lock and bolt hole fitting features a heavy stainless steel housing and two ball ra... Details
Features
  • 3.15 mm
  • 4.25 mm
  • 330.6900 kg
Custom or high volume? Request a quote now.
You have saved products in your offer list Request now

CAD files

Data sheets

The Alpha stainless swivel castor with total lock and bolt hole fitting features a heavy stainless steel housing and two ball races swivel bearing. The polyamide wheel body and tread material are identical. The wheel has a stainless roller bearing. This castor has a 3.15 inch diameter wheel and an overall height of 4.25 inches. It has a load capacity of 330.69 pounds at 4 km/h and a static load capacity of 661.39 pounds. The total lock function allows the castor to be completely immobilized when needed while still providing smooth 360 degree rotation when unlocked. The stainless steel construction ensures durability and corrosion resistance. The bolt hole fitting allows secure attachment to equipment or furniture. The polyamide wheel glides easily. This heavy duty swivel castor is ideal for industrial, medical, food service, institutional, and other demanding applications requiring high loads, swiveling, and occasional total locking of wheels.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Article Number
8477UOD080P30-11
EAN
4031582377187

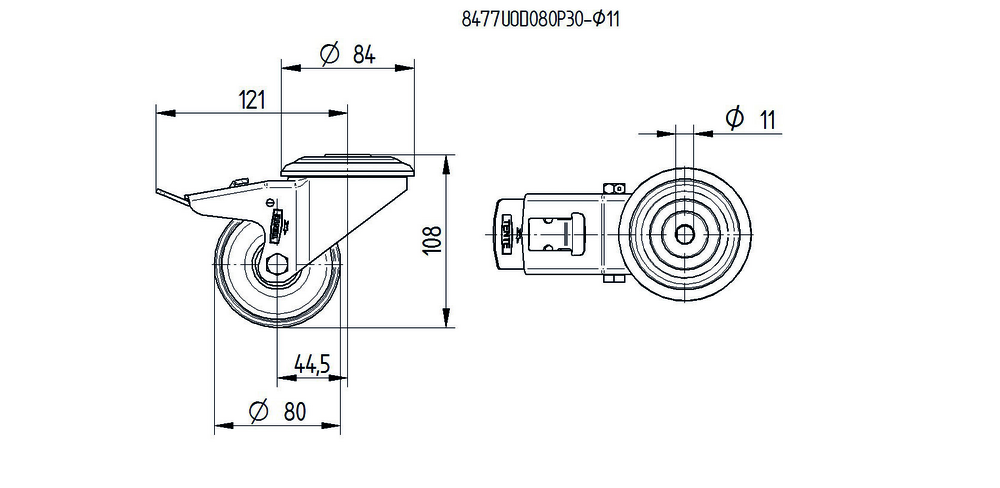

Core attributes
Type
Swivel castor with total lock
Load capacity at 4 km/h
330.69 lb
Load capacity Static
661.39 lb
Overall height
4.25 in
Temperature range (Maximum)
176 °F
Temperature range (Minimum)
-40 °F
Overall weight
1.85 lb
Product name
Alpha stainless
Standard
EN12532 - Transport Equipment
Electric conductive
Stainless
Fitting
Fitting type
Bolt hole
Bolt hole diameter
0.43 in
Housing
Fork shape
Broad
Material
Stainless steel, heavy

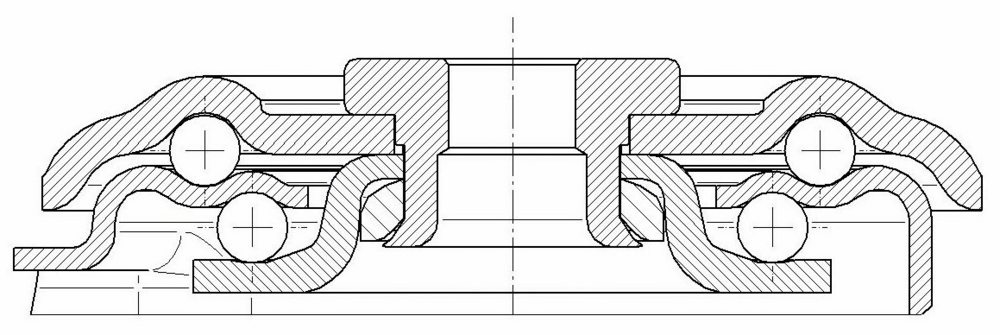

Swivel bearing
Two ball races
Swivel interference
9.53 in
Offset
1.75 in
Wheel
Hardness of tread (D)
75 Shore D
Body material
Polyamide
Tread material
Identical with wheel body
Tread width
1.34 in
Diameter
3.15 in
Axle
Screwed with nut
Bearing
Roller bearing, stainless
special-features-image
Special Features
detail.specialFeatures.subtitle
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic hydrocarbons or chromium (VI)
Tested quality
Tested in our own laboratory for compliance with European standards
Solid housing
Made of pressed steel, zinc plated
Prevents unintended movement
Wheel lock for manual operation
Secured stand
Total lock for simultaneously locking the wheel and swivel housing
Variable fitting options
Different fitting dimensions for a wide range of applications
Resource-conserving part replacement
Threaded axles allow effortless wheel change
Uninterrupted use
Swivel bearing with dust ring for continuous, uninterrupted movement
Low wear and tear wheels
Durable wheels with extremely low wear
Easy steering
Swivel head with double ball bearings
Permanent washability
All metal components made of stainless steel
Low maintenance materials
All metal components made of aluminum or stainless steel
