Swivel castor with directional lock 15.75 in

Omikron twin
detail.eanLabel 4031582480764
Product number: 9951FTP400P41-400 TFR
  • Non-hazardous materials
  • Tested quality
  • Strong construction
The Omikron twin is a swivel caster with directional lock designed for heavy-duty industrial applications. The unit features a s... Details
Features
  • 15.75 in
  • 22.44 in
  • 24251 lb
Custom or high volume? Request a quote now.
You have saved products in your offer list Request now

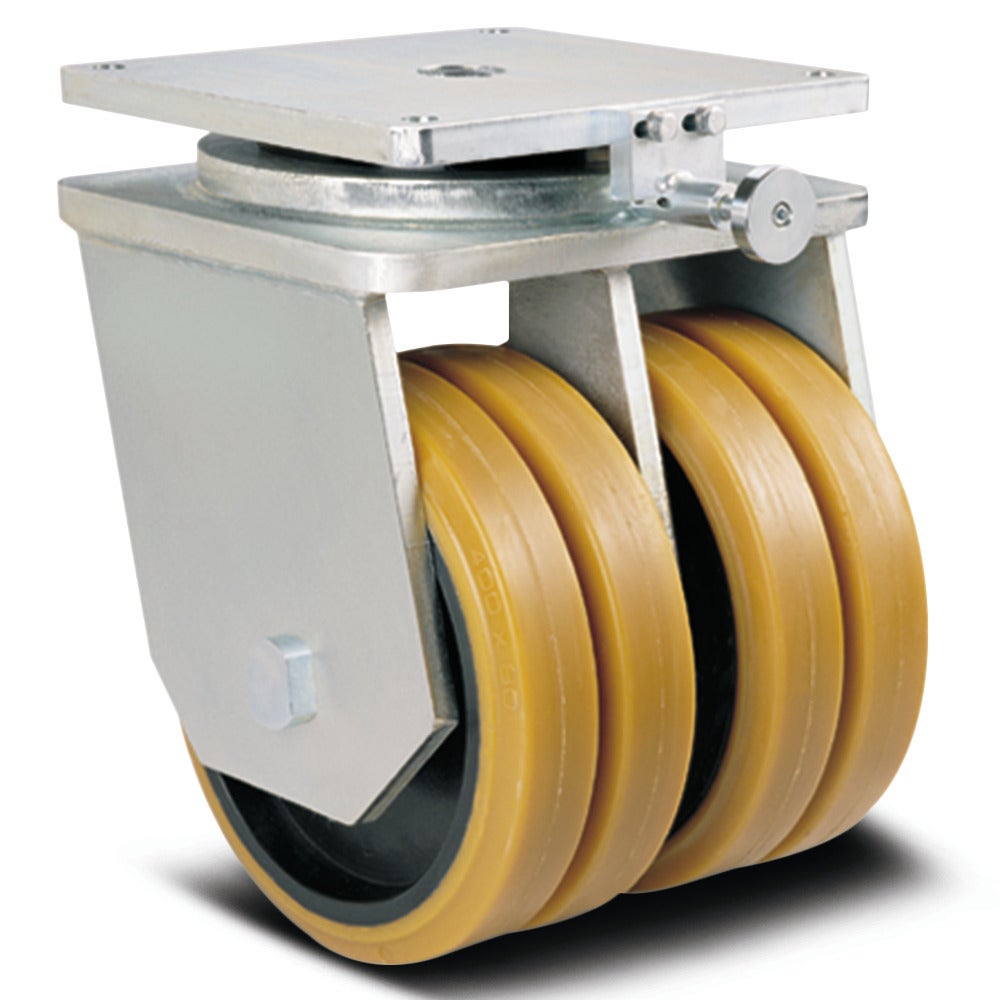

The Omikron twin is a swivel caster with directional lock designed for heavy-duty industrial applications. The unit features a square plate fitting for secure mounting to equipment platforms. The housing is constructed from cast iron, or iron forged, heavy material and incorporates a deep-groove ball thrust roller bearing swivel mechanism for smooth directional movement and reliable locking functionality. The wheel assembly consists of a casting body with polyurethane, casted tread material that provides excellent floor protection and quiet operation, while precision ball bearings ensure smooth rolling performance. The wheel measures 15.75 inches in diameter, and the overall height of the complete caster assembly is 22.44 inches. The unit offers a dynamic load capacity of 24,250.82 pounds at speeds up to 1.86 miles per hour, making it ideal for aerospace industry, airport equipment, and heavy AGV systems where exceptional load-bearing capacity and precise directional control are essential requirements.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Article Number
9951FTP400P41-400 TFR
EAN
4031582480764
Core attributes
Type
Swivel castor with directional lock
Load capacity at 3 km/h
24250.82 lb
Overall height
22.44 in
Temperature range (Maximum)
140 °F
Temperature range (Minimum)
-4 °F
Overall weight
544.51 lb
Product name
Omikron twin
Electric conductive
Stainless

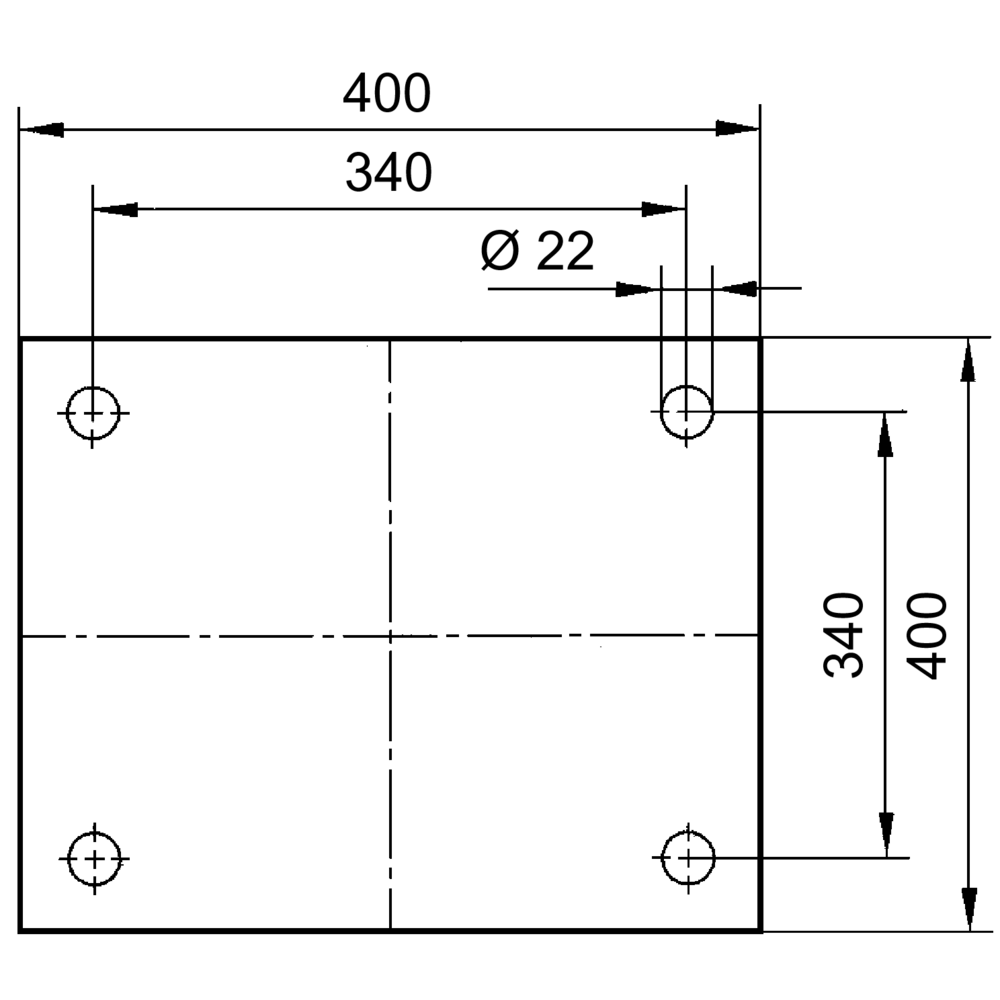

Fitting
Fitting type
Square plate
Plate hole diameter
0.87 in
Plate hole length (Maximum)
13.39 in
Plate hole width (Maximum)
13.39 in
Plate length
15.75 in
Plate width
15.75 in
Housing
Fork shape
Twin wheel housing
Material
Cast iron, or iron forged, heavy
Swivel bearing
Deep-groove ball thrust roller bearing
Swivel interference
13.39 in
Offset
3.54 in
Swivel radius
6.69 in
Wheel
Hardness of tread (A)
92 Shore A
Body material
Casting
Tread material
Polyurethane, casted
Tread width
3.15 in
Diameter
15.75 in
Threadguards
With threadguard
Axle
Screwed with nut
Bearing
Precision ball bearing
special-features-image
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic hydrocarbons or chromium (VI)
Tested quality
Tested in our own laboratory for compliance with European standards
Solid housing
Made of pressed steel, zinc plated
Strong construction
Housing made of heavy steel for high load capacity
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort
Non-marking movement
Wheels with reduced abrasion and minimal cleaning requirements
Ergonomically friendly use
Wheels with optimised rolling resistance to reduce user effort
Quick maintenance
Swivel bearings lubricated with long-life grease and fitted with grease nipple for easy maintenance
Extra heavy duty construction
Welded solid steel construction for maximum load capacity
Heavy duty construction
Extra heavy steel housing for high load capacity
Optimised manoeuvrability
Twin wheel castor with high maneuverability due to differential effect
Protect floors with load distribution
Two wheels distribute the load and minimise floor impressions
