Swivel castor 9.84 in

Kappa load

detail.eanLabel 4031582390537

Product number: 9650TOP250P64 TFR

Non-hazardous materials
Tested quality
Strong construction

The Kappa load swivel caster features a rectangular plate fitting for secure mounting applications. The housing is constructed f... Details

Features

9.84 mm
12.01 mm
2910.1000 kg

Wheel

Wheel Diameter

Housing Color

Housing

Fitting

Custom or high volume? Request a quote now.

Data sheets

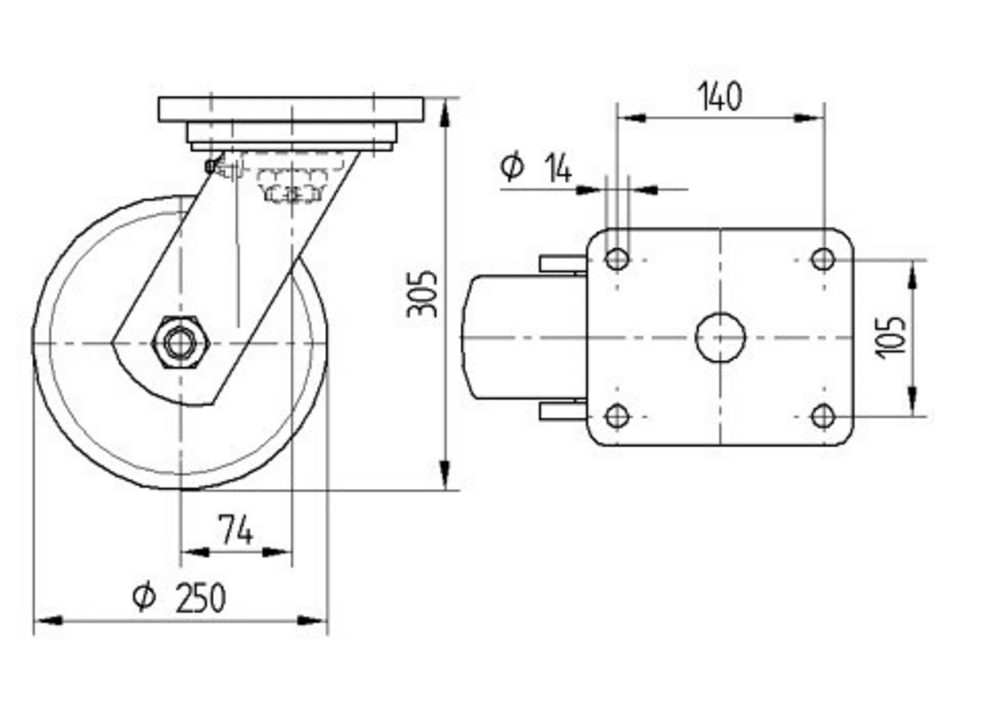

The Kappa load swivel caster features a rectangular plate fitting for secure mounting applications. The housing is constructed from cast iron or heavy iron forged material, incorporating a deep-groove ball thrust roller bearing swivel mechanism for smooth directional changes under load. The wheel assembly consists of a heavy-duty polyamide body with matching polyamide tread material, mounted on precision ball bearings for optimal rolling performance. The wheel diameter measures 9.84 inches with an overall caster height of 12.01 inches. Load specifications include a static capacity of 5,820.2 lb and dynamic capacities of 2,910.1 lb at 2.5 mph and 2,425.08 lb at 3.7 mph rolling speeds. This heavy-duty caster design provides reliable performance for industrial applications requiring high load capacity and durability in demanding operational environments.

Roll performance

Movement noise

Attrition

Corrosion resistance

Article numbers

Article Number

9650TOP250P64 TFR

EAN

4031582390537

Core attributes

Type

Swivel castor

Load capacity at 4 km/h

2910.1 lb

Load capacity at 6 km/h

2425.08 lb

Load capacity Static

5820.2 lb

Overall height

12.01 in

Temperature range (Maximum)

176 °F

Temperature range (Minimum)

-22 °F

Overall weight

14.37 lb

Product name

Kappa load

Standard

EN12533 - Heavy Duty Castors

Electric conductive

Stainless

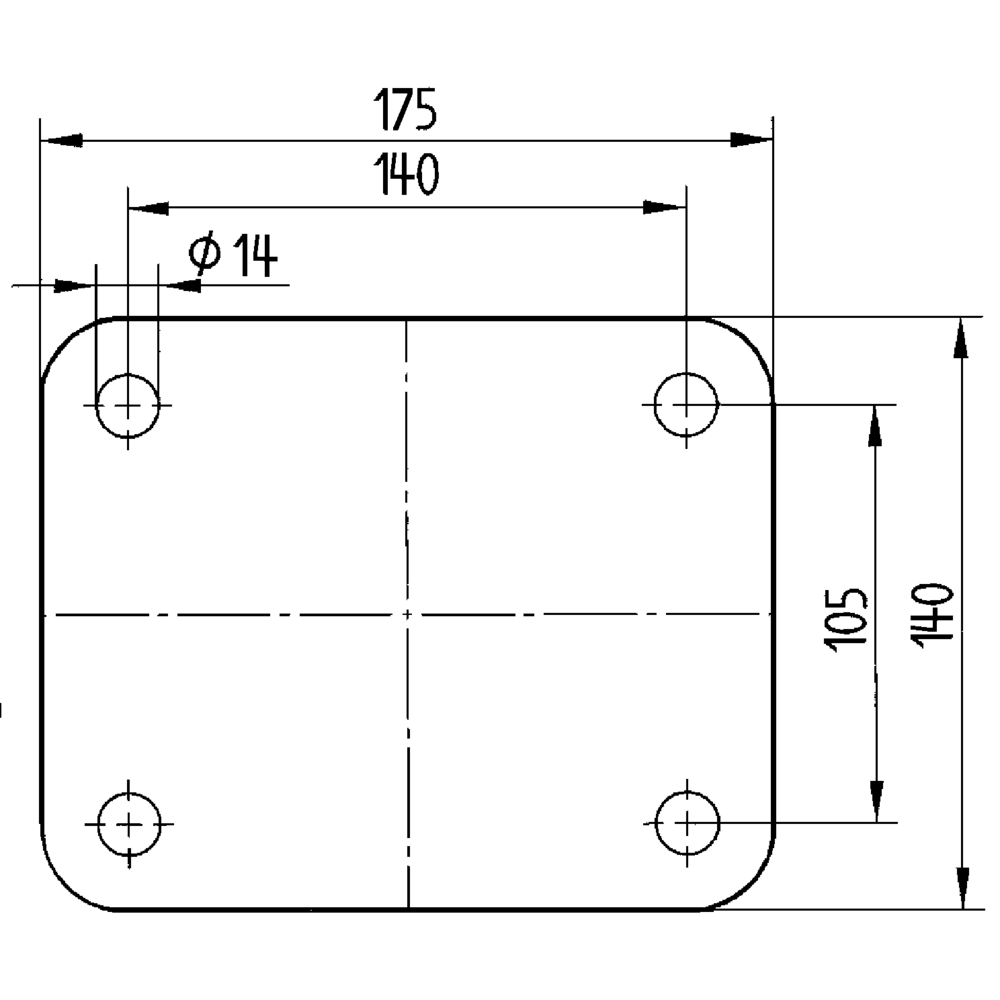

Fitting

Fitting type

Rectangular plate

Plate hole diameter

0.59 in

Plate hole length (Maximum)

5.51 in

Plate hole width (Maximum)

4.13 in

Plate length

6.89 in

Plate width

5.51 in

Housing

Fork shape

Broad, reinforced

Material

Cast iron, or iron forged, heavy

Swivel bearing

Deep-groove ball thrust roller bearing

Swivel interference

15.67 in

Offset

2.91 in

Swivel radius

7.83 in

Wheel

Hardness of tread (D)

75 Shore D

Body material

Polyamide, heavy

Tread material

Identical with wheel body

Tread width

1.97 in

Diameter

9.84 in

Threadguards

Without threadguard

Axle

Screwed with nut

Bearing

Precision ball bearing

Special Features

detail.specialFeatures.subtitle

Non-hazardous materials

Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic hydrocarbons or chromium (VI)

Tested quality

Tested in our own laboratory for compliance with European standards

Solid housing

Made of pressed steel, zinc plated

Strong construction

Housing made of heavy steel for high load capacity

Low wear and tear wheels

Durable wheels with extremely low wear
