Swivel castor 5.91 in

Agila care US
detail.eanLabel 4031582300390
Product number: 2440JFX150R05-28
  • Non-hazardous materials
  • Tested quality
  • Sterile cleaning
The Agila care US swivel caster features a solid stem, round fitting for secure mounting applications. The housing is constructe... Details
Features
  • 5.91 mm
  • 7.58 mm
  • 330.6900 kg
Custom or high volume? Request a quote now.
You have saved products in your offer list Request now

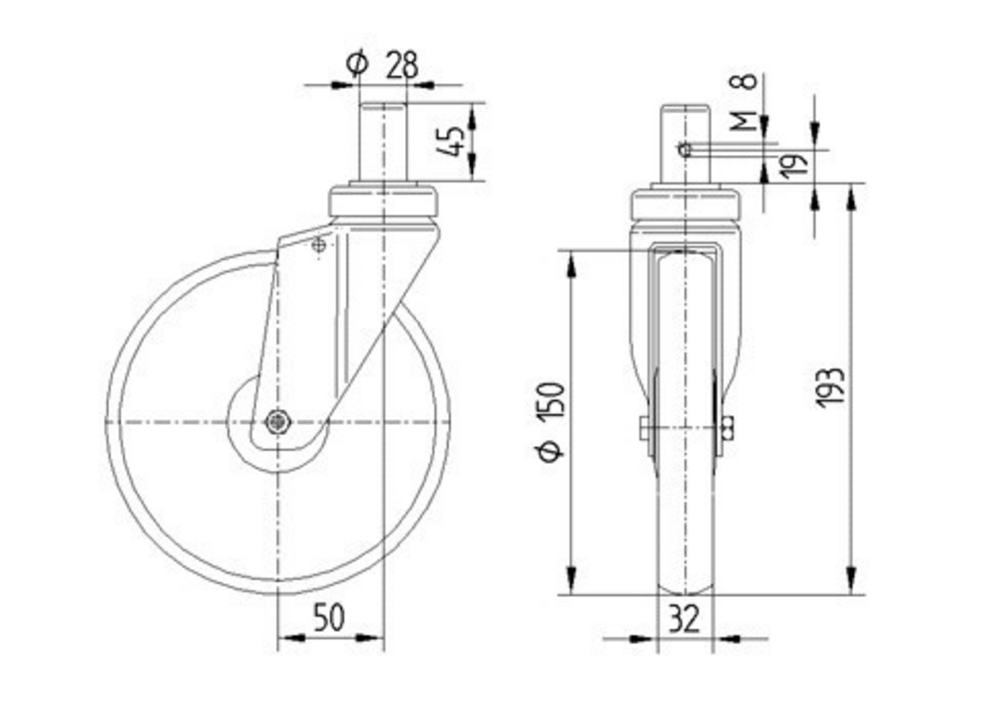

The Agila care US swivel caster features a solid stem, round fitting for secure mounting applications. The housing is constructed from steel sheet, medium grade material and incorporates a precision ball bearing swivel mechanism for smooth directional changes. The wheel assembly consists of a zinc die-cast body fitted with an elastic tire, non-marking, vulcanized tread material, supported by precision ball bearing, sealed for reliable operation. The wheel measures 5.91 inches in diameter, while the overall height of the complete caster assembly is 7.58 inches. Load specifications include a dynamic capacity of 330.69 pounds at speeds up to 1.86 miles per hour and a static load capacity of 661.39 pounds. This caster is specifically designed for care beds applications, providing reliable mobility solutions in healthcare environments.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Article Number
2440JFX150R05-28
EAN
4031582300390
Core attributes
Type
Swivel castor
Load capacity at 3 km/h
330.69 lb
Load capacity Static
661.39 lb
Overall height
7.58 in
Temperature range (Maximum)
185 °F
Temperature range (Minimum)
-4 °F
Overall weight
3.92 lb
Product name
Agila care US
Standard
EN12530 - Devices Castors
Electric conductive
Stainless
Fitting
Fitting type
Solid stem, round
Bolt diameter
1.1 in
Bolt length
1.77 in
Housing
Fork shape
Broad
Material
Steel sheet, medium
Swivel bearing
Precision ball bearing
Swivel interference
9.84 in
Offset
1.97 in
Swivel radius
4.92 in
Wheel
Hardness of tread (A)
75 Shore A
Body material
Zinc die-cast
Tread material
Elastic tire, non-marking, vulcanized
Tread width
1.26 in
Diameter
5.91 in
Threadguards
With threadguard
Bearing
Precision ball bearing, sealed
special-features-image
Special Features
detail.specialFeatures.subtitle
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic hydrocarbons or chromium (VI)
Tested quality
Tested in our own laboratory for compliance with European standards
Solid housing
Made of pressed steel, zinc plated
Sterile cleaning
Wheels for steam sterilisation in autoclaves used in sterile areas
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort
Non-marking movement
Wheels with reduced abrasion and minimal cleaning requirements
Quiet rolling
Soft wheel versions for a quiet working environment
Low-vibration transport
Extra soft wheels with good shock-absorbing properties
Certified conductivity
Conductive version to protect users and electrical devices from electrostatic discharge
Protective seal
Wheels with sealed bearings to protect against spray water and dirt
