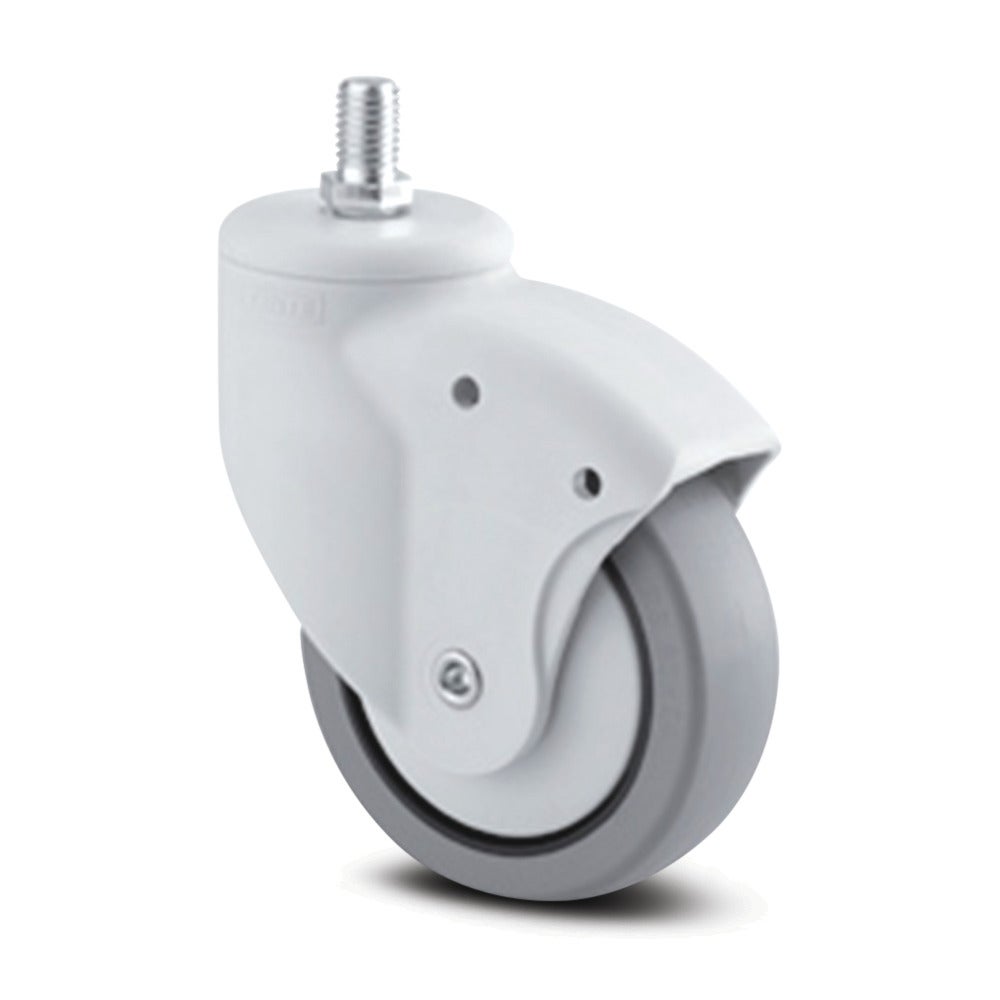

Swivel castor 3.15 in

Mono
detail.eanLabel 4031582385755
Product number: 5020PJH080S70-10X15 TFR
  • Non-hazardous materials
  • Tested quality
  • Colour matching
The Mono swivel caster features a threaded stem with hexagon neck, top fitting for secure mounting applications. The housing is ... Details
Features
  • 4.33 mm
  • 3.15 mm
  • 154.3200 kg
Custom or high volume? Request a quote now.
You have saved products in your offer list Request now
The Mono swivel caster features a threaded stem with hexagon neck, top fitting for secure mounting applications. The housing is constructed from durable polyamide material and incorporates a stem swiveling bearing system that enables smooth directional changes. The wheel assembly consists of a polypropylene body with thermoplastic rubber tread material, providing excellent floor protection and quiet operation. The wheel utilizes a plain bearing system and measures 3.15 inches in diameter. The caster has an overall height of 4.33 inches, making it suitable for medium-duty applications. Load specifications include a dynamic capacity of 154.32 pounds at speeds up to 1.86 miles per hour, while the static load capacity reaches 308.65 pounds, ensuring reliable performance under varying operational conditions.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Article Number
5020PJH080S70-10X15 TFR
EAN
4031582385755
Core attributes
Type
Swivel castor
Load capacity at 3 km/h
154.32 lb
Load capacity Static
308.65 lb
Overall height
4.33 in
Temperature range (Maximum)
104 °F
Temperature range (Minimum)
14 °F
Overall weight
0.4 lb
Product name
Mono
Standard
EN12528 - Furniture Castors
Electric conductive
Stainless
Fitting
Fitting type

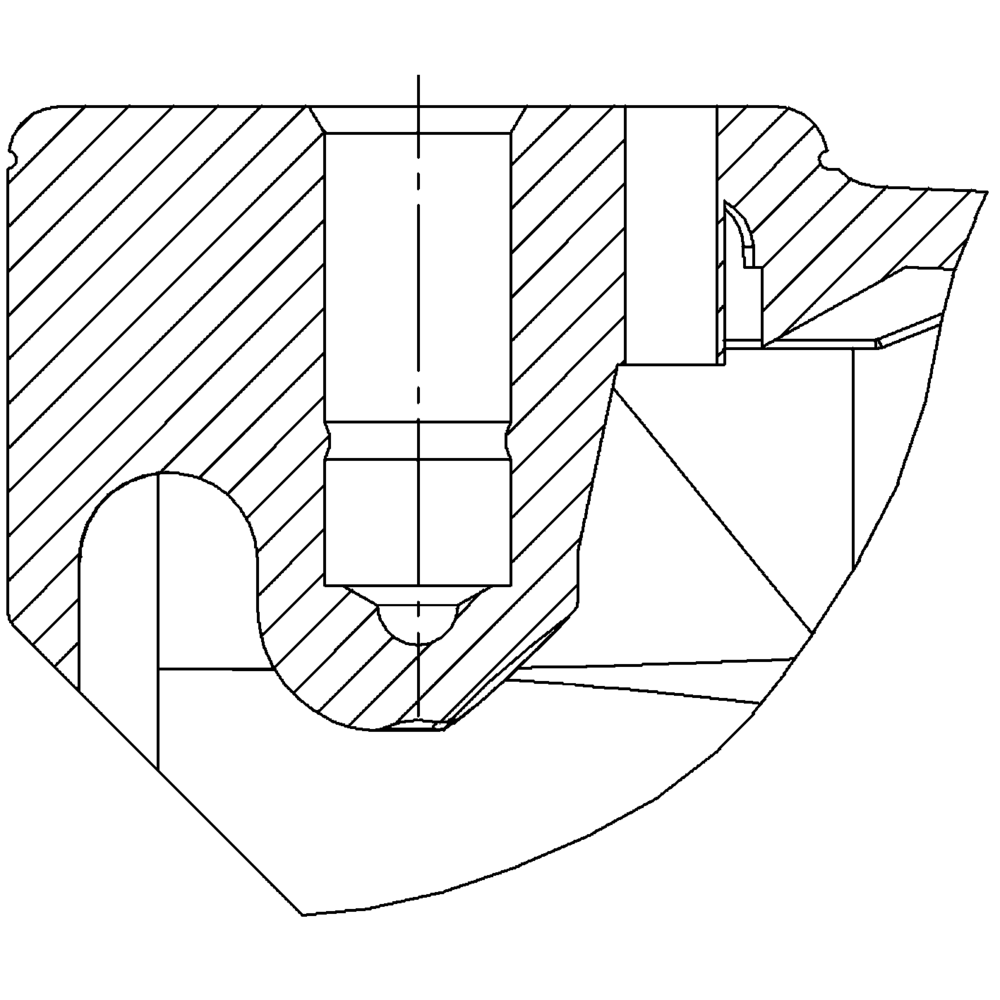

Threaded stem with hexagon neck, top
Stem diameter
0.39 in
Stem length
0.59 in
Housing
Fork shape
Closed
Material
Polyamide
Swivel bearing
Stem, swiveling
Swivel interference
5.83 in
Offset
1.34 in
Swivel radius
2.91 in
Thread diameter
0 in
Wheel
Hardness of tread (A)
87 Shore A
Body material
Polypropylene
Tread material
Thermoplastic rubber
Tread width
0.94 in
Diameter
3.15 in
Threadguards
With threadguard
Bearing
Plain bearing
special-features-image
Special Features
detail.specialFeatures.subtitle
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic hydrocarbons or chromium (VI)
Tested quality
Tested in our own laboratory for compliance with European standards
Variable fitting options
Different fitting dimensions for a wide range of applications
Colour matching
Colors can be adapted to match the product design
Painted surface
Gold, chrome, or glossy colors
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort
Non-marking movement
Wheels with reduced abrasion and minimal cleaning requirements
Chemical-resistant components
Insensitive to many cleaning agents and chemical substances
