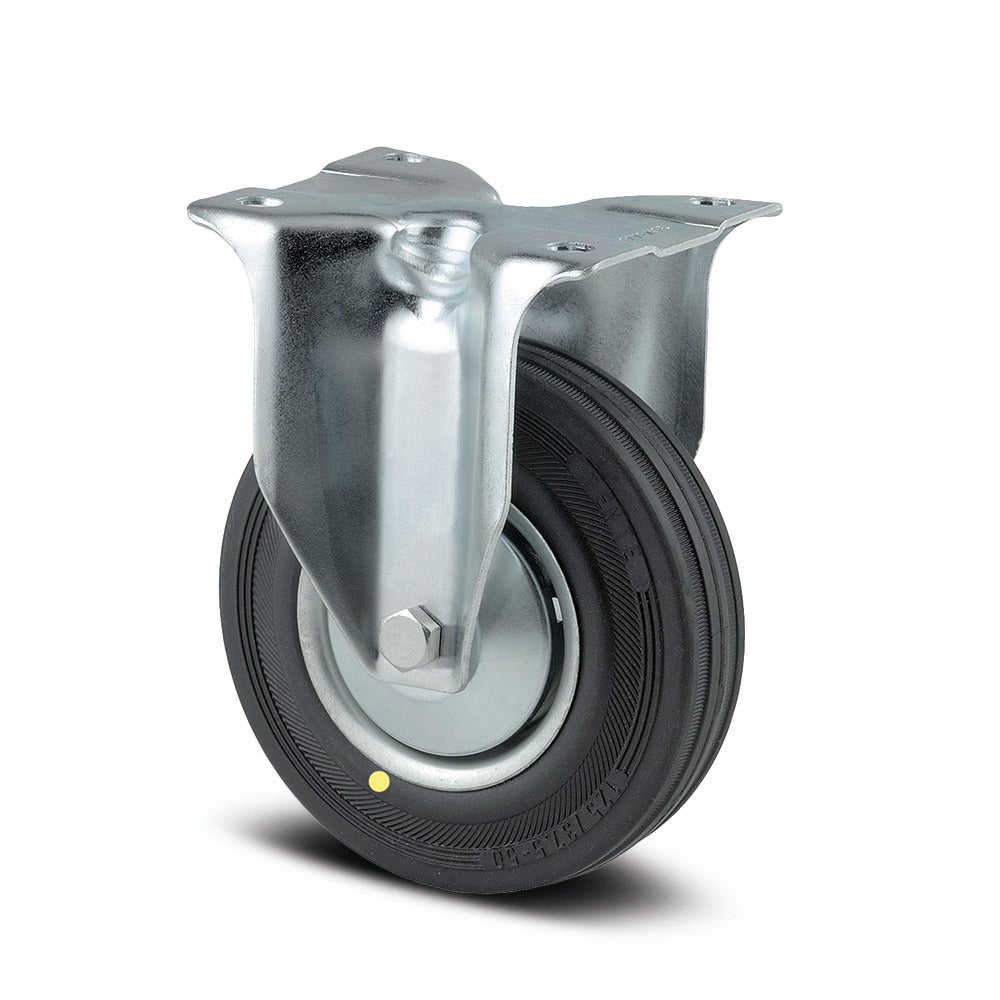

Fixed castor 4.92 in

Alpha
detail.eanLabel 4031582377118
Product number: 3478DYJ125P62
  • Non-hazardous materials
  • Tested quality
  • Uninterrupted use
The Alpha is a heavy duty castor with a rectangular plate fitting and a housing made of steel sheet. The wheel body is construct... Details
Features
  • 4.92 mm
  • 6.1 mm
  • 220.4600 kg
Custom or high volume? Request a quote now.
You have saved products in your offer list Request now

CAD files

Data sheets

The Alpha is a heavy duty castor with a rectangular plate fitting and a housing made of steel sheet. The wheel body is constructed of sheet steel with a solid rubber tread in black that is electric-conductive. The wheel uses roller bearings and has a diameter of 4.92 inches. The overall height of the castor is 6.1 inches. It has a load capacity of 220.46 pounds at 4 km/h and a static load capacity of 440.92 pounds. The rectangular base plate and durable steel construction make this castor ideal for heavy industrial applications where high loads, electric conductivity, and low rolling resistance are required.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Article Number
3478DYJ125P62
EAN
4031582377118
Core attributes
Type
Fixed castor
Load capacity at 4 km/h
220.46 lb
Load capacity Static
440.92 lb
Overall height
6.1 in
Temperature range (Maximum)
140 °F
Temperature range (Minimum)
-4 °F
Overall weight
2.11 lb
Product name
Alpha
Standard
EN12532 - Transport Equipment
Electric conductive
Stainless
Fitting
Fitting type
Rectangular plate
Plate hole diameter
0.35 in
Plate hole length (Maximum)
3.15 in
Plate hole length (Minimum)
3.03 in
Plate hole width (Maximum)
2.36 in
Plate length
4.06 in
Plate width
3.35 in
Housing
Fork shape
Broad
Material
Steel sheet, heavy
Wheel
Hardness of tread (A)
85 Shore A
Body material
Sheet Steel
Tread material
Solid rubber, black, electric-conductive
Tread width
1.46 in
Diameter
4.92 in
Threadguards
With threadguard
Axle
Screwed with nut
Bearing
Roller bearing
special-features-image
Special Features
detail.specialFeatures.subtitle
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic hydrocarbons or chromium (VI)
Tested quality
Tested in our own laboratory for compliance with European standards
Solid housing
Made of pressed steel, zinc plated
Variable fitting options
Different fitting dimensions for a wide range of applications
Resource-conserving part replacement
Threaded axles allow effortless wheel change
Uninterrupted use
Swivel bearing with dust ring for continuous, uninterrupted movement
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort
Certified conductivity
Conductive version to protect users and electrical devices from electrostatic discharge
Skip product gallery

Crossselling

Variants

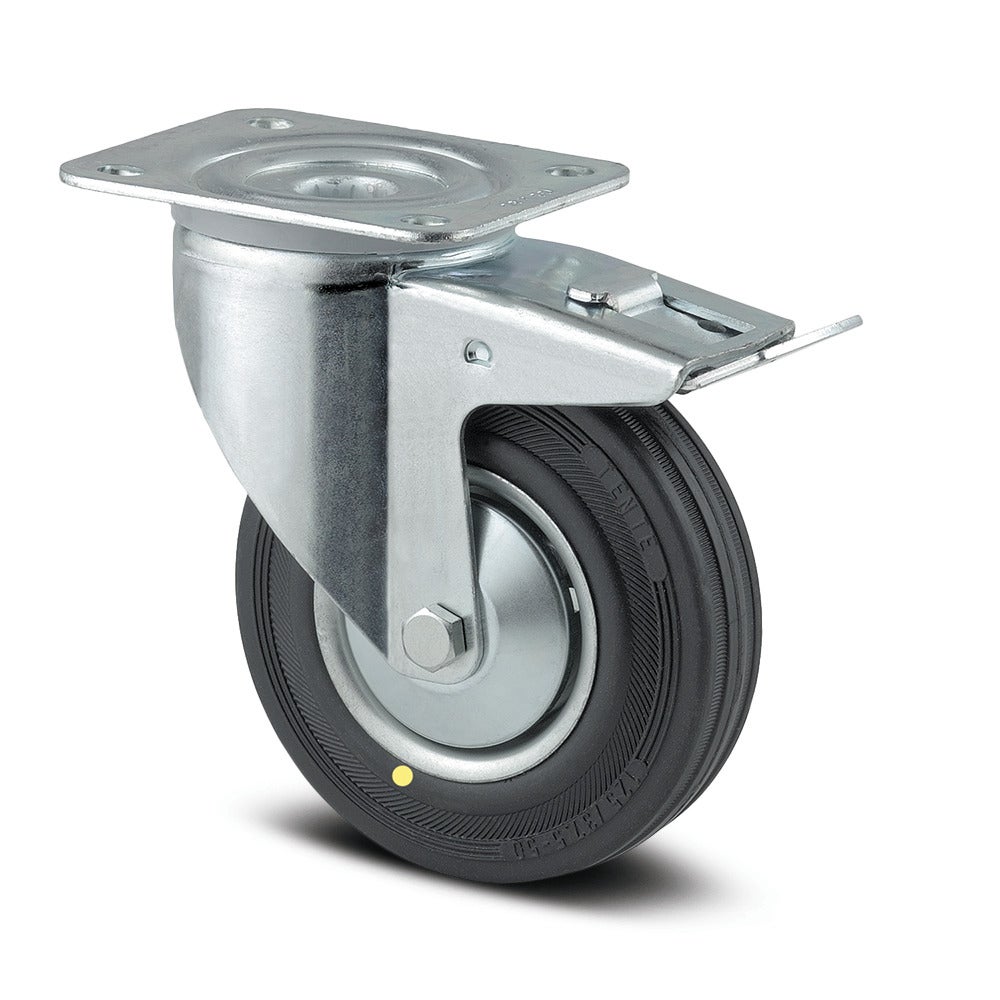

Swivel castor with total lock 4.92 in
