Fixed castor 3.94 in

Alpha

detail.eanLabel 4031582345728

Product number: 3478BOG100P62

Non-hazardous materials
Tested quality
Uninterrupted use

The Alpha fixed caster features a rectangular plate fitting for secure mounting applications. The housing is constructed from he... Details

Custom or high volume? Request a quote now.

Data sheets

The Alpha fixed caster features a rectangular plate fitting for secure mounting applications. The housing is constructed from heavy steel sheet material, providing robust structural support and durability in demanding industrial environments. The wheel incorporates a plastic thermoset, heat-resistant body material with tread material identical to the wheel body composition, ensuring consistent performance under elevated temperature conditions. The wheel operates on a dry bearing bush system and measures 3.94 inches in diameter. The overall height dimension of the complete caster assembly is 5.04 inches. Load capacity specifications include a dynamic load rating of 330.69 pounds at speeds up to 2.49 miles per hour, while the static load capacity reaches 661.39 pounds for stationary applications.

Roll performance

Movement noise

Attrition

Corrosion resistance

Article numbers

Article Number

3478BOG100P62

EAN

4031582345728

Core attributes

Type

Fixed castor

Load capacity at 4 km/h

330.69 lb

Load capacity Static

661.39 lb

Overall height

5.04 in

Temperature range (Maximum)

536 °F

Temperature range (Minimum)

-40 °F

Overall weight

1.21 lb

Product name

Alpha

Standard

EN12532 - Transport Equipment

Electric conductive

Stainless

Fitting

Fitting type

Rectangular plate

Plate hole diameter

0.35 in

Plate hole length (Maximum)

3.15 in

Plate hole length (Minimum)

3.03 in

Plate hole width (Maximum)

2.36 in

Plate length

4.06 in

Plate width

3.35 in

Housing

Fork shape

Broad

Material

Steel sheet, heavy

Wheel

Hardness of tread (D)

85 Shore D

Body material

Plastic thermoset, heat-resistant

Tread material

Identical with wheel body

Tread width

1.38 in

Diameter

3.94 in

Axle

Screwed with nut

Bearing

Dry bearing bush

Special Features

detail.specialFeatures.subtitle

Non-hazardous materials

Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic hydrocarbons or chromium (VI)

Tested quality

Tested in our own laboratory for compliance with European standards

Solid housing

Made of pressed steel, zinc plated

Variable fitting options

Different fitting dimensions for a wide range of applications

Resource-conserving part replacement

Threaded axles allow effortless wheel change

Uninterrupted use

Swivel bearing with dust ring for continuous, uninterrupted movement

Low wear and tear wheels

Durable wheels with extremely low wear

Constant heat resistance

Wheels made of heat-resistant material for use in extreme environments

Crossselling

Variants

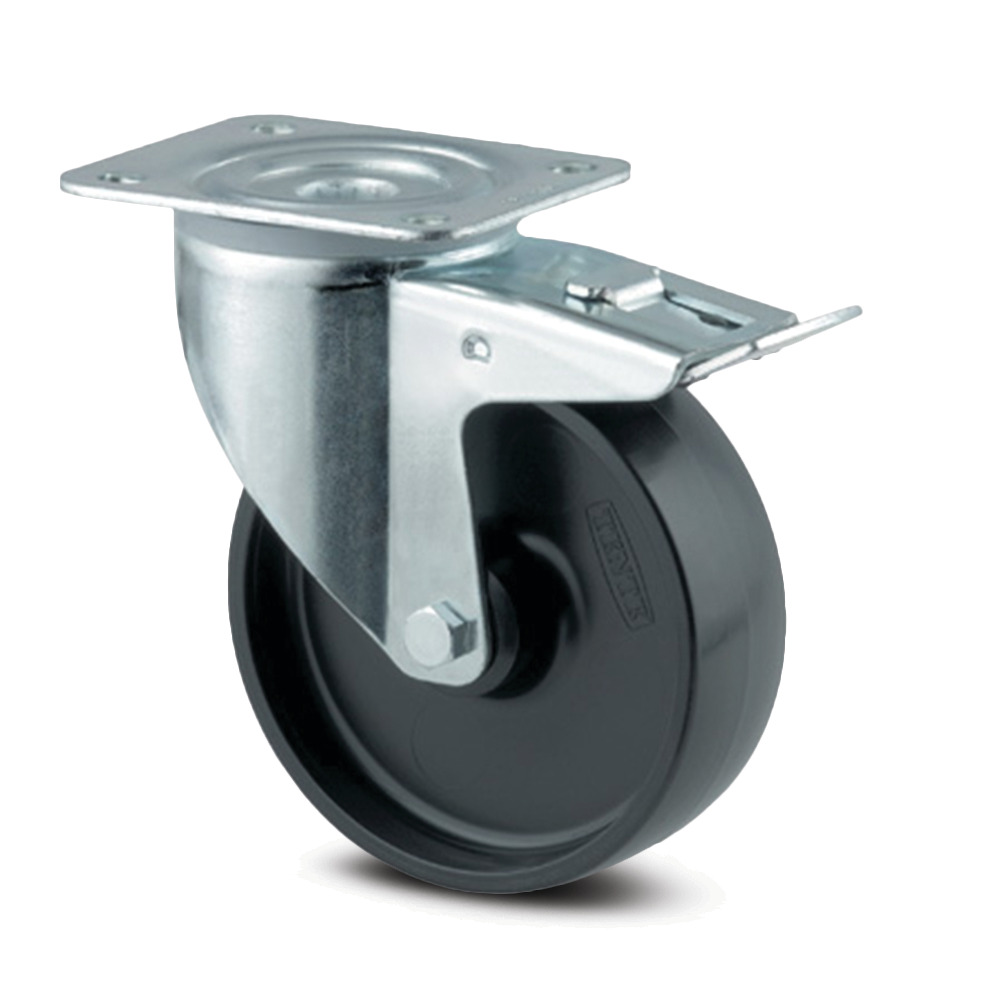

Swivel castor with total lock 3.94 in
