Swivel caster with wheel brake 1.97 in

Linea load
detail.eanLabel 4031582421620
Product number: 5945UAP050L51-8 load 9011
  • Non-hazardous materials
  • Tested quality
  • Colour matching
The Linea load is a swivel caster with wheel brake designed for demanding applications including AMR systems, computers on wheel... Details
Custom or high volume? Request a quote now.
You have saved products in your offer list Request now
The Linea load is a swivel caster with wheel brake designed for demanding applications including AMR systems, computers on wheels, dialysis carts, furniture, media furniture, office furniture, patient lifters, and office chairs. The caster features a blind hole for B10 fitting, enabling secure and straightforward installation on compatible equipment. The housing is constructed from polyamide and incorporates a precision ball bearing in the swivel mechanism, ensuring smooth rotation and reliable performance under continuous use. The wheel measures 1.97 inches in diameter and is equipped with a precision ball bearing for optimal rolling characteristics. The wheel tread is manufactured from injected polyurethane, providing excellent durability, floor protection, and consistent rolling resistance across various surfaces. The wheel body is constructed from polyamide, contributing to the overall strength and longevity of the assembly. The overall height of the caster is 1.97 inches, making it suitable for applications requiring compact wheel profiles. The static load capacity is rated at 440.92 pounds, while the dynamic load capacity reaches 220.46 pounds at a speed of 1.86 miles per hour, allowing for reliable performance in both stationary and mobile applications. This combination of materials, precision bearings, and robust construction makes the Linea load an ideal solution for healthcare, office, and industrial mobility applications.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Article Number
5945UAP050L51-8 load 9011
EAN
4031582421620

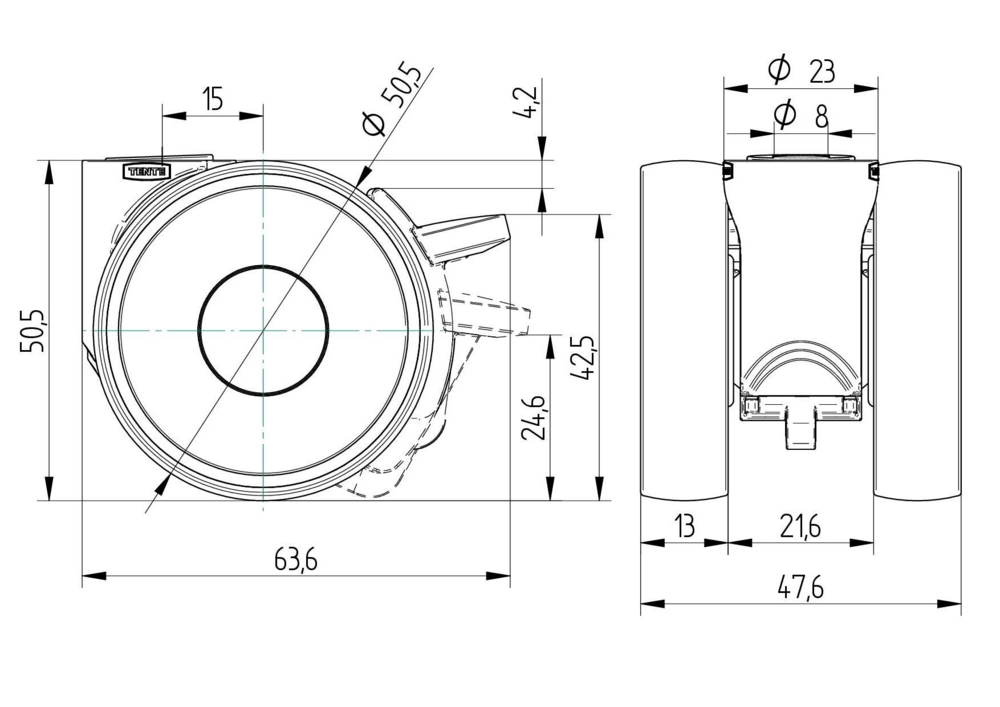

Core attributes
Type
Swivel caster with wheel brake
Overall width
1.87 in
Load capacity at 3 km/h
220.46 lb
Load capacity Static
440.92 lb
Overall Height
1.97 in
Temperature range (Maximum)
104 °F
Temperature range (Minimum)
14 °F
Overall weight
0.2 lb
Product name
Linea load
Standard
EN12530 - Devices Castors
Electric conductive
Stainless
Fitting
Fitting type

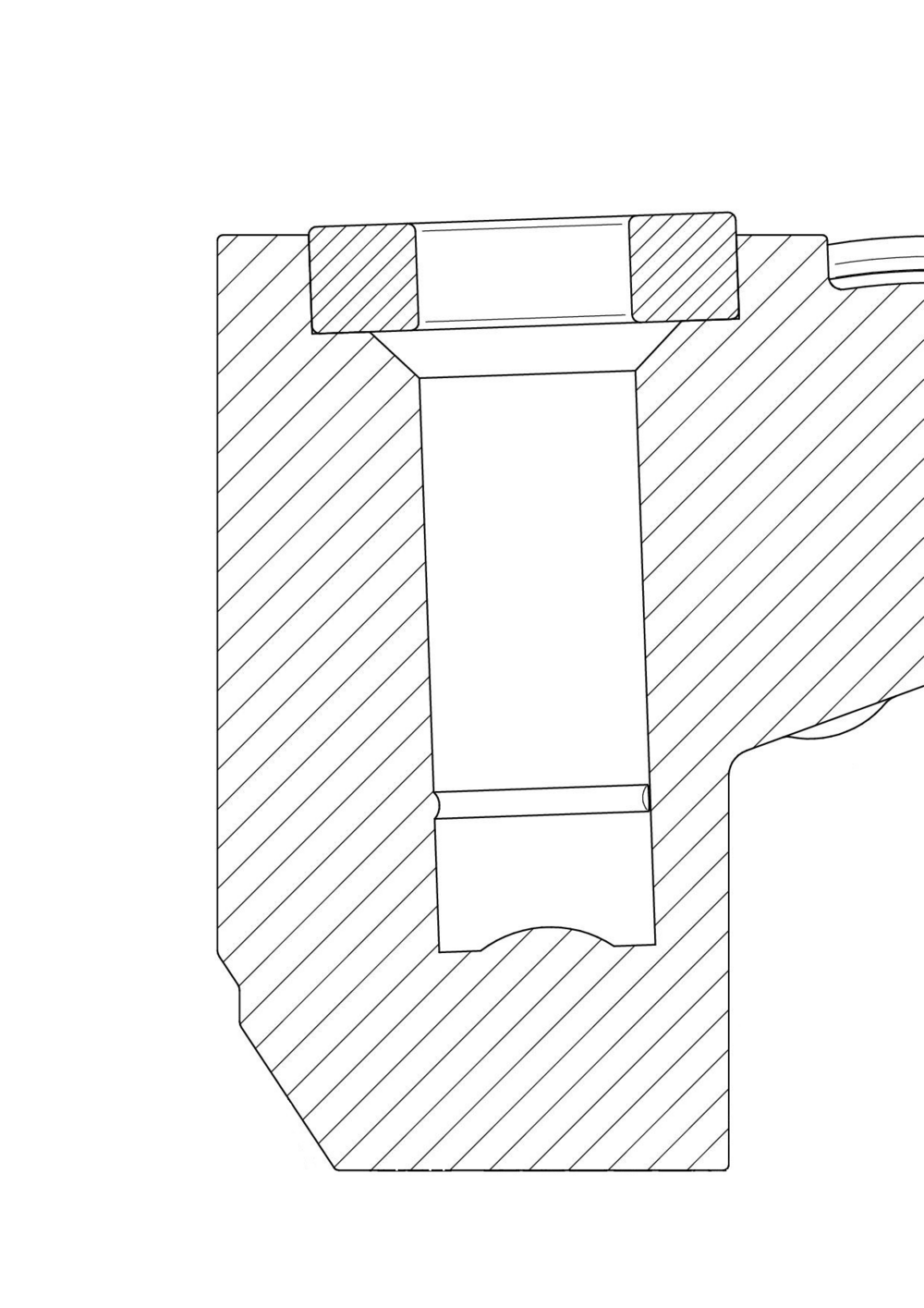

Blind hole for B10 fitting
Bolt hole diameter
0.31 in
Housing
Housing Color
Graphite black (RAL9011)
Fork shape
Twin wheel housing
Housing Material
Polyamide
Swivel bearing
Precision ball bearing
Dome diameter
0.91 in
Swivel interference
4.02 in
Swivel radius
2.01 in
Wheel
Härte der Lauffläche (A)
92 Shore A
Body material
Polyamide
Tread material
Polyurethane, injected
Tread width
0.51 in
Diameter
1.97 in
Threadguards
With threadguard
Bearing
Precision ball bearing

Deutscher Designer Club

Deutscher Designer Club

Interzum Award

Interzum Award

IF Design Award

IF Design Award

special-features-image
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic hydrocarbons or chromium (VI)
Tested quality
Tested in our own laboratory for compliance with European standards
Prevents unintended movement
Wheel lock for manual operation
Colour matching
Colors can be adapted to match the product design
Award-winning design
Awarded with prestigious prizes by international juries
User-friendly colour scheme
Green kickstop pedal for directional lock and red kickstop pedal for total lock
Reduced risk of accidents
Extremely low height to reduce risk of accidents under hospital beds
Robust housing
Twin wheel castor for high load capacity and low height
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort
Non-marking movement
Wheels with reduced abrasion and minimal cleaning requirements
Ergonomically friendly use
Wheels with optimised rolling resistance to reduce user effort
Optimised manoeuvrability
Twin wheel castor with high maneuverability due to differential effect
Individual branding
Engraved, cast, or printed
