Swivel castor 500 mm
Omikron twin
Order number:
990838625
EAN:
4031582428964
Product number:
9950STP500P68 Radbreite 100
- Non-hazardous materials
- Tested quality
- Strong construction
The Omikron twin swivel castor is a heavy-duty mobility solution engineered for demanding industrial applications including airp...
Details
Custom or high volume? Request a quote now.
Data sheets
Documents

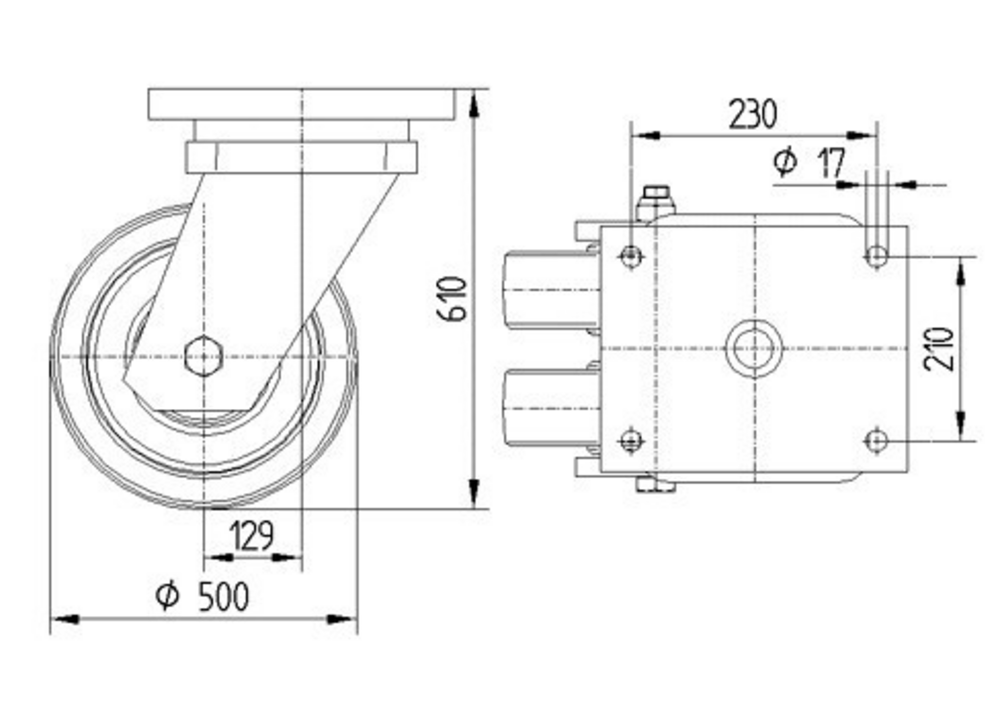

The Omikron twin swivel castor is a heavy-duty mobility solution engineered for demanding industrial applications including airport equipment and AGV systems. The castor is mounted via an extra large rectangular heavy-duty plate fitting, which provides robust attachment and distributes loads effectively across mounting surfaces. The housing is constructed from heavy forged iron, incorporating a deep-groove ball thrust roller bearing that enables smooth, reliable swivel rotation and accommodates multi-directional movement with minimal friction. The wheel assembly features a 500 mm diameter design with a sheet steel heavy body that provides structural integrity and durability under sustained operational stress. The wheel tread is manufactured from PUR casted premium material, delivering excellent wear resistance, grip characteristics, and longevity in demanding environments. Precision ball bearings are integrated within the wheel assembly to ensure smooth rotation and reduce maintenance requirements. The overall height of the castor is 610 mm, which must be considered during installation and integration into equipment systems. The dynamic load capacity is rated at 10,000 kg at 4 km/h and 10,000 kg at 3 km/h, providing flexibility for different operational speeds whilst maintaining full load support. This specification ensures the Omikron twin castor can reliably handle substantial payloads across varied industrial applications, making it an ideal choice for heavy-duty material handling and transport systems requiring dependable performance and extended service life.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Fitting
Housing
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Solid housing
Made of pressed steel, zinc plated.
Strong construction
Housing made of heavy steel for high load capacity.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Ergonomically friendly use
Wheels with optimised roll resistance to lighten the load for the user.
Quick maintenance
Swivel bearings lubricated with long-life grease and fitted with grease nipple for easy maintenance.
Extra heavy duty construction
Welded solid steel construction for highest load capacity.
Heavy duty construction
Extra heavy steel housing for high load capacity.
Optimised manoeuvrability
Twin wheel castor with high manoeuvrability due to differential effect.
Protect floors with load distribution
Two wheels distribute the load and minimise floor impressions.
