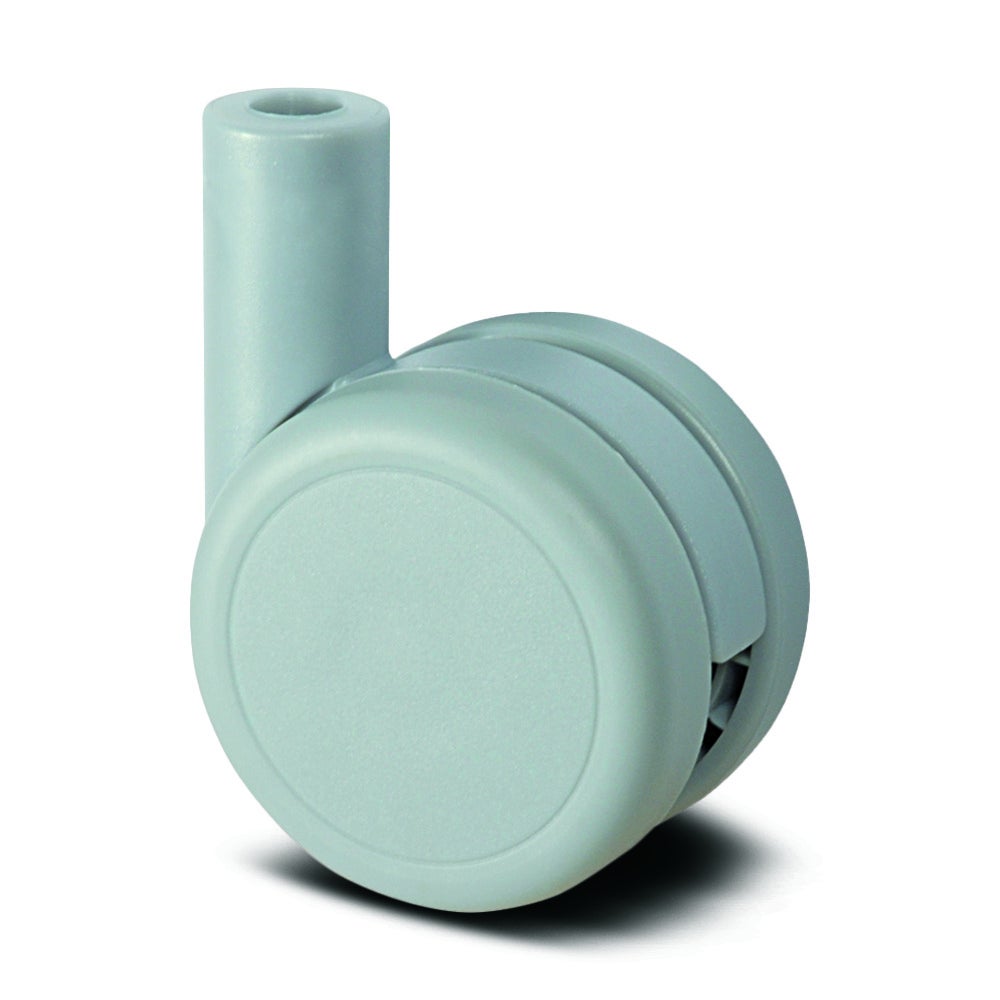

Swivel castor with wheel brake 65 mm
Stylea
EAN:
4031582335903
Produkta numurs:
5925UOI065L51-11 DOM23x43,6 ALU
- Non-hazardous materials
- Tested quality
- Colour matching
The Stylea is a swivel castor with wheel brake suited to bedside tables, furniture, media furniture and office furniture. Its fi...
Detaļas
Pielāgota vai liela apjoma pasūtījums? Pieprasiet cenu piedāvājumu tagad.
CAD faili
Jūs varat lejupielādēt šī produkta konstrukcijas datus.

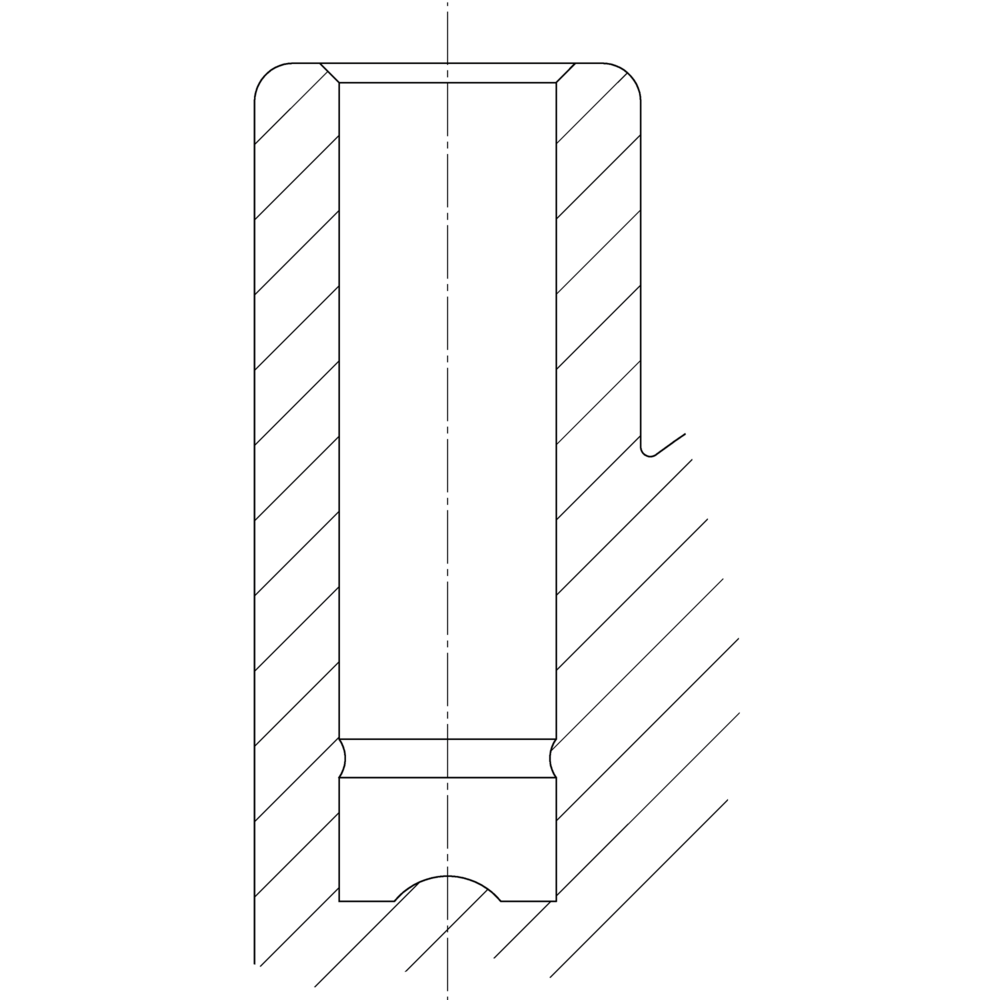

The Stylea is a swivel castor with wheel brake suited to bedside tables, furniture, media furniture and office furniture. Its fitting is a blind hole for B10, which allows the castor to be secured into the furniture body without any through-fixing. The housing has a swivelling stem bearing and is manufactured from polyamide, giving it a robust and low-maintenance construction. The wheel has a diameter of 65 mm and runs on a plain bearing fitted with a spacer tube, which reduces friction and keeps the wheel correctly positioned within the fork. The wheel body is also made from polyamide, and the tread is made from the same material as the wheel body. The overall height of the castor is 91.5 mm, which should be considered when planning the clearance beneath the furniture. The castor supports a static load capacity of 100 kg and a dynamic load capacity of 50 kg at a speed of 3 km/h.
Ruļļa veiktspēja
Kustības troksnis
Aizplūšana
Korozijas izturība
Preču numuri
Pamata atribūti
Uzstādīšana
Kronšteinis
Ritenis
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Prevents unintended movement
Wheel lock for manual operation
Colour matching
Colours can be adapted to match the product design
Painted surface
Gold, chrome or glossy coloured.
Visual integration
Different dome diameters for a perfect transition from the castor to the application.
Low wear and tear wheels
Durable wheels with extremely low wear and tear properties.
Chemical-resistant components
Insensitive to many cleaning agents and chemical substances.
Optimised manoeuvrability
Twin wheel castor with high manoeuvrability due to differential effect.
Reduced cleaning
Due to mainly smooth surfaces, the castors are quick and easy to clean.
