Swivel castor with directional lock 100 mm

Galea

EAN: 4031582354201

Produkta numurs: 5071YGP100P30-10

Non-hazardous materials
Tested quality
Colour matching

The Galea is a swivel castor with directional lock designed for industrial applications requiring precise manoeuvrability and se... Detaļas

Funkcijas

100 mm
139 mm
100.0000 kg

Ratas

Rattadiameeter

Korpuse värv

Korpus

Paigaldamine

Pielāgota vai liela apjoma pasūtījums? Pieprasiet cenu piedāvājumu tagad.

CAD faili

Datu lapas

ds_ARB005510_5071YGP100P30_10_en_GB.pdf

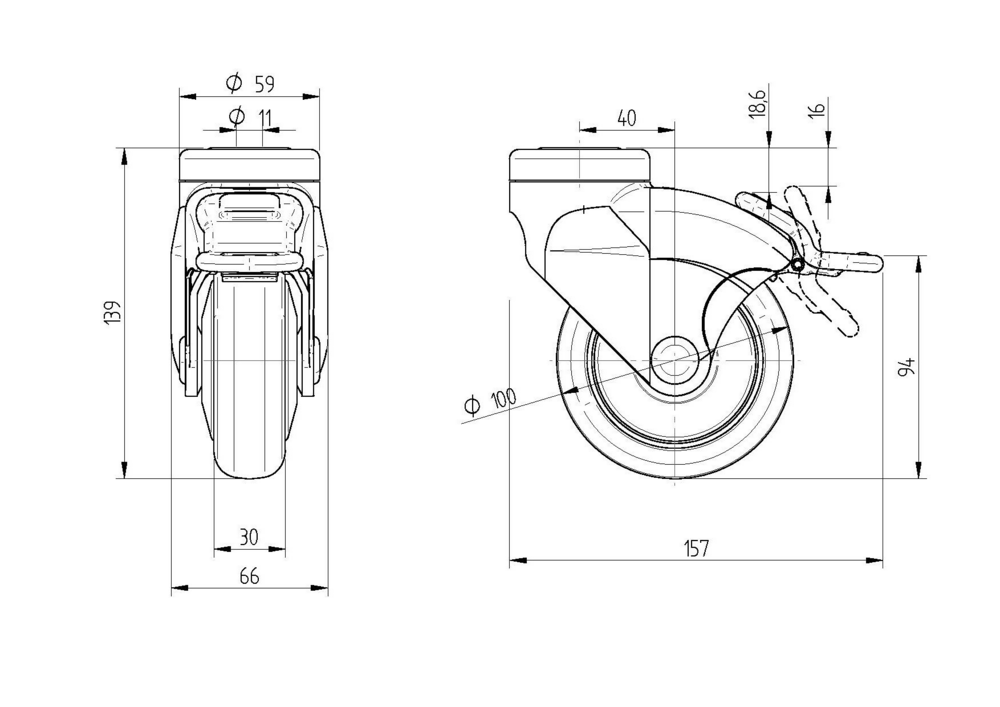

The Galea is a swivel castor with directional lock designed for industrial applications requiring precise manoeuvrability and secure positioning. The unit features a bolt hole fitting for straightforward mounting to equipment frames. The housing is manufactured from durable polyamide and incorporates two ball races in the swivel bearing assembly, ensuring smooth rotation and extended service life. The wheel comprises a polypropylene body with electric-conductive properties, fitted with a thermoplastic rubber tread that maintains electrical conductivity throughout the contact surface. The wheel operates on precision ball bearings and measures 100 mm in diameter. The castor has an overall height of 139 mm. Load specifications include a dynamic capacity of 100 kg at speeds up to 3 km/h and a static load rating of 200 kg, making it suitable for medium-duty mobile equipment applications.

Ruļļa veiktspēja

Kustības troksnis

Aizplūšana

Korozijas izturība

Artikulu numuri

Preces numurs

5071YGP100P30-10

EAN

4031582354201

Pamata atribūti

Korpusa tips

Swivel castor with directional lock

Kravnesība pie 3 km/h

100 kg

Statiskā kravnesība

200 kg

Kopējais augstums

139 mm

Temperatūras diapazons (maksimālais)

60 °C

Temperatūras diapazons (minimālais)

-20 °C

Produkta nosaukums

Galea

Standarta

EN12530 - Devices Castors

Elektrovadītspējīga

Nerūsējošais

Piekļaušana

Uzstādīšanas veids

Bolt hole

Skrūves atveres diametrs

10 mm

Korpuss

Dakšas forma

Closed

Materiāls

Polyamide

Grozāmais gultnis

Two ball races

Grozāms savienojums

205 mm

Ofsets

40 mm

Ritenis

Protektora cietība (A)

87 Shore A

Korpusa materiāls

Polypropylene, electric conductive

Protektora materiāls

Thermoplastic rubber, electric-conductive

Protektora platums

30 mm

Diametrs

100 mm

Izplešanās armatūra

With threadguard

Gūltnis

Precision ball bearing

Special Features

TENTE's OMIKRON castors are engineered for exceptional performance under extreme conditions. Featuring a solid welded steel construction, these castors can transport the heaviest loads with high steering stability and excellent maneuverability.

Non-hazardous materials

Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).

Tested quality

Tested in our own laboratory for compliance with European standards.

Colour matching

Colours can be adapted to match the product design

User-friendly colour scheme

Green kickstop pedal for directional lock and red kickstop pedal for total lock.

Painted surface

Gold, chrome or glossy coloured.

Low-maintenance wheels

Thread guards for unobstructed operation with minimal cleaning effort.

Non-marking movement

Wheels with reduced abrasion and little cleaning requirement.

Easy steering

Double ball bearing swivel head.

Certified conductivity

Conductive version to protect users and electrical devices from electrostatic discharge.

Chemical-resistant components

Insensitive to many cleaning agents and chemical substances.

Conforming to standards

Applicable in the food industry (Lerpac-Approval).
