Swivel castor 25 mm
Compacta
Pasūtījuma numurs:
990032081
EAN:
4031582336658
Produkta numurs:
1430POI025P60-35x30
- Non-hazardous materials
- Tested quality
- Solid housing
The Compacta swivel castor features a rectangular plate fitting for secure mounting to various surfaces. The housing is construc...
Detaļas
Pielāgota vai liela apjoma pasūtījums? Pieprasiet cenu piedāvājumu tagad.
Datu lapas

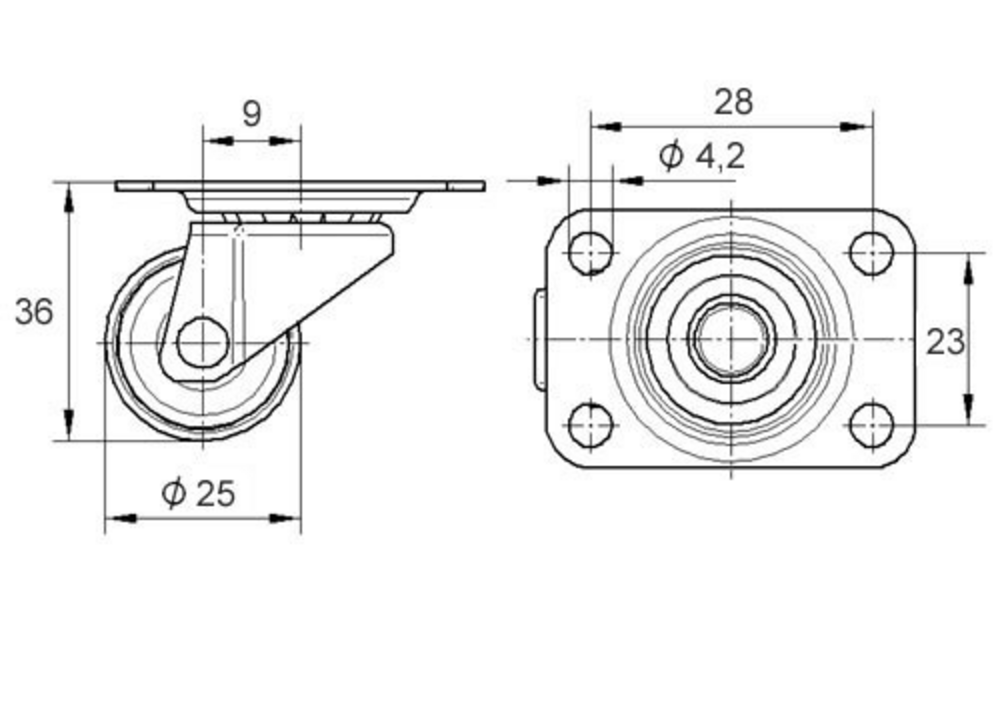

The Compacta swivel castor features a rectangular plate fitting for secure mounting to various surfaces. The housing is constructed from light steel sheet and incorporates a one ball race swivel bearing mechanism for smooth directional movement. The wheel comprises a polypropylene body with an identical polypropylene tread material, providing durability and consistent performance, whilst utilising a plain bearing with spacer tube for reliable rotation. The wheel measures 25mm in diameter, contributing to an overall height of 36mm for the complete assembly. Load specifications include a dynamic capacity of 10kg at speeds up to 3km/h and a static load capacity of 20kg, making this castor suitable for applications including tool cabinets, work benches, and transport equipment where compact dimensions and moderate load handling are required.
Ruļļa veiktspēja
Kustības troksnis
Aizplūšana
Korozijas izturība
Artikulu numuri
Pamata atribūti
Piekļaušana
Korpuss
Ritenis
Special Features
TENTE's OMIKRON castors are engineered for exceptional performance under extreme conditions. Featuring a solid welded steel construction, these castors can transport the heaviest loads with high steering stability and excellent maneuverability.
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Solid housing
Made of pressed steel, zinc plated.
Low wear and tear wheels
Durable wheels with extremely low wear and tear properties.
