Stretcher Castors
integral
The Integral is a swivel castor with central, total lock, designed for healthcare mobility applications. The fitting is a stem with a cam hole for profile bars, providing a secure connection to the frame. The housing incorporates a precision ball bearing swivel bearing and is constructed from medium steel sheet. The wheel has a diameter of 150 mm and incorporates a precision ball bearing, with an injected polyurethane tread and a polyamide body. The overall height is 183 mm. The static load capacity is 450 kg, while the dynamic load capacity is 150 kg at 4 km/h and 150 kg at 3 km/h. Applications include Anesthesia Carts, C-Arms, CT Scanners, MRI, X-Ray, Care Beds, Dialysis Carts, Hospital Beds, Hospitals, Nursing and Retirement Homes, Stretcher and Ultrasound.
integral
The Integral swivel castor features a solid stem, round fitting for secure mounting applications. The housing is constructed from steel sheet, medium grade material and incorporates a precision ball bearing swivel bearing system for smooth directional changes. The wheel consists of a polyamide body with injected polyurethane tread material, mounted on precision ball bearing for optimal rolling performance. The wheel diameter measures 125 mm with an overall height of 158 mm. Load capacity specifications include dynamic loads of 150 kg at speeds of 3 km/h and 150 kg at 4 km/h, whilst the static load capacity reaches 450 kg. This castor is specifically designed for demanding medical applications including anaesthesia carts, C-arms, CT scanners, MRI, X-ray equipment, care beds, dialysis carts, hospital beds, hospitals, nursing and retirement homes, stretchers, and ultrasound equipment.
integral
The Integral swivel castor features a solid stem, round fitting for secure mounting applications. The housing is constructed from steel sheet, medium grade material and incorporates a precision ball bearing swivel bearing system for smooth directional changes. The wheel comprises a polyamide body with injected polyurethane tread material, mounted on precision ball bearing for optimal rolling performance. With a wheel diameter of 150 mm, the castor has an overall height of 183 mm. Load capacity specifications include dynamic loads of 150 kg at speeds of 3 km/h and 150 kg at 4 km/h, whilst the static load capacity reaches 450 kg. This castor is specifically designed for demanding medical applications including anaesthesia carts, C-arms, CT scanners, MRI, X-ray equipment, care beds, dialysis carts, hospital beds, hospitals, nursing and retirement homes, stretchers, and ultrasound equipment.
integral
The Integral is a swivel castor with central, total or directional lock, designed for demanding healthcare mobility applications such as hospital beds, stretchers, dialysis carts, anaesthesia carts, care beds and ultrasound or C-arm equipment. The fitting is a stem with cam hole for profile bars, short version, which allows secure attachment to the equipment frame and reliable positioning within the chassis. The housing is manufactured from steel sheet, medium, and incorporates a precision ball bearing that enables smooth, controlled swivel movement. The wheel has a diameter of 150 mm and runs on a precision ball bearing, with a polyurethane tread, injected, and a polyamide body. The overall height of the castor is 183 mm. The static load capacity is 450 kg, while the dynamic load capacity is 150 kg at a speed of 4 km/h and 150 kg at a speed of 3 km/h.
integral
The Integral is a swivel castor with central, total lock, designed for healthcare and institutional use. The fitting is a stem with cam hole for profile bars, short version, which provides secure attachment to the equipment frame. The housing incorporates a precision ball bearing for the swivel action and is manufactured from steel sheet, medium. The wheel has a diameter of 150 mm and runs on a precision ball bearing, with a tread of polyurethane, injected, and a body of polyamide. The overall height of the castor is 183 mm. The static load capacity is 450 kg, while the dynamic load capacity is 150 kg at a speed of 4 km/h and 150 kg at a speed of 3 km/h. Typical applications include anaesthesia carts, C-arms, CT scanners, MRI, X-ray, care beds, dialysis carts, hospital beds, stretchers and ultrasound equipment.
integral
The Integral swivel castor with central, total lock features a stem with cam hole for profile bars fitting, with washable beds requiring sealing in the fitting area by the hospital bed manufacturer. The housing is constructed from medium steel sheet and incorporates a precision ball bearing swivel bearing for smooth operation. The wheel comprises a polyamide body with injected polyurethane tread material, supported by sealed precision ball bearings, and measures 150 mm in diameter. The castor has an overall height of 183 mm and delivers exceptional load performance with a dynamic load capacity of 150 kg at speeds up to 4 km/h and a static load capacity of 450 kg. This robust castor is specifically designed for demanding medical applications including anaesthesia carts, C-arms, CT scanners, MRI, X-ray equipment, care beds, dialysis carts, hospital beds, stretchers, and ultrasound equipment across hospitals and nursing facilities.
integral
The Integral is a swivel castor with central, total or directional lock, intended for use in hospitals, nursing and retirement homes. Its fitting is a stem with cam hole for profile bars, enabling secure and precise attachment to the equipment frame. The housing incorporates a precision ball bearing swivel bearing and is manufactured from steel sheet, medium. The wheel has a diameter of 125 mm and runs on a precision ball bearing, with a polyamide body and an injected polyurethane tread. The overall height of the castor is 158 mm. The static load capacity is 450 kg, while the dynamic load capacity is 150 kg at a speed of 4 km/h and 150 kg at a speed of 3 km/h. Applications include Anesthesia Carts, C-Arms, CT Scanners, MRI, X-Ray, Care Beds, Dialysis Carts, Hospital Beds, Hospitals, Nursing and Retirement Homes, Stretcher and Ultrasound.
integral
The Integral is a swivel castor with central, total or directional lock, designed for demanding healthcare environments. The fitting is a stem with cam hole for profile bars, short version, which enables secure attachment to the equipment frame. The housing incorporates a precision ball bearing for smooth swivelling and is manufactured from medium steel sheet. The wheel has a diameter of 125 mm, runs on a precision ball bearing, and has a tread of polyurethane, injected, with a polyamide body. The overall height is 158 mm. The static load capacity is 450 kg, and the dynamic load capacity is 150 kg at 4 km/h and 150 kg at 3 km/h. Typical applications include Anesthesia Carts, C-Arms, CT Scanners, MRI, X-Ray, Care Beds, Dialysis Carts, Hospital Beds, Hospitals, Nursing and Retirement Homes, Stretcher and Ultrasound.
integral
The Integral is a swivel castor with central, total lock, designed for demanding healthcare environments. The fitting is a stem with cam hole for profile bars, short version, which allows secure attachment to the frame of the equipment. The housing is manufactured from medium steel sheet and incorporates a precision ball bearing in the swivel assembly, ensuring smooth rotation and reliable directional control. The wheel has a diameter of 125 mm and runs on a precision ball bearing, which ensures low rolling resistance. Its tread is made of injected polyurethane, while the body is constructed from polyamide. The overall height of the castor is 158 mm. The castor offers a static load capacity of 450 kg. Under dynamic conditions, each castor supports a load of 150 kg at a speed of 4 km/h and 150 kg at a speed of 3 km/h.
integral
The Integral is a swivel castor with central, total or directional lock, designed for demanding healthcare environments. The fitting is a stem with cam hole for profile bars, which enables secure attachment to frames and equipment. The housing incorporates a precision ball bearing for the swivel action and is manufactured from medium steel sheet. The wheel has a diameter of 150 mm and runs on a precision ball bearing, with an injected polyurethane tread on a polyamide body. The overall height of the castor is 183 mm. The static load capacity is 450 kg, while the dynamic load capacity is 150 kg at a speed of 4 km/h and 150 kg at a speed of 3 km/h. Typical applications include Anesthesia Carts, C-Arms, CT Scanners, MRI, X-Ray, Care Beds, Dialysis Carts, Hospital Beds, Hospitals, Nursing and Retirement Homes, Stretcher and Ultrasound.

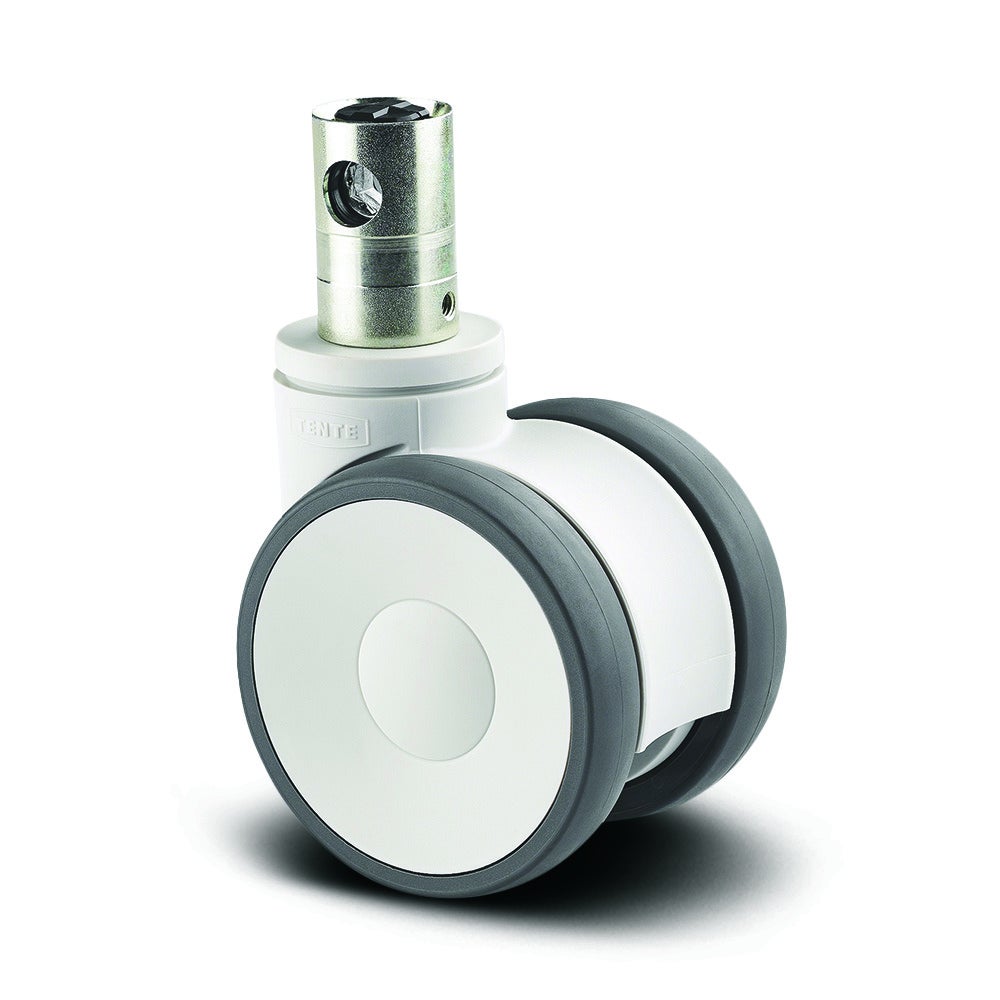

linea_clinic
The Linea clinic is a swivel castor with central, total lock, designed for demanding mobile equipment in healthcare and care environments. Its fitting is a stem with cam hole for profile bars, short version, which allows secure attachment to the frame or chassis of the equipment. The housing features a precision ball bearing swivel bearing for smooth, low-effort rotation and is manufactured from polyamide, providing a robust and durable structure. The wheel has a diameter of 100 mm and is equipped with a precision ball bearing for reliable rolling performance, with an injected polyurethane tread for low noise and good floor contact, mounted on a polyamide body. The overall height of the castor is 118 mm, which makes it suitable for installations where a compact construction is required. The static load capacity is 240 kg, while the dynamic load capacity is 120 kg at a speed of 3 km/h. The castor is intended for use with anesthesia carts, C-arms, CT scanners, MRI, X-ray systems, computers on wheels, dialysis carts, hospital beds, hospital equipment, medication carts, nursing and retirement home equipment, nursing carts, stretchers, ultrasound units and ventilators.
linea_clinic
The Linea clinic is a swivel castor with central, total lock, designed for demanding healthcare environments and suited to applications such as anaesthesia carts, C-arms, CT scanners, MRI and X-ray equipment, computers on wheels, dialysis carts, hospital beds, medication carts, nursing carts, stretchers, ultrasound units and ventilators. The fitting is a stem with a cam hole for profile bars, short version, which allows secure attachment to the frame of the equipment. Washable beds must be sealed in the fitting area by the hospital bed manufacturer. The housing is manufactured from polyamide and incorporates a precision ball bearing for the swivel action. The wheel has a diameter of 125 mm and uses a precision ball bearing, stainless, for smooth rotation, while the tread is made from injected polyurethane and the wheel body from polyamide. The overall height of the castor is 130 mm. The castor has a static load capacity of 450 kg. Under dynamic conditions, each wheel supports a load of 150 kg at a speed of 4 km/h and 150 kg at a speed of 3 km/h.
linea_clinic
The Linea clinic is a swivel castor with central, total lock, suited to healthcare use. The fitting is a stem with cam hole for profile bars, short version, and washable beds must be sealed in the fitting area by the hospital bed manufacturer. The housing is made of polyamide and incorporates a precision ball bearing as its swivel bearing. The wheel has a diameter of 150 mm and runs on a precision ball bearing, stainless, with an injected polyurethane tread and a polyamide body. The overall height is 175 mm. The static load capacity is 450 kg, while the dynamic load capacity is 150 kg at 4 km/h and 150 kg at 3 km/h. Applications include Anesthesia Carts, C-Arms, CT Scanners, MRI, X-Ray, Computers on Wheels, Dialysis Carts, Hospital Beds, Hospitals, Medication Carts, Nursing and Retirement Homes, Nursing Carts, Stretcher, Ultrasound and Ventilators.
linea_clinic
The Linea clinic is a swivel castor with central, total lock. Its fitting is a stem with cam hole for profile bars, short version, and washable beds must be sealed in the fitting area by the hospital bed manufacturer. The housing is manufactured from polyamide and incorporates a swivel bearing in the form of a precision ball bearing. The wheel has a diameter of 150 mm and is fitted with a precision ball bearing, stainless, while its tread is made from polyurethane, injected, and its body from polyamide. The overall height of the castor is 155 mm. The static load capacity is 300 kg, while the dynamic load capacity is 150 kg at 4 km/h and 150 kg at 3 km/h. Suitable for Anesthesia Carts, C-Arms, CT Scanners, MRI, X-Ray, Dialysis Carts, Hospital Beds, Medication Carts, Nursing Carts, Stretcher, Ultrasound and Ventilators.
linea_clinic
The Linea clinic is a Swivel castor with central, total lock, engineered for demanding clinical use. The fitting is a Stem with cam hole for profile bars, short version, and washable beds must be sealed in the fitting area by the hospital bed manufacturer. The housing is manufactured from Polyamide and incorporates a Precision ball bearing for the swivel action, allowing smooth rotation under load. The wheel has a diameter of 125 mm and features a Precision ball bearing, stainless, with a Polyurethane, injected tread and a Polyamide body. The overall height of the castor is 130 mm, which should be considered when integrating it into bed frames and equipment chassis. The static load capacity is 300 kg, while the dynamic load capacity is 150 kg at a speed of 4 km/h and 150 kg at a speed of 3 km/h, indicating performance under rolling conditions.
Swivel castor with central, total lock 125 mm
The Linea clinic is a swivel castor with central, total lock, suited to anaesthesia carts, C-arms, CT scanners, MRI and X-ray equipment, computers on wheels, dialysis carts, hospital beds, medication carts, nursing carts, stretchers, ultrasound units and ventilators. The fitting is a stem with cam hole for profile bars, short version, and washable beds must be sealed in the fitting area by the hospital bed manufacturer. The housing, made of polyamide, incorporates a precision ball bearing for swivel action. The wheel has a diameter of 125 mm and features a stainless precision ball bearing, an injected polyurethane tread and a polyamide body. The overall height is 150 mm. The static load capacity is 300 kg, while the dynamic load capacity is 150 kg at 4 km/h and 150 kg at 3 km/h.
linea_clinic
The Linea clinic is a swivel castor with central, total lock, intended for hospital and nursing environments. The fitting is a stem with cam hole for profile bars, short version, and washable beds must be sealed in the fitting area by the hospital bed manufacturer. The housing is manufactured from polyamide and incorporates an integrated cable catcher made of polyethylene, while the swivel movement is supported by a precision ball bearing. The wheel has a diameter of 125 mm and features a precision ball bearing, stainless, with an injected polyurethane tread and a polyamide body. The overall height of the castor is 130 mm. The static load capacity is 300 kg, and the dynamic load capacity is 150 kg at a speed of 4 km/h and 150 kg at a speed of 3 km/h, with each rating applying at its stated speed.
linea_clinic
The Linea clinic is a swivel castor with central, total lock designed for demanding healthcare environments. The fitting is a stem with cam hole for profile bars, short version, which must be sealed in the fitting area by the hospital bed manufacturer when washable beds are used. The housing is manufactured from polyamide and features an integrated cable catcher made of polyethylene, with the swivel movement supported by a precision ball bearing. The wheel has a diameter of 150 mm and incorporates a stainless precision ball bearing, while the polyurethane tread is injected and the wheel body is made of polyamide. The overall height of the castor is 155 mm. The static load capacity is 300 kg. Under dynamic conditions, the castor supports a load of 150 kg at a speed of 4 km/h and a load of 150 kg at a speed of 3 km/h.
linea_clinic
The Linea clinic is a swivel castor with central, total lock, engineered for precise and reliable mobility in healthcare environments. The fitting is a stem with cam hole for profile bars, short version; washable beds must be sealed in the fitting area by the hospital bed manufacturer. The housing is manufactured from polyamide and incorporates a precision ball bearing swivel bearing that ensures smooth rotation under load. The wheel has a diameter of 125 mm and is fitted with a stainless precision ball bearing, with a polyamide body and an injected polyurethane tread. The overall height of the castor is 130 mm. The static load capacity is 300 kg, while the dynamic load capacity is 150 kg at a speed of 4 km/h and 150 kg at a speed of 3 km/h, making the castor suitable for demanding clinical applications.
linea_clinic
The Linea clinic is a swivel castor with central, total lock. The fitting is a stem with cam hole for profile bars, short version, and washable beds must be sealed in the fitting area by the hospital bed manufacturer. The housing is made of polyamide and incorporates a precision ball bearing for the swivel action. The wheel has a diameter of 125 mm and runs on a stainless precision ball bearing, with a body of polyamide and an injected polyurethane tread. The overall height of the castor is 130 mm. The static load capacity is 300 kg, while the dynamic load capacity is 150 kg at 4 km/h and 150 kg at 3 km/h. Suitable applications include Anesthesia Carts, C-Arms, CT Scanners, MRI, X-Ray, Computers on Wheels, Dialysis Carts, Hospital Beds, Hospitals, Medication Carts, Nursing and Retirement Homes, Nursing Carts, Stretcher, Ultrasound and Ventilators.
Swivel castor with central, total lock 125 mm
The Linea clinic is a swivel castor with central, total lock, engineered for demanding healthcare environments where reliable mobility and secure positioning are essential. The fitting is a stem with cam hole for profile bars, short version, and washable beds must be sealed in the fitting area by the hospital bed manufacturer. The housing is manufactured from polyamide and incorporates a precision ball bearing swivel bearing. The wheel has a diameter of 125 mm and features a precision ball bearing, stainless, with an injected polyurethane tread and a polyamide body. The overall height of the castor is 150 mm, a dimension to consider when integrating it into beds and carts. The static load capacity is 300 kg, while the dynamic load capacity is 150 kg at 4 km/h and 150 kg at 3 km/h, and these limits must be respected in operation.
linea_clinic
The Linea clinic is a swivel castor with central, total lock, designed for demanding healthcare environments. The fitting is a stem with cam hole for profile bars, short version, and washable beds must be sealed in the fitting area by the hospital bed manufacturer. The housing is made of polyamide and incorporates a precision ball bearing for smooth swivelling. The wheel has a diameter of 150 mm and combines a stainless precision ball bearing with a polyamide body and an injected polyurethane tread. The overall height is 155 mm. The static load capacity is 300 kg, and the dynamic load capacity is 150 kg at a speed of 4 km/h and 150 kg at 3 km/h. Applications include Anesthesia Carts, C-Arms, CT Scanners, MRI, Hospital Beds and Ventilators.
Swivel castor with central, total lock 150 mm
The Linea clinic is a swivel castor with central, total lock, designed for demanding healthcare environments. The fitting is a stem with cam hole for profile bars, short version, and washable beds must be sealed in the fitting area by the hospital bed manufacturer. The housing, made of polyamide, incorporates a precision ball bearing for the swivel action. The wheel has a diameter of 150 mm and runs on a precision ball bearing, stainless, with an injected polyurethane tread on a polyamide body. The overall height is 155 mm. The static load capacity is 300 kg, and the dynamic load capacity is 150 kg at 4 km/h and 150 kg at 3 km/h. Suitable applications include Anesthesia Carts, C-Arms, CT Scanners, MRI, X-Ray, Computers on Wheels, Dialysis Carts, Hospital Beds, Hospitals, Medication Carts, Nursing and Retirement Homes, Nursing Carts, Stretcher, Ultrasound and Ventilators.
Frequently Asked Questions
Requirements for Stretcher Castors
Patient transport places demanding requirements on equipment moving between wards, treatment rooms and emergency departments. Stretcher castors must support controlled movement under the combined weight of the stretcher, patient and attached equipment, while allowing staff to negotiate confined spaces. Frequent starts, turns and stops require predictable handling without unnecessary physical effort for caregivers. Stable positioning during patient transfers is equally important, alongside quiet movement that limits disturbance to patients and others nearby. Castors for medical stretchers also need to suit hospital floors and cleaning routines, balancing everyday mobility with hygiene requirements and resistance to repeated use.
Benefits of TENTE Stretcher Castors
Well-matched mobility solutions help caregivers concentrate on the patient throughout each journey. Our stretcher castors can support easier handling and precise positioning, helping staff manage repeated movements through busy clinical environments. Selecting a configuration suited to the load and transport route can reduce unnecessary effort while maintaining control when approaching doorways, turning corners or positioning the stretcher beside other equipment. Quiet movement can also improve the patient experience and limit disruption around wards and treatment spaces. Together, appropriate running characteristics and dependable locking support a smoother transition between transport, patient transfer and stationary care.
Important Functions of Stretcher Castors
Effective mobility depends on coordinating movement and locking with the way a stretcher is operated. Swivel movement allows stretcher castors to change direction during manoeuvring, while directional locking restricts swivelling to guide straight travel. Total locking secures both wheel rotation and swivel movement when the stretcher needs to remain stationary. Wheel and bearing selection influences rolling resistance and running behaviour, so these should match the intended load, floor conditions and frequency of transport. The chosen locking arrangement must also work with the stretcher’s controls, allowing staff to switch between movement and secure positioning as required.
Stretcher Castor Solutions from TENTE
Our featured stretcher castors are Integral and Integral assist, offering single-wheel mobility and electrically assisted movement for medical patient transport.
Integral
Integral combines a lightweight single-wheel design with resistance to shock loads for demanding medical use. The version with a 200 mm wheel diameter is particularly suitable for stretchers, supporting quick manoeuvring where responsive handling matters.
The series offers directional locking, total locking and free movement, with quiet, easy actuation. Soft wheel options support smooth, low-noise running, while the enclosed design and sealed wheel bearings help protect against dirt and splashwater.
Integral is available with wheel diameters from 100 to 200 mm and load capacities from 100 to 150 kg, depending on the version. Permanently washable and electrically conductive options allow the specification to be matched to the application’s cleaning and electrostatic discharge requirements.
Integral assist
Integral assist provides electrically powered support during patient transport, helping reduce the physical effort required to start and move a loaded stretcher. Its integrated drive supports manoeuvring and straight travel, making it relevant to repeated transport tasks.
The castor forms part of our WeAssist system and is also available separately for integration into other compatible systems. Installation and calibration must suit the equipment, and it must be combined with Integral castors or other castor types approved by the manufacturer.
Integral assist has a 150 mm wheel diameter, with load capacities from 100 to 150 kg depending on the version. It is intended for indoor operation on level, dry floors, so the transport route and operating conditions need to be considered when specifying the system.
