Office Furniture
Office Furniture Castors
Swivel castor 75 mm
The Stylea swivel castor features a threaded stem with hexagon neck, top fitting for secure mounting applications. The housing is constructed from durable polyamide material and incorporates a stem swivelling bearing system that enables smooth directional changes under load. The wheel assembly comprises a polyamide body with matching polyamide tread material, providing consistent performance characteristics throughout. The wheel operates on a plain bearing with spacer tube configuration and measures 75 mm in diameter. The complete castor unit has an overall height of 88 mm. Load specifications include a dynamic capacity of 50 kg at speeds up to 3 km/h and a static load rating of 100 kg, making it suitable for medium-duty mobile equipment and furniture applications requiring reliable manoeuvrability.
Swivel castor with wheel brake 75 mm
The Stylea is a swivel castor with wheel brake, designed for use in bedside tables, furniture, media furniture and office furniture. The fitting is a threaded stem with hexagon neck, top, which provides a secure mounting point for attachment to the furniture. The housing incorporates a stem, swiveling bearing that allows the castor to rotate about its vertical axis, and it is manufactured from polyamide. The wheel has a diameter of 75 mm and runs on a plain bearing with spacer tube, which maintains the correct spacing between the wheel and its mounting. Its tread material is identical with the wheel body, which is also made from polyamide. The overall height of the complete castor is 88 mm, a dimension that should be checked against the clearance available in the furniture design. The static load capacity is 100 kg, while the dynamic load capacity is 50 kg at a speed of 3 km/h, so the castor should be selected with these limits in mind for each specific application.
Swivel castor 75 mm
The Stylea swivel castor has a square plate fitting and a housing made of polyamide. It features a swiveling swivel bearing with a polyamide wheel body and a polyurethane tread that is injected. The wheel uses a precision ball bearing and has a diameter of 75 mm. The overall height of the castor is 75 mm. It has a load capacity of 80 kg at 3 km/h and a static load capacity of 160 kg. The stem allows the wheel to swivel smoothly in all directions across the square base plate. The durable polyamide and precision bearing provide reliable performance with heavy loads at low speeds. The injected polyurethane tread gives good grip and resilience.
Swivel castor with wheel brake 75 mm
Stylea is a swivel castor with wheel brake designed for furniture applications including bedside tables, furniture, media furniture and office furniture. The fitting is a square plate, which provides the mounting interface for attaching the castor to the furniture base. The housing is manufactured from polyamide and incorporates a stem-type swivel bearing, which allows the castor to rotate freely through 360 degrees for smooth manoeuvrability. The wheel has a diameter of 75 mm and is equipped with a precision ball bearing to ensure low rolling resistance and reliable performance. The tread is made from injected polyurethane, offering good wear resistance and quiet running on floor surfaces. The wheel body is constructed from polyamide, matching the housing material for consistent durability. The overall height of the castor is 75 mm, making it suitable for installations where a compact profile is required. The static load capacity is 160 kg, while the dynamic load capacity is 80 kg at a travel speed of 3 km/h.
linea
The Linea swivel castor is a precision engineered component designed for applications including bedside tables, furniture, media furniture, and office furniture. The castor features a threaded stem with hexagon neck, top fitting, which provides secure and reliable attachment to the host structure. The housing is constructed from polyamide material and incorporates a stem, swiveling design that enables smooth rotational movement and directional control. The wheel assembly comprises a 75 mm diameter wheel with a polyamide body and polyurethane injected tread material, supported by a precision ball bearing that ensures smooth operation and extended service life. The overall height of the castor is 75 mm, providing a compact profile suitable for various furniture applications. The load capacity specifications indicate a static load capacity of 160 kg, whilst the dynamic load capacity is rated at 80 kg when operating at speeds up to 3 km/h. These specifications make the Linea swivel castor suitable for mobile furniture applications requiring reliable performance and durability in both static and dynamic loading conditions.
linea
The Linea is a swivel castor with wheel brake for bedside tables, furniture, media furniture and office furniture. Its fitting is a threaded stem with a hexagon neck at the top, which enables secure, fixed attachment to the supported item. The housing has a swivelling stem and is made of polyamide, and the swivel action allows the castor to change direction easily during movement. The wheel, 75 mm in diameter, runs on a precision ball bearing and has an injected polyurethane tread on a polyamide body, with the brake locking the wheel in position. The overall height is 82 mm, so clearance beneath the item should be considered during installation. The static load capacity is 160 kg, and the dynamic load capacity is 80 kg at a speed of 3 km/h. Loads in motion should remain within the dynamic capacity to ensure safe operation.
Swivel castor 55 mm
The Stylea swivel castor features a blind hole for B10 fitting system for secure mounting applications. The housing is constructed from durable polyamide material and incorporates a stem, swivelling bearing mechanism that ensures smooth directional changes under load. The 55mm diameter wheel combines a polyamide body with tread material identical to the wheel body construction, supported by a plain bearing with spacer tube for reliable rotation performance. With an overall height of 57mm, this castor delivers a dynamic load capacity of 40kg at speeds up to 3km/h and a static load capacity of 80kg. The design makes it particularly suitable for bedside tables, furniture, media furniture, office chairs, and office furniture applications where mobility and load-bearing performance are essential requirements.
Swivel castor 55 mm
The Stylea swivel castor features a blind hole for B10 fitting system for secure mounting applications. The housing is constructed from durable polyamide material and incorporates a stem, swivelling bearing mechanism that ensures smooth rotational movement. The wheel assembly consists of a 55mm diameter wheel with a polyamide body and identical polyamide tread material, supported by a plain bearing with spacer tube for reliable operation. The castor has an overall height of 57mm, making it suitable for compact installations. Load specifications include a dynamic capacity of 40kg at speeds up to 3km/h and a static load capacity of 80kg. This versatile castor is specifically designed for bedside tables, furniture, media furniture, office chairs, and office furniture applications where reliable mobility and load-bearing performance are essential requirements.
Swivel castor with wheel brake 55 mm
The Stylea is a swivel castor with wheel brake, suitable for bedside tables, furniture, media furniture and office furniture. The fitting is a blind hole for B10, which allows the castor to be inserted securely into the corresponding receptacle of the furniture component. The housing features a swiveling stem made of polyamide, enabling the wheel assembly to rotate about its vertical axis. The wheel has a diameter of 55 mm and is mounted on a plain bearing with spacer tube, with a tread of injected polyurethane and a body of polyamide. The overall height of the castor is 57 mm, which should be considered when planning installation clearances beneath the furniture. The static load capacity is 80 kg, and the dynamic load capacity is 40 kg at a speed of 3 km/h. Exceeding these values may compromise performance and safety.
Swivel castor with wheel brake 55 mm
The Stylea is a swivel castor with wheel brake, suited to applications in bedside tables, furniture, media furniture and office furniture. Its fitting is a blind hole for B10, which provides a defined connection point to the furniture base. The housing is a stem, swiveling, made of polyamide, which enables the wheel assembly to swivel about its vertical axis. The wheel has a diameter of 55 mm and is mounted on a plain bearing with spacer tube, while its tread material is identical with the wheel body, which is made of polyamide. The overall height of the complete castor is 57 mm, so the unit can be integrated where clearance is limited. The static load capacity is 80 kg, while the dynamic load capacity is 40 kg at a speed of 3 km/h, and these figures should be considered when selecting the castor for a specific application.
Swivel castor with wheel brake 55 mm
The Stylea is a swivel castor with wheel brake, suited to bedside tables, furniture, media furniture and office furniture. Its fitting is a blind hole for B10, providing a defined mounting point for secure attachment to the furniture. The housing uses a swivelling stem as its swivel bearing and is manufactured from polyamide, ensuring reliable rotation under everyday loads. The wheel has a diameter of 55 mm and is fitted with a plain bearing with spacer tube; the wheel body is made of polyamide, and the tread material is identical with the wheel body. The overall height of the castor is 57 mm, allowing compact installation beneath furniture. In terms of load specifications, the castor offers a static load capacity of 80 kg and a dynamic load capacity of 40 kg at a speed of 3 km/h.
linea
The Linea is a swivel castor with directional lock designed for mobile equipment and furniture in demanding environments. The fitting is a rectangular plate that provides a secure mounting interface to the base frame of the equipment. The housing is manufactured from polyamide and incorporates a precision ball bearing swivel bearing, which ensures smooth, low-effort rotation of the castor about its vertical axis. The wheel has a diameter of 100 mm and features a precision ball bearing for low rolling resistance, a body made of polyamide, and an injected polyurethane tread that offers quiet running and good floor protection. The overall height of the castor is 124 mm, measured from the mounting surface to the lowest point of the tread. The castor is rated for a static load capacity of 240 kg, while its dynamic load capacity is 120 kg at a travel speed of 3 km/h. The product is suited to applications such as anaesthesia carts, C-arms, CT scanners, MRI and X-ray systems, care beds, catering carts, dialysis carts, medication carts, nursing carts, patient lifters, surgery robots, ultrasound and ventilator equipment, and professional cleaning carts.
linea
Linea is a swivel castor with combined lock designed for demanding professional environments. The fitting is a bolt hole type, allowing the castor to be secured directly to the equipment frame by bolts. The housing is manufactured from polyamide and incorporates a precision ball bearing in the swivel section, ensuring smooth, low-effort rotation under load. The wheel has a diameter of 125 mm and features a polyurethane tread, which is injected to provide a consistent, durable running surface, while the wheel body is also made from polyamide and runs on a precision ball bearing for reliable, quiet operation. The overall height of the castor is 143 mm, which should be taken into account when planning mounting clearances and the ground-to-chassis height of the equipment. The castor is rated for a static load capacity of 260 kg per unit. Under dynamic conditions, at a travel speed of 3 km/h, it supports a load of 130 kg per unit. The castor is suited to a wide range of applications, including anaesthesia carts, C-arms, CT scanners, MRI and X-ray systems, care beds, dialysis carts, medication carts, surgery robots, ultrasound and ventilator equipment, as well as office furniture and professional cleaning carts.
linea
The Linea is a solid stem (round) fitting with a polyamide housing and a precision ball bearing swivel bearing. The tread material is injected polyurethane and the wheel has a precision ball bearing. The Linea has a wheel diameter of 125 mm and an overall height of 130 mm. At 3 km/h, it has a load capacity of 150 kg and a static load capacity of 450 kg. The polyamide housing features an integrated polyethylene cable catcher.
linea
The Linea is a swivel castor with combined lock, engineered for demanding professional and healthcare environments. The fitting is a bolt hole, which allows the castor to be secured directly to the equipment frame or chassis. The housing is manufactured from polyamide and incorporates a precision ball bearing that provides smooth, reliable swivel movement. The wheel has a diameter of 150 mm and runs on a precision ball bearing, with a polyamide body and an injected polyurethane tread. The overall height of the castor is 170 mm. The static load capacity is 260 kg, while the dynamic load capacity is 130 kg at a speed of 3 km/h. The castor is suited to anaesthesia carts, C-arms, CT scanners, MRI and X-ray systems, care beds, dialysis carts, patient lifters, surgery robots, ultrasound and ventilators, as well as office furniture and professional cleaning carts.
linea
The Linea is a swivel castor with combined lock designed for demanding healthcare and professional environments. The fitting is a rectangular plate, which provides a secure and stable mounting interface for the castor. The housing incorporates a precision ball bearing for the swivel action and is manufactured from polyamide, ensuring robust construction and reliable performance. The wheel has a diameter of 150 mm and features a precision ball bearing for smooth rolling, with a tread of injected polyurethane and a body of polyamide. The overall height of the castor is 175 mm. The static load capacity is 220 kg, while the dynamic load capacity is 110 kg at a speed of 3 km/h. Typical applications include anaesthesia carts, medical imaging systems, care beds, dialysis carts, patient lifters, ventilators and professional cleaning carts.
linea
The Linea swivel castor features a rectangular plate fitting for secure mounting applications. The housing is constructed from durable polyamide material and incorporates a precision ball bearing swivel mechanism for smooth directional changes. The wheel assembly consists of a polyamide body with an injected polyurethane tread, mounted on precision ball bearings for optimal rolling performance, with a diameter of 150 mm. The castor has an overall height of 170 mm, making it suitable for various equipment configurations. Load specifications include a dynamic capacity of 110 kg at speeds up to 3 km/h and a static load capacity of 220 kg, ensuring reliable performance in demanding environments such as medical equipment, hospital furniture, catering systems, office applications, and professional cleaning equipment.
linea
The Linea swivel castor features a rectangular plate fitting for secure mounting applications. The housing is constructed from durable polyamide material and incorporates a precision ball bearing swivel mechanism for smooth directional changes. The wheel assembly consists of a polyamide body with an injected polyurethane tread, mounted on precision ball bearings for optimal rolling performance, with a diameter of 150 mm. The castor has an overall height of 170 mm, making it suitable for various equipment configurations. Load specifications include a dynamic capacity of 110 kg at speeds up to 3 km/h and a static load capacity of 220 kg, ensuring reliable performance in demanding environments such as medical equipment, hospital furniture, catering systems, office applications, and professional cleaning equipment where mobility and durability are essential requirements.
linea
The Linea swivel castor features a rectangular plate with US-bolt hole spacing for secure mounting applications. The housing is constructed from durable polyamide material and incorporates a precision ball bearing swivel mechanism for smooth directional changes. The wheel assembly consists of a polyamide body with an injected polyurethane tread, mounted on precision ball bearings to ensure reliable rolling performance, with a diameter of 150 mm. The castor has an overall height of 170 mm, making it suitable for various equipment configurations. Load capacity specifications include a dynamic rating of 110 kg at speeds up to 3 km/h and a static load capacity of 220 kg, making it ideal for medical equipment, office furniture, catering systems, and professional cleaning applications where mobility and load-bearing performance are essential.

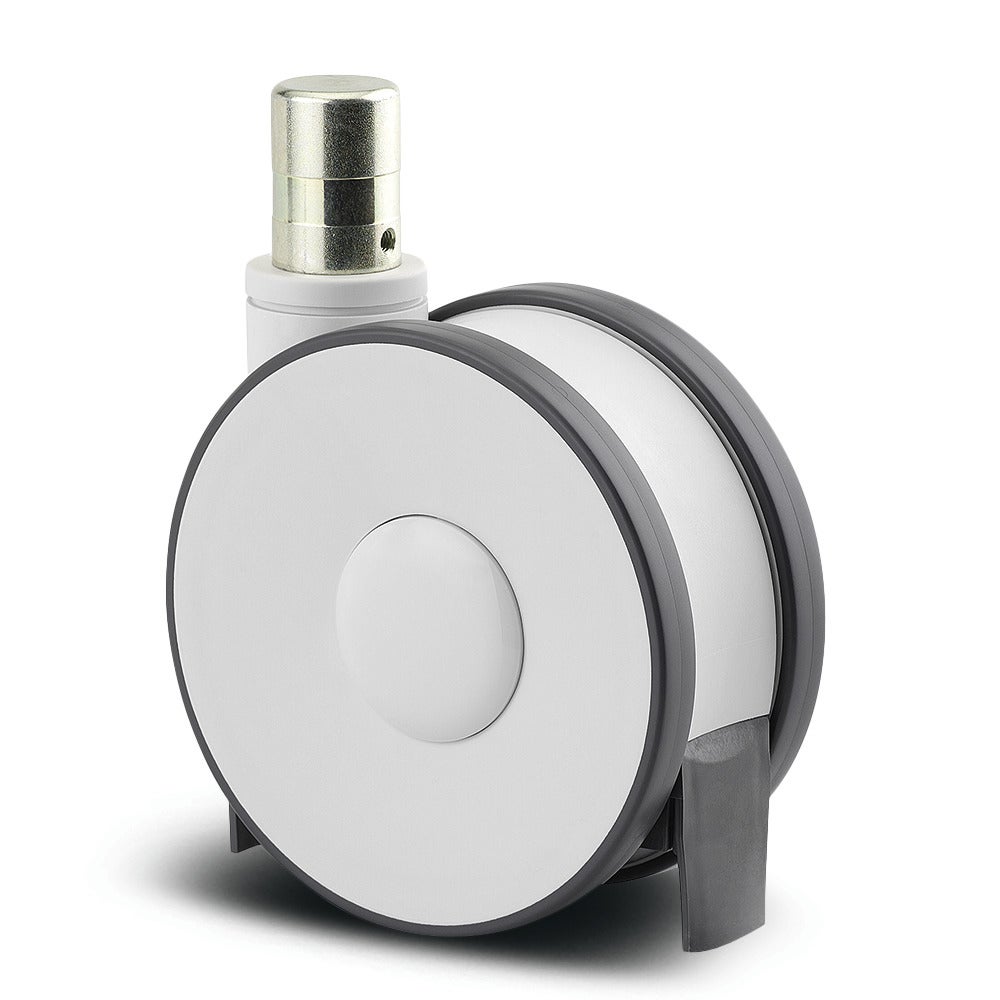

linea
The Linea swivel castor features a solid stem, round fitting for secure mounting applications. The housing is constructed from durable polyamide material and incorporates a precision ball bearing swivel bearing system for smooth directional changes and enhanced manoeuvrability. The wheel assembly consists of a polyamide body with an injected polyurethane tread, providing excellent floor protection and quiet operation, whilst the precision ball bearing ensures reliable rolling performance. With a wheel diameter of 150 mm and an overall height of 170 mm, this castor offers optimal mobility for various equipment. The unit provides a dynamic load capacity of 130 kg at speeds up to 3 km/h and a static load capacity of 260 kg, making it suitable for demanding applications including medical equipment, catering systems, office furniture, and professional cleaning carts.
linea
The Linea is a swivel castor with combined lock, designed for professional mobility applications. It is fitted with a rectangular plate fitting for secure attachment to the equipment frame. The housing is manufactured from polyamide and incorporates a precision ball bearing swivel bearing that supports controlled rotation. The wheel has a diameter of 150 mm and runs on a precision ball bearing, with an injection-moulded polyurethane tread and a polyamide body. The castor is intended to provide stable, controlled movement under demanding operating conditions. The overall height of the complete castor is 175 mm. The static load capacity is 260 kg, and the dynamic load capacity is 130 kg at a travel speed of 3 km/h. Typical applications include Anesthesia Carts, Care Beds, Dialysis Carts, Hospitals, Patient Lifter, Surgery Robots, Ultrasound and Ventilators.
linea
The Linea is a swivel castor with combined lock, designed for demanding mobile equipment. The fitting is a rectangular plate with US-bolt hole spacing, allowing secure and stable mounting to frames and chassis. The housing is manufactured from polyamide and incorporates a precision ball bearing swivel, ensuring smooth and precise steering under load. The wheel has a diameter of 150 mm and is fitted with a precision ball bearing for low rolling resistance, while its tread is made of injected polyurethane and its body of polyamide. The overall height of the castor is 175 mm, measured from the mounting plate to the lowest point of the tread. The static load capacity is 260 kg, and the dynamic load capacity is 130 kg at a speed of 3 km/h. Typical applications include anaesthesia carts, C-arms, CT scanners, MRI and X-ray systems, care beds, dialysis carts and medication carts.
linea
The Linea is a swivel castor with combined lock, engineered for demanding mobile equipment. The fitting is a solid stem, round, providing a robust connection to the carrying structure. The housing is manufactured from polyamide and incorporates a precision ball bearing swivel for smooth, low-effort rotation. The wheel has a diameter of 150 mm and is fitted with a precision ball bearing, its tread is injected polyurethane and its body is polyamide. The overall height of the castor is 175 mm, allowing it to be integrated into a wide range of equipment layouts. The static load capacity is 300 kg, while the dynamic load capacity is 150 kg at a speed of 3 km/h. These ratings define the castor's operating limits under static and rolling conditions. Typical applications include Anesthesia Carts, C-Arms, CT Scanners, MRI, X-Ray, Care Beds, Patient Lifter, Surgery Robots and Ultrasound.
