Linea
- Non-hazardous materials
- Tested quality
- Colour matching
Data sheets
Documents
- TENTE_Surgery_robots_flyer_EN.pdf
- TENTE_medical_furniture_product_brochure_EN_RZ_print.pdf
- Service_trolleys_with_Linea.pdf
- Solutions_for_the_automotive_industry.pdf
- Office_furniture_with_Linea.pdf
- TENTE_medical_devices_product_brochure_EN_RZ_print.pdf
- Medical_chairs_with_Linea.pdf
- Hospital_beds_with_Linea.pdf
- Kitchen_furniture_with_Linea.pdf
- Linea_clinic.pdf
- Linea_for_furniture.pdf
- Linea_for_healthcare.pdf
- Solutions_for_intralogistic.pdf
- Solutions_for_commercial_kitchens_and_food_logistics.pdf
- Solutions_for_the_furniture_industry.pdf
- Solutions_for_medical_beds_EN.pdf
Deutscher Designer Club
Deutscher Designer Club
Interzum Award
Interzum Award
IF Design Award
IF Design Award
Matching Products

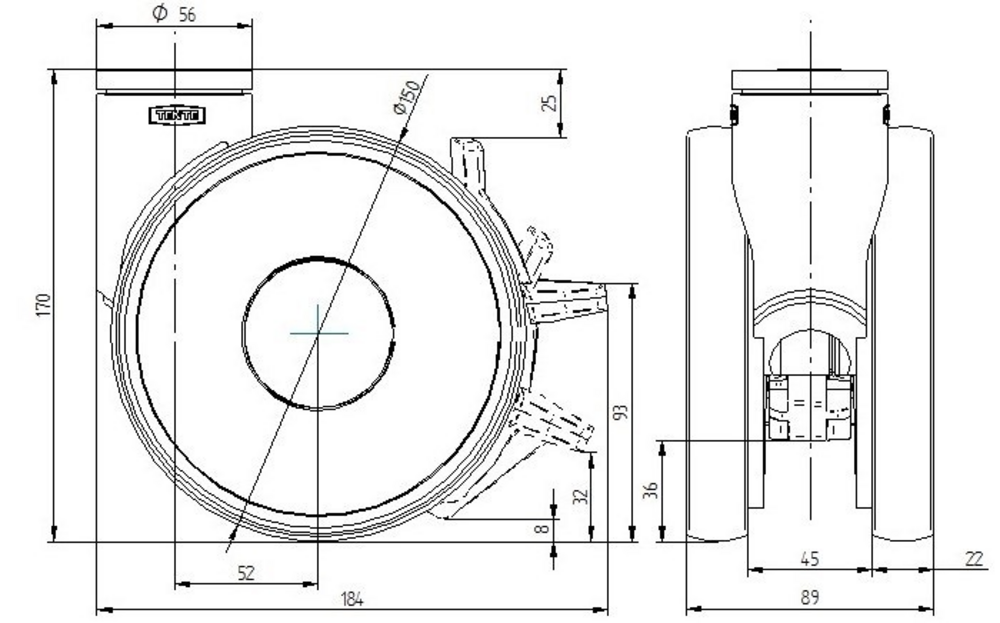

The Linea swivel castor features a bolt hole fitting for secure attachment to equipment. The housing is constructed from durable polyamide material and incorporates a precision ball bearing swivel mechanism for smooth directional changes. The wheel combines a polyamide body with an injected polyurethane tread, mounted on precision ball bearings for optimal rolling performance, with a diameter of 150 mm. The castor has an overall height of 170 mm, making it suitable for various mobile applications. Load specifications include a dynamic capacity of 130 kg at speeds up to 3 km/h and a static load capacity of 260 kg, ensuring reliable performance in demanding environments such as medical equipment, hospital furniture, catering systems, office furniture, and professional cleaning equipment where mobility and durability are essential requirements.
The Linea swivel castor with total lock is a precision-engineered mobility solution designed for demanding healthcare and professional environments, featuring a bolt hole fitting that ensures secure and reliable installation on a wide range of equipment and furniture. The housing is constructed from durable polyamide material and incorporates a precision ball bearing in the swivel mechanism, enabling smooth 360-degree rotation whilst maintaining exceptional stability and control. The wheel assembly comprises a 150 mm diameter wheel with a polyamide body and injected polyurethane tread, paired with a precision ball bearing that delivers smooth rolling performance and extended operational life. With an overall height of 170 mm, the castor provides optimal manoeuvrability and ergonomic positioning for various applications. The load capacity specifications indicate a static load rating of 260 kg, ensuring robust performance under stationary conditions, whilst the dynamic load capacity reaches 130 kg at speeds up to 3 km/h, making it suitable for controlled movement in clinical and professional settings. This castor is ideally suited for deployment across diverse applications including anesthesia carts, C-arms and diagnostic imaging equipment such as CT scanners and MRI systems, care beds, catering carts, computers on wheels, dialysis carts, medication carts, nursing carts, patient lifters, recliners, surgery robots, treatment chairs, ultrasound systems, ventilators, and professional cleaning carts, delivering reliable performance in hospitals, nursing homes, and retirement facilities.
