linea_clinic
Linea clinic
EAN:
4031582412635
Product number:
5946UAC125R36-32S27 safety OH130
- Non-hazardous materials
- Tested quality
- Colour matching
The Linea clinic is a swivel castor with central, total lock designed for demanding healthcare environments including anesthesia...
Details
Custom or high volume? Request a quote now.

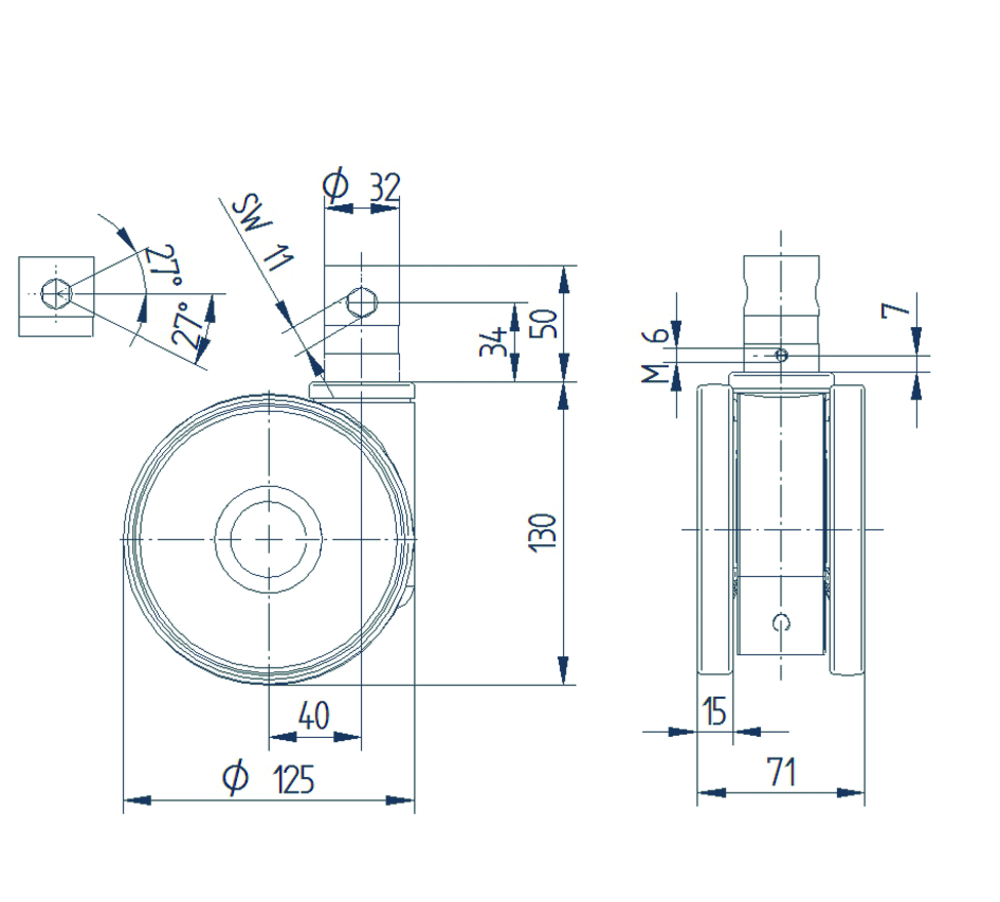

The Linea clinic is a swivel castor with central, total lock designed for demanding healthcare environments including anesthesia carts, C-arms, CT scanners, MRI systems, X-ray equipment, computers on wheels, dialysis carts, hospital beds, medication carts, nursing and retirement homes, nursing carts, stretchers, ultrasound systems, and ventilators. The fitting comprises a stem with cam hole for profile bars in short version, with the important caveat that washable beds must be sealed in the fitting area by the hospital bed manufacturer to ensure proper functionality and hygiene standards. The housing is constructed from polyamide material and incorporates a precision ball bearing for smooth swivel operation, ensuring reliable performance in high-frequency use environments typical of clinical settings. The wheel features a 125 mm diameter and is equipped with a precision ball bearing in stainless steel, combined with an injected polyurethane tread that provides excellent grip and durability on various floor surfaces whilst minimising noise during operation. The overall height of the castor measures 130 mm, making it suitable for integration into standard medical equipment platforms and mobile furniture systems. The load capacity specifications indicate a static load rating of 300 kg, whilst the dynamic load capacity reaches 150 kg at speeds up to 4 km/h and 150 kg at speeds up to 3 km/h, providing flexibility for different operational requirements and ensuring safe performance across diverse clinical applications and transport scenarios within healthcare facilities.
Roll performance
Movement noise
Attrition
Corrosion resistance
Awards
Article numbers
Core attributes
Fitting
Housing
Wheel
Handle Set
Deutscher Designer Club
Deutscher Designer Club
Interzum Award
Interzum Award
IF Design Award
IF Design Award
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Prevents unintended movement
Wheel lock for manual operation
User-friendly central lock
Simultaneous locking of more than one castor using a central actuation lever.
Colour matching
Colours can be adapted to match the product design
Award-winning design
Awarded with prestigious prizes by international juries.
Reduced risk of accidents
Extremely low height to reduce the risk of accidents when used under hospital beds.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Ergonomically friendly use
Wheels with optimised roll resistance to lighten the load for the user.
Certified safety
TÜV Süd certified performance standard.
Optimised manoeuvrability
Twin wheel castor with high manoeuvrability due to differential effect.
