Wheel 200 mm
Elastech
Order number:
199830559
EAN:
4031582322217
Product number:
SFP 200x50-Ø20 HL60 plus
- Non-hazardous materials
- Tested quality
- Non-marking movement
The Elastech Wheel is a precision castor wheel engineered for demanding industrial applications, featuring a 200 mm diameter wit...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.
Data sheets

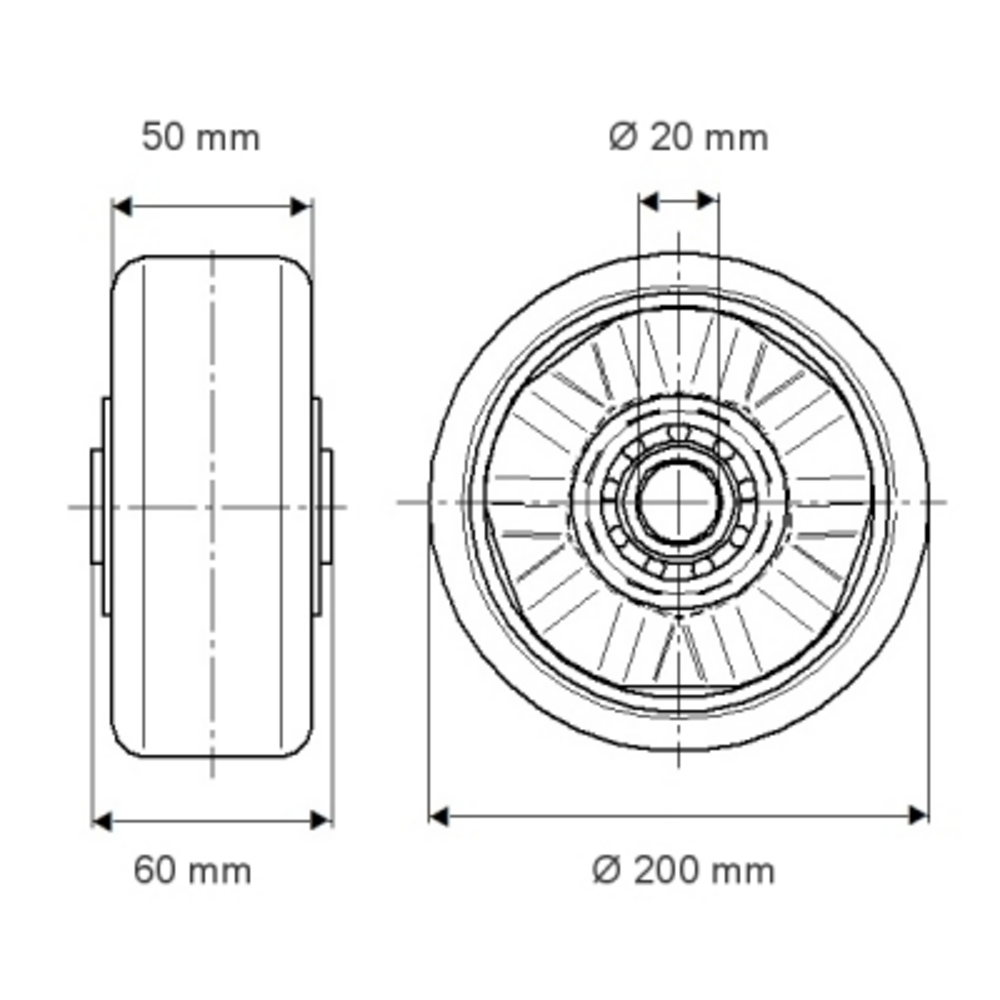

The Elastech Wheel is a precision castor wheel engineered for demanding industrial applications, featuring a 200 mm diameter with a 50 mm wide elastic tire, non-marking, vulcanized tread that ensures reliable performance on various surfaces. The wheel is constructed from sheet steel, heavy material for the body, providing robust structural integrity, and is equipped with a precision ball bearing for smooth rotation. The hub measures 60 mm in length, whilst the axle features a 20 mm hole diameter for secure mounting. This wheel demonstrates exceptional load-bearing capabilities, with a static load capacity of 1000 kg, and dynamic load capacities of 500 kg at 6 km/h or 600 kg at 4 km/h, making it suitable for both stationary and mobile castor applications requiring reliable performance under substantial loads.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Quiet rolling
Soft wheel versions for a quiet working environment.
Low-vibration transport
Extra soft wheels with good shock absorbing properties.
