Swivel castor with central, total lock 200 mm
Alpha central
Order number:
990064664
EAN:
4031582380514
Product number:
3476UFX200P67 OH240 brake-asm
- Non-hazardous materials
- Tested quality
- User-friendly central lock
The Alpha central is a swivel castor with central, total lock featuring a plate with central locking fitting for secure installa...
Details
Custom or high volume? Request a quote now.
Documents

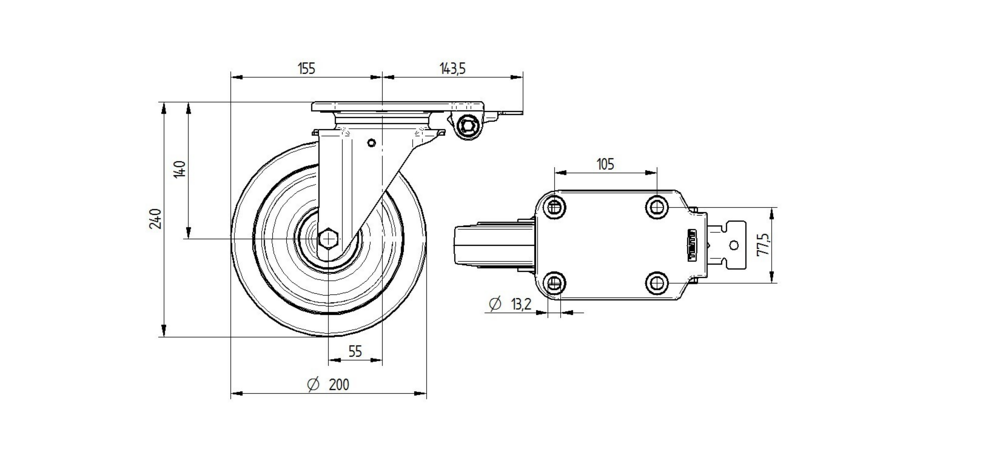

The Alpha central is a swivel castor with central, total lock featuring a plate with central locking fitting for secure installation. The housing is constructed from heavy steel sheet and incorporates two ball races for the swivel bearing mechanism, ensuring smooth directional movement and robust durability. The wheel comprises a polyamide body fitted with an elastic tyre that is non-marking and vulcanised, mounted on precision ball bearings that are sealed for maintenance-free operation. With a wheel diameter of 200 mm, the castor has an overall height of 240 mm. The load capacity specifications include dynamic loads of 300 kg at 4 km/h and 250 kg at 6 km/h, whilst the static load capacity reaches 600 kg, making it suitable for demanding industrial applications including automotive OEM, container construction, electronic systems, fire fighting technology, machine construction, logistics systems, production trolleys, roll cages, tool cabinets, waste disposal equipment, work benches, and transport equipment.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Fitting
Housing
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Solid housing
Made of pressed steel, zinc plated.
Prevents unintended movement
Wheel lock for manual operation
User-friendly central lock
Simultaneous locking of more than one castor using a central actuation lever.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Quiet rolling
Soft wheel versions for a quiet working environment.
Easy steering
Double ball bearing swivel head.
Low-vibration transport
Extra soft wheels with good shock absorbing properties.
Protective seal
Wheels with sealed bearings to protect against spray water and dirt.
