Swivel castor 125 mm
Alpha
EAN:
4031582381375
Product number:
3470POJ125P30-13
- Non-hazardous materials
- Tested quality
- Uninterrupted use
The Alpha is a heavy duty swivel castor with bolt hole fitting and a housing made of steel sheet. It has two ball races for the ...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.

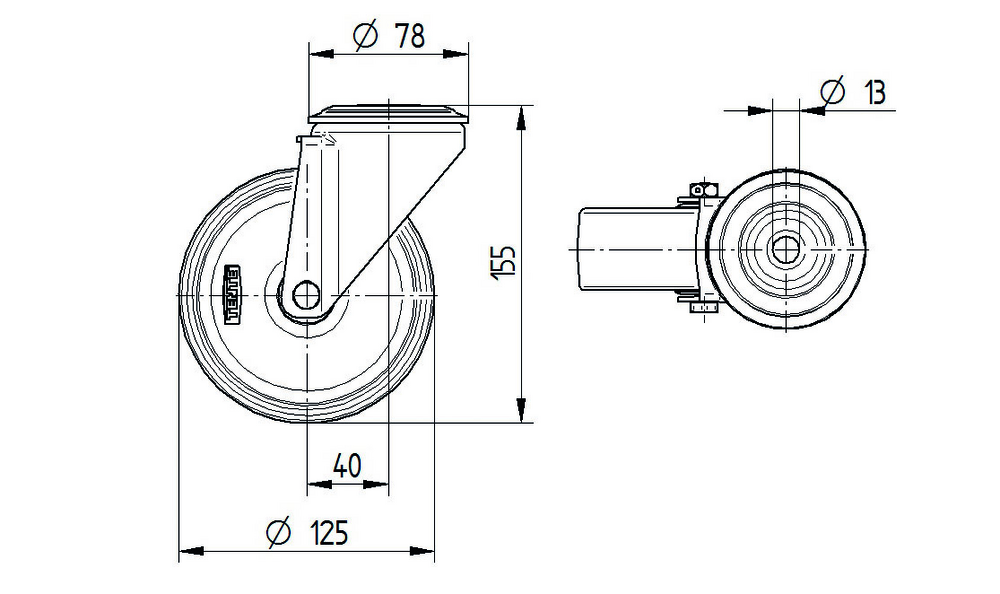

The Alpha is a heavy duty swivel castor with bolt hole fitting and a housing made of steel sheet. It has two ball races for the swivel bearing. The wheel body is made of polypropylene with a tread made of the same material. The wheel uses a roller bearing. The Alpha castor has a wheel diameter of 125 mm and an overall height of 155 mm. At 4 km/h it has a load capacity of 125 kg and a static load capacity of 250 kg.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Fitting
Housing
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Solid housing
Made of pressed steel, zinc plated.
Variable fitting options
Different fitting dimensions for a large range of applications.
Resource-conserving part replacement
Threaded axles allow effortless wheel change.
Uninterrupted use
Swivel bearing with dust ring for continuous, uninterrupted movement.
Low wear and tear wheels
Durable wheels with extremely low wear and tear properties.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Easy steering
Double ball bearing swivel head.
