Swivel castor 100 mm
Galea
EAN:
4031582399448
Product number:
5070PIO100P50
- Non-hazardous materials
- Tested quality
- Colour matching
The Galea swivel castor features a rectangular plate fitting for secure mounting applications. The housing is constructed from d...
Details
Custom or high volume? Request a quote now.
Data sheets
Documents

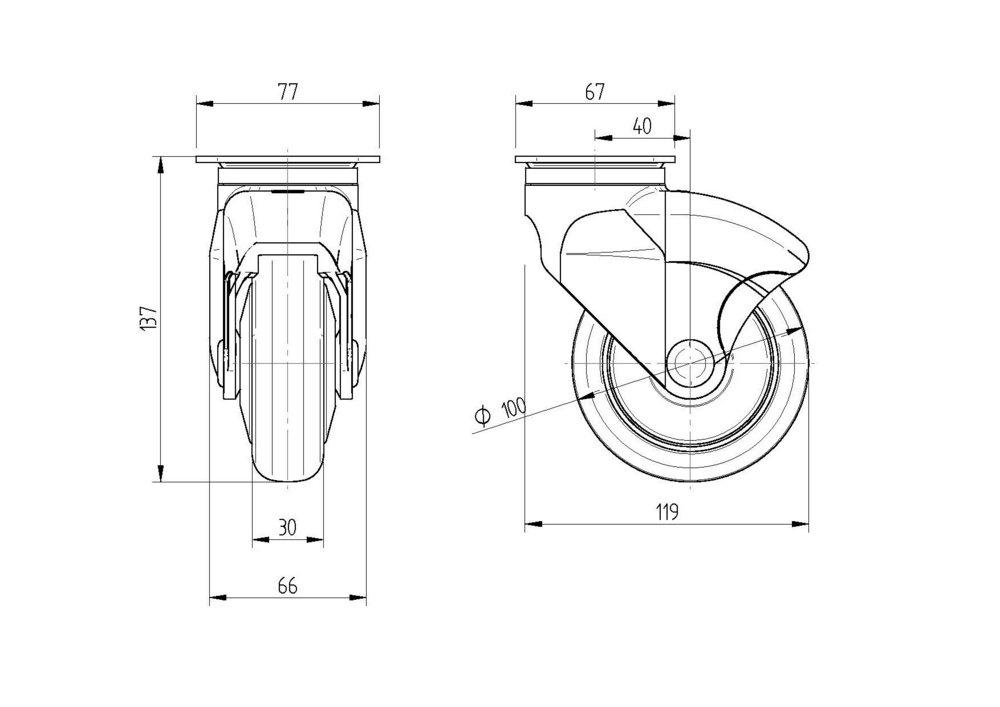

The Galea swivel castor features a rectangular plate fitting for secure mounting applications. The housing is constructed from durable polyamide material and incorporates two ball races in the swivel bearing mechanism to ensure smooth directional changes and reliable operation. The wheel assembly comprises a polypropylene body with solid rubber, non-marking tread material that provides excellent grip whilst protecting floor surfaces, supported by a plain bearing system for consistent rolling performance. With a wheel diameter of 100 mm, the castor has an overall height of 137 mm. The load capacity specifications include a dynamic load rating of 60 kg at speeds up to 3 km/h and a static load capacity of 120 kg. This castor is specifically designed for applications including care beds, catering carts and meal delivery systems, and shower chairs.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Fitting
Housing
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Colour matching
Colours can be adapted to match the product design
Painted surface
Gold, chrome or glossy coloured.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Easy steering
Double ball bearing swivel head.
Chemical-resistant components
Insensitive to many cleaning agents and chemical substances.
Conforming to standards
Applicable in the food industry (Lerpac-Approval).
