Linea
Linea
EAN:
4031582411720
Product number:
5947UAP150P30-13 ral7001
- Non-hazardous materials
- Tested quality
- Colour matching
The Linea swivel castor with total lock features a bolt hole fitting for secure mounting applications. The housing is constructe...
Details
Custom or high volume? Request a quote now.
Data sheets
Documents
- TENTE_Surgery_robots_flyer_EN.pdf
- TENTE_medical_furniture_product_brochure_EN_RZ_print.pdf
- Service_trolleys_with_Linea.pdf
- Hospital_beds_with_Linea.pdf
- Office_furniture_with_Linea.pdf
- Kitchen_furniture_with_Linea.pdf
- Linea_for_furniture.pdf
- Solutions_for_the_automotive_industry.pdf
- TENTE_medical_devices_product_brochure_EN_RZ_print.pdf
- Medical_chairs_with_Linea.pdf
- Solutions_for_commercial_kitchens_and_food_logistics.pdf
- Solutions_for_intralogistic.pdf
- Linea_for_healthcare.pdf
- Solutions_for_the_furniture_industry.pdf

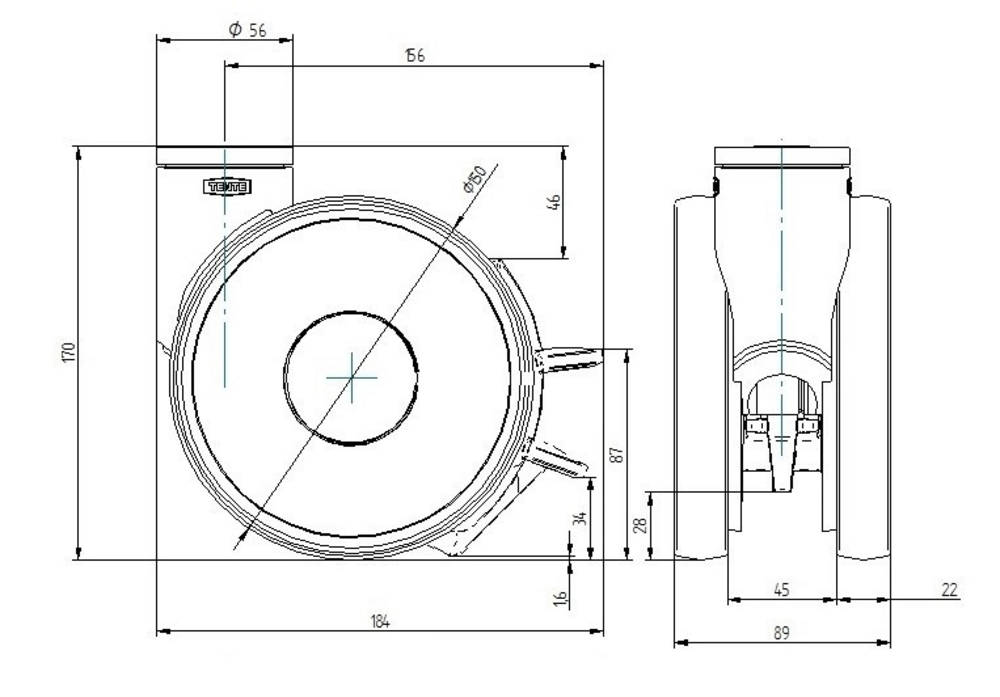

The Linea swivel castor with total lock features a bolt hole fitting for secure mounting applications. The housing is constructed from durable polyamide material and incorporates a precision ball bearing swivel bearing system for smooth directional changes and reliable operation. The wheel assembly consists of a polyamide body with an injected polyurethane tread, providing excellent floor protection and quiet operation, whilst the wheel bearing utilises precision ball bearings for enhanced durability and reduced rolling resistance. The wheel diameter measures 150mm and the overall height is 170mm. Load capacity specifications include a dynamic load rating of 150kg at speeds up to 3km/h and a static load capacity of 300kg, making this castor suitable for demanding applications including medical equipment, hospital furniture, catering systems, office furniture, and professional cleaning equipment.
Roll performance
Movement noise
Attrition
Corrosion resistance
Awards
Article numbers
Core attributes
Fitting
Housing
Wheel
Deutscher Designer Club
Deutscher Designer Club
Interzum Award
Interzum Award
IF Design Award
IF Design Award
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Prevents unintended movement
Wheel lock for manual operation
Secured stand
Total lock for simultaneously locking the wheel and swivel housing.
Colour matching
Colours can be adapted to match the product design
Award-winning design
Awarded with prestigious prizes by international juries.
User-friendly colour scheme
Green kickstop pedal for directional lock and red kickstop pedal for total lock.
Painted surface
Gold, chrome or glossy coloured.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Ergonomically friendly use
Wheels with optimised roll resistance to lighten the load for the user.
Chemical-resistant components
Insensitive to many cleaning agents and chemical substances.
Optimised manoeuvrability
Twin wheel castor with high manoeuvrability due to differential effect.
Reduced cleaning
Due to mainly smooth surfaces, the castors are quick and easy to clean.
Integrated cable protection
Integrated cable pusher to protect cables lying on the floor.
Individual branding
Engraved, casted or printed.
Fascinating picture prints
Entire wheel caps printable with almost every theme.
