linea_clinic
Linea clinic
EAN:
4031582360028
Product number:
5946UAC125R36-32S30OH150 4xM6
- Non-hazardous materials
- Tested quality
- Colour matching
The Linea clinic is a swivel castor with central, total lock, specifically engineered for demanding healthcare environments incl...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.
Data sheets

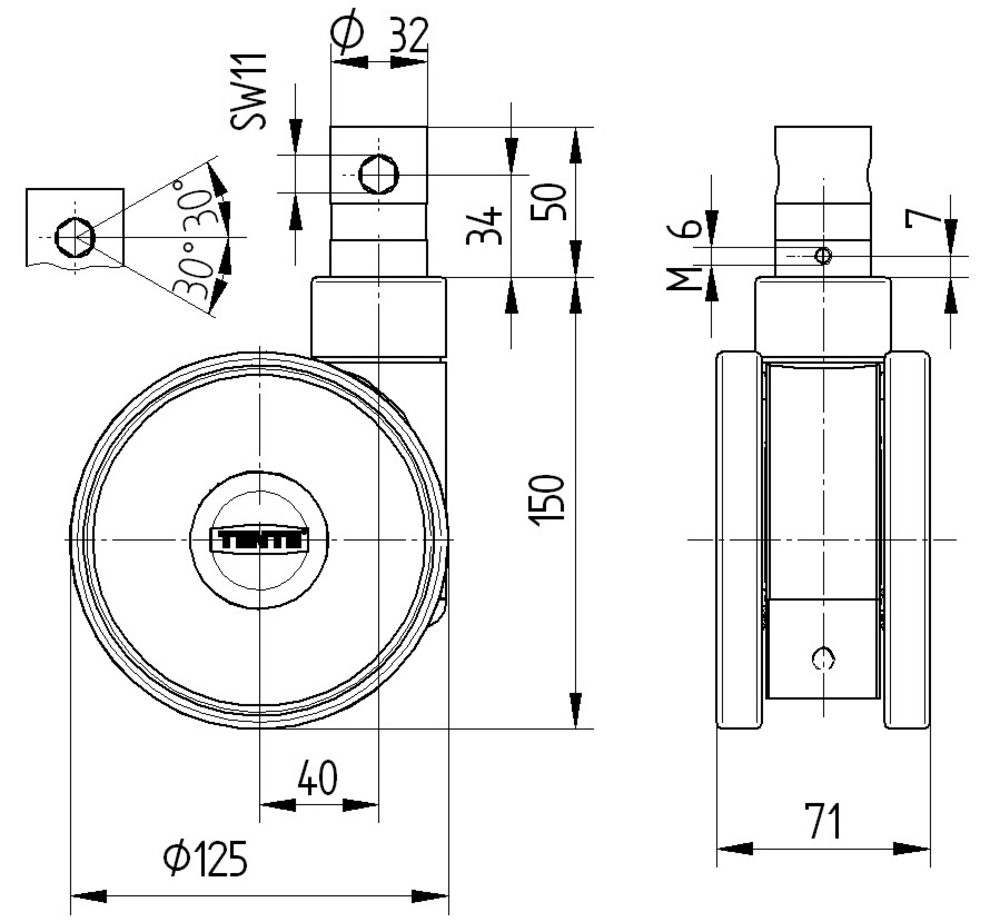

The Linea clinic is a swivel castor with central, total lock, specifically engineered for demanding healthcare environments including hospital beds, anesthesia carts, medication carts, nursing carts, dialysis carts, stretchers, and various medical imaging equipment such as C-Arms, CT scanners, MRI systems, and X-ray machines, as well as computers on wheels and ventilators in hospitals and nursing and retirement homes. The fitting comprises a stem with cam hole for profile bars in short version, with the important caveat that washable beds must be sealed in the fitting area by the hospital bed manufacturer to ensure optimal performance and hygiene compliance. The housing is constructed from polyamide material and incorporates a precision ball bearing for the swivel mechanism, ensuring smooth rotation and reliable operation under continuous use. The wheel features a 125 mm diameter with an injected polyurethane tread mounted on a polyamide body, supported by a precision stainless steel ball bearing that provides durability and corrosion resistance in sterile medical environments. The overall height of the castor is 150 mm, making it suitable for integration into various medical equipment platforms. The load capacity specifications indicate a static load rating of 300 kg, whilst the dynamic load capacity is rated at 150 kg at 4 km/h or alternatively 150 kg at 3 km/h, providing flexibility for different operational requirements and ensuring safe performance across a range of clinical applications and mobility scenarios.
Roll performance
Movement noise
Attrition
Corrosion resistance
Awards
Article numbers
Core attributes
Fitting
Housing
Wheel
Handle Set
Deutscher Designer Club
Deutscher Designer Club
Interzum Award
Interzum Award
IF Design Award
IF Design Award
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Prevents unintended movement
Wheel lock for manual operation
User-friendly central lock
Simultaneous locking of more than one castor using a central actuation lever.
Colour matching
Colours can be adapted to match the product design
Award-winning design
Awarded with prestigious prizes by international juries.
Reduced risk of accidents
Extremely low height to reduce the risk of accidents when used under hospital beds.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Ergonomically friendly use
Wheels with optimised roll resistance to lighten the load for the user.
Certified safety
TÜV Süd certified performance standard.
Optimised manoeuvrability
Twin wheel castor with high manoeuvrability due to differential effect.
