levina
Levina
EAN:
4031582382327
Product number:
5377XSP125P30-13 XL
- Non-hazardous materials
- Tested quality
- Colour matching
The Levina swivel castor with total lock is a precision-engineered mobility solution designed for demanding healthcare and comme...
Details
Custom or high volume? Request a quote now.
Data sheets
Documents
- TENTE_medical_furniture_product_brochure_EN_RZ_print.pdf
- Solutions_for_shopfitting_and_design.pdf
- Solutions_for_the_cleaning_industry.pdf
- TENTE_medical_devices_product_brochure_EN_RZ_print.pdf
- Solutions_for_commercial_kitchens_and_food_logistics.pdf
- TENTE_Levina_product_information_TRI_RZ_EN_web.pdf

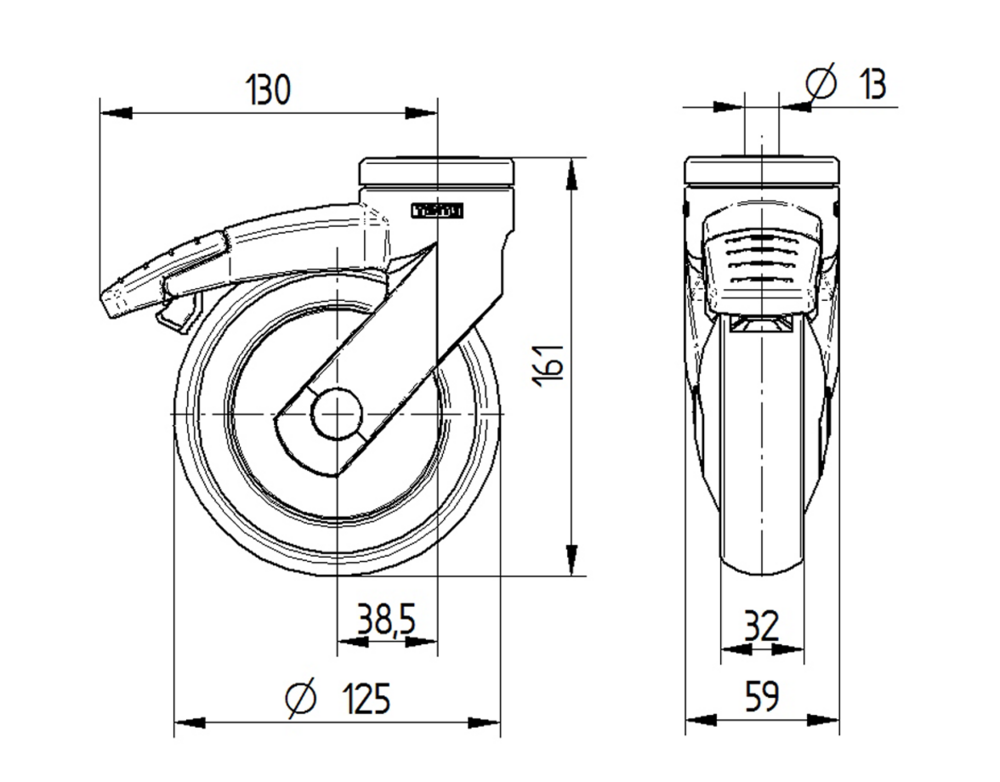

The Levina swivel castor with total lock is a precision-engineered mobility solution designed for demanding healthcare and commercial environments, featuring a bolt hole fitting that ensures secure and straightforward installation on a wide range of equipment and furniture. The housing is constructed from electric conductive polyamide and incorporates two ball races within the swivel bearing assembly, providing smooth rotational movement and exceptional durability under continuous operational demands. The wheel assembly comprises a 125 mm diameter polyurethane tread with injected, electric-conductive properties, mounted on a polyamide body with electric conductive characteristics and supported by a precision ball bearing that guarantees reliable performance and extended service life. With an overall height of 161 mm, this castor is dimensionally optimised for integration into compact and space-constrained applications whilst maintaining structural integrity. The load capacity specifications indicate a static load rating of 200 kg, ensuring robust performance under stationary conditions, whilst the dynamic load capacity of 100 kg at 3 km/h accommodates controlled movement in clinical and commercial settings. The Levina castor is ideally suited for deployment across anesthesia carts, C-arms, CT scanners, MRI and X-ray equipment, care beds, catering carts and meal delivery systems, computers on wheels, dialysis carts, medication carts, nursing and retirement home facilities, nursing carts, professional cleaning carts, shopping trolleys, store fixtures and displays, ultrasound equipment, ventilators, work benches, and tool cabinets, making it an exceptionally versatile solution for healthcare institutions and commercial operations requiring reliable mobility with electrostatic control properties.
Roll performance
Movement noise
Attrition
Corrosion resistance
Awards
Article numbers
Core attributes
Fitting
Housing
Wheel
Universal Design Award
Universal Design Award
Deutscher Designer Club
Deutscher Designer Club
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Prevents unintended movement
Wheel lock for manual operation
Secured stand
Total lock for simultaneously locking the wheel and swivel housing.
Variable fitting options
Different fitting dimensions for a large range of applications.
Colour matching
Colours can be adapted to match the product design
Award-winning design
Awarded with prestigious prizes by international juries.
Unbreakable construction
Extremely high shock absorbing.
User-friendly colour scheme
Green kickstop pedal for directional lock and red kickstop pedal for total lock.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Easy steering
Double ball bearing swivel head.
Ergonomically friendly use
Wheels with optimised roll resistance to lighten the load for the user.
Certified conductivity
Conductive version to protect users and electrical devices from electrostatic discharge.
Chemical-resistant components
Insensitive to many cleaning agents and chemical substances.
Ergonomic foot pedal
Easily accessible and extra long XL operating pedal for manual directional lock.
