levina
Levina
Order number:
990039498
EAN:
4031582404135
Product number:
5377PJP125P50 XL 7001/3000
- Non-hazardous materials
- Tested quality
- Colour matching
The Levina swivel castor with total lock is a precision-engineered mobility solution designed for demanding healthcare and comme...
Details
Custom or high volume? Request a quote now.
CAD files
You can download construction data for this product.
Data sheets
Documents
- TENTE_medical_furniture_product_brochure_EN_RZ_print.pdf
- Solutions_for_shopfitting_and_design.pdf
- Solutions_for_the_cleaning_industry.pdf
- TENTE_medical_devices_product_brochure_EN_RZ_print.pdf
- Solutions_for_commercial_kitchens_and_food_logistics.pdf
- TENTE_Levina_product_information_TRI_RZ_EN_web.pdf

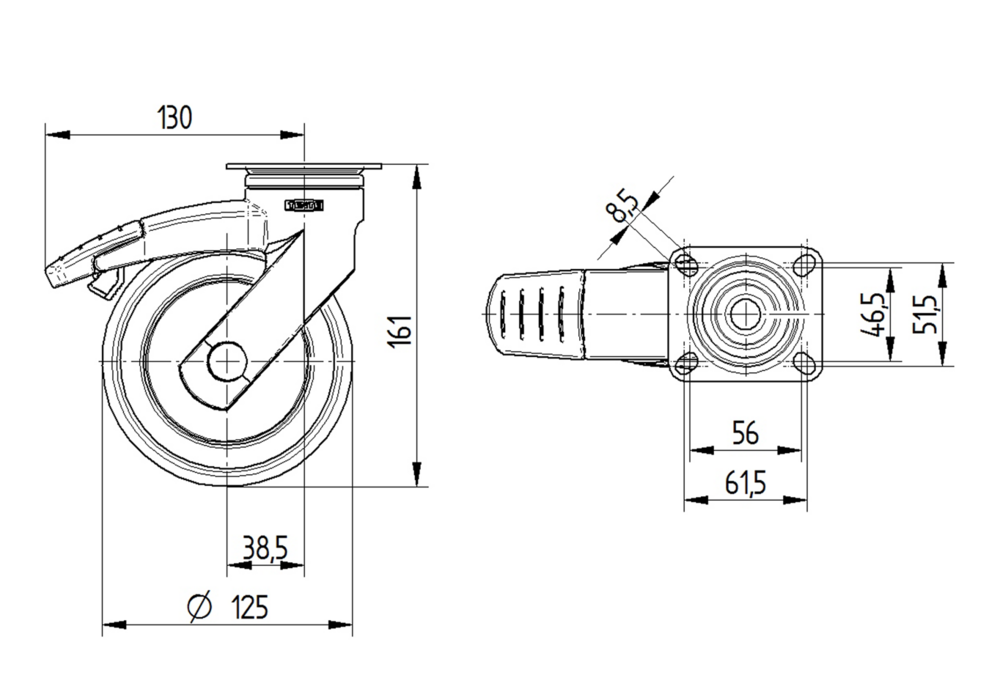

The Levina swivel castor with total lock is a precision-engineered mobility solution designed for demanding healthcare and commercial environments, featuring a rectangular plate fitting that ensures secure and straightforward installation onto equipment bases. The housing is constructed from durable polyamide material and incorporates two ball races within the swivel bearing assembly, enabling smooth 360-degree rotation whilst maintaining exceptional stability and control. The wheel measures 125 mm in diameter and is engineered with a thermoplastic rubber tread material bonded to a polypropylene body, delivering reliable grip and durability across varied floor surfaces whilst minimising noise and vibration during operation. The castor achieves an overall height of 161 mm, making it suitable for integration into compact and space-constrained applications without compromising manoeuvrability. The wheel is supported by a precision ball bearing that ensures smooth rolling performance and extended operational life. Load capacity specifications indicate a static load rating of 200 kg, permitting substantial weight distribution across multiple castors, whilst the dynamic load capacity reaches 100 kg at speeds up to 3 km/h, making it ideal for frequent repositioning of medical equipment, catering systems, and retail fixtures. This castor is particularly well-suited for deployment across anesthesia carts, C-arms, CT scanners, MRI systems, X-ray equipment, care beds, catering carts, computers on wheels, dialysis carts, medication carts, nursing carts, professional cleaning equipment, shopping trolleys, store fixtures, ultrasound systems, ventilators, work benches, and tool cabinets throughout hospitals, nursing homes, and retirement facilities.
Roll performance
Movement noise
Attrition
Corrosion resistance
Awards
Article numbers
Core attributes
Fitting
Housing
Wheel
Universal Design Award
Universal Design Award
Deutscher Designer Club
Deutscher Designer Club
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Prevents unintended movement
Wheel lock for manual operation
Secured stand
Total lock for simultaneously locking the wheel and swivel housing.
Variable fitting options
Different fitting dimensions for a large range of applications.
Colour matching
Colours can be adapted to match the product design
Award-winning design
Awarded with prestigious prizes by international juries.
Unbreakable construction
Extremely high shock absorbing.
User-friendly colour scheme
Green kickstop pedal for directional lock and red kickstop pedal for total lock.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Easy steering
Double ball bearing swivel head.
Chemical-resistant components
Insensitive to many cleaning agents and chemical substances.
Ergonomic foot pedal
Easily accessible and extra long XL operating pedal for manual directional lock.
