Forma
Forma
EAN:
4031582476279
Product number:
6944UFP150R26-28 S45 4xM8 grey
- Non-hazardous materials
- Tested quality
- User-friendly central lock
The Forma swivel castor with central, total or directional lock features a stem with cam hole for profile bars fitting system fo...
Details
Custom or high volume? Request a quote now.
Documents

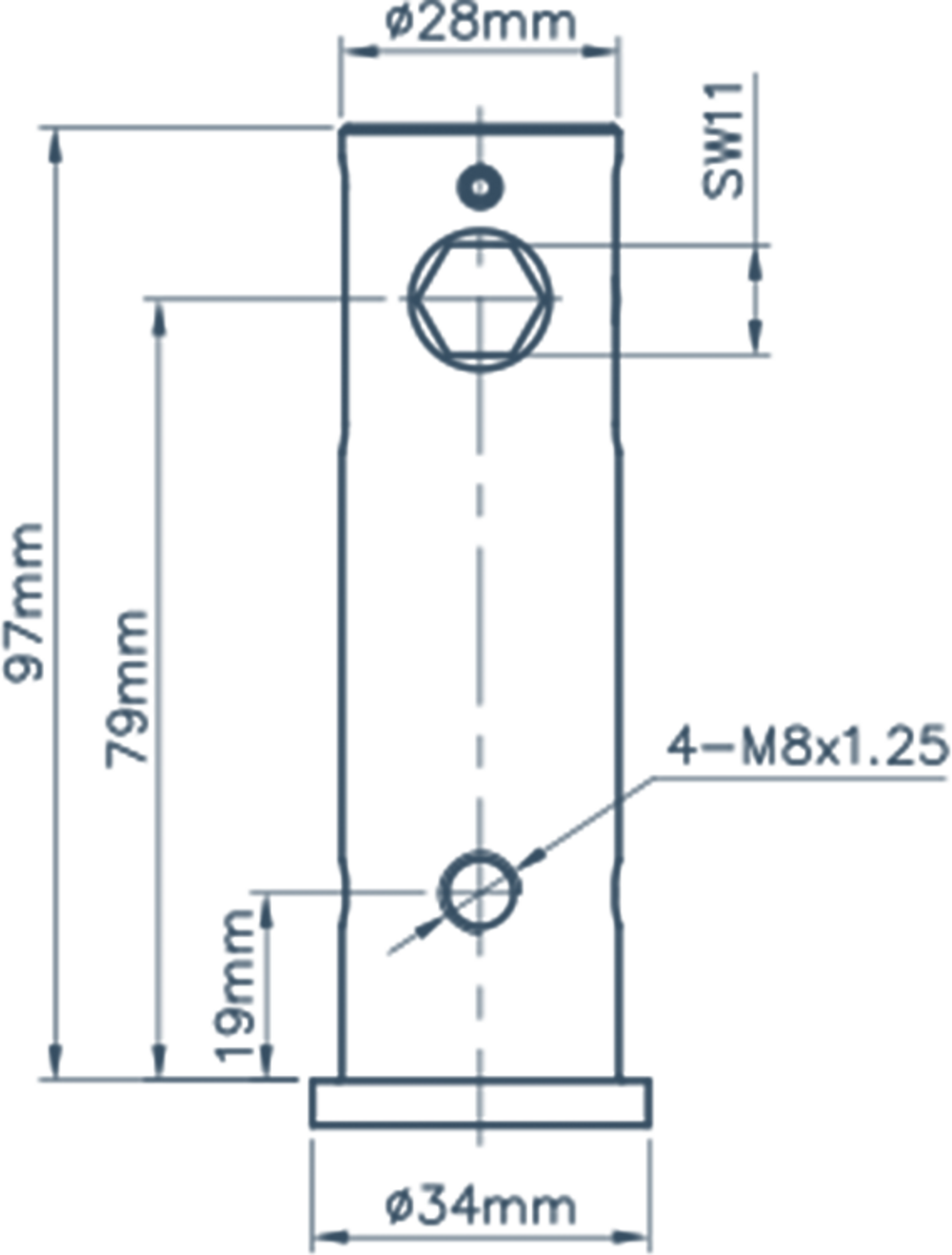

The Forma swivel castor with central, total or directional lock features a stem with cam hole for profile bars fitting system for secure attachment to profile bar structures. The housing is constructed from zinc-die-casting and aluminium materials, incorporating a precision ball bearing swivel mechanism for smooth directional movement. The wheel comprises a polyamide body fitted with an elastic tyre that is non-marking and vulcanised, mounted on precision ball bearings for optimal rolling performance, with a diameter of 150 mm. The castor has an overall height of 177 mm, providing appropriate clearance for various applications. Load specifications include a dynamic load capacity of 135 kg at speeds up to 3 km/h, making it suitable for demanding medical equipment including anaesthesia carts, C-arms, CT scanners, MRI, X-ray systems, medication carts, nursing carts, and ultrasound equipment.
Roll performance
Movement noise
Attrition
Corrosion resistance
Article numbers
Core attributes
Fitting
Housing
Wheel
Special Features
Non-hazardous materials
Complies with RoHS and REACH regulations. Does not contain polycyclic aromatic carbons or chromium (VI).
Tested quality
Tested in our own laboratory for compliance with European standards.
Solid housing
Made of pressed steel, zinc plated.
Prevents unintended movement
Wheel lock for manual operation
Secured stand
Total lock for simultaneously locking the wheel and swivel housing.
User-friendly central lock
Simultaneous locking of more than one castor using a central actuation lever.
Low-maintenance wheels
Thread guards for unobstructed operation with minimal cleaning effort.
Non-marking movement
Wheels with reduced abrasion and little cleaning requirement.
Quiet rolling
Soft wheel versions for a quiet working environment.
Low-vibration transport
Extra soft wheels with good shock absorbing properties.
Low maintenance materials
All metal components made of Aluminum or rust-free stainless steel.
